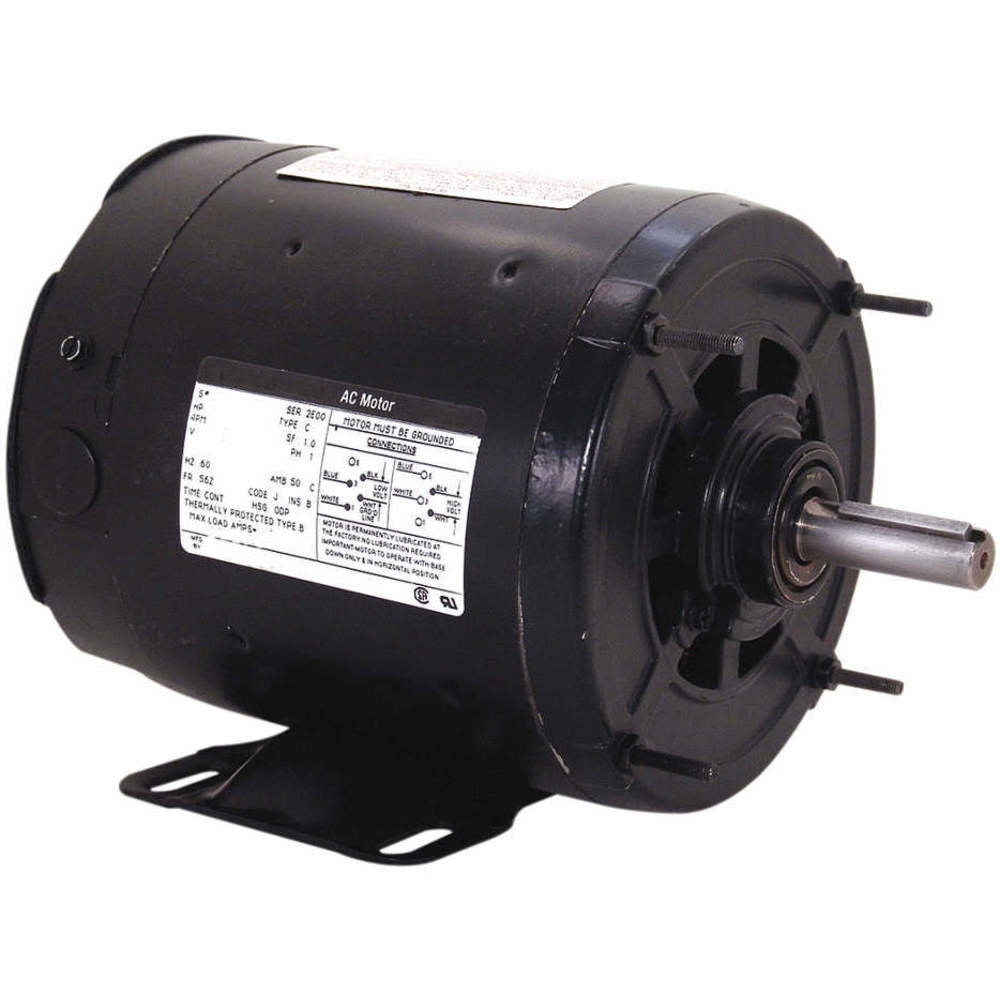

CENTURY OS2074 Motor Split Phase 3/4 Hp 1725 115v 56z Open
Item: AD9TVA
Model: OS2074
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹360.620000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Type | Ball |
|---|---|
| Body Dia. | 5 5/8" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 9.6A |
| Hp | 3/4 hp |
| Includes | 5/8" Shaft Adapter, Key |
| Ins. Class | Class B |
| Length Less Shaft | 8 3/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Belt Drive Fan/Blower |
|---|---|
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 67% |
| Number Of Speeds | 1 |
| Overall Length | 11 1/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 3/8" |
| Standard Logo | csa.png |
| Standards | CSA |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Product Details
Belt Drive Motor
Shipping Information
| height | 21.59 |
|---|---|
| length | 35.56 |
| width | 20.32 |
| hs code | 8501404040 |
|---|---|
| country of origin | MX |
| weight | 20.000000 |
