| Adjustable Increments | 12" |
|---|---|
| Beam Flange Width | 5" |
| Beam Height | 12" |
| Body Finish | Enamel |
| Caster Material | Steel |
| Caster Type | (4) Swivel |
| Color | Yellow |
| Finish | Paint |
| Height Adjustment | Adjustable Height |
| Height Adjustment Increments | 12" |
| Height Under Beam | 109" to 14 ft. |
| I Beam Flange Width | 5" |
| I Beam Height | 12" |
| Included Components | Hardware |
| Leg Connection Type | Clamp On |
| Material | Steel |
| Max. I Beam Height | 14 ft. |
| Max. Overall Height | 14 ft. |
| Maximum Height Under Beam | 14 ft. |
| Min. I Beam Height | 9.083 ft. |
| Minimum Height Under Beam | 109" |
|---|---|
| Minimum Overall Height | 9.1 ft. |
| Minimum Usable Span | 7 ft. |
| Mobility Under Load | Mobile |
| Number Of Casters | 4 |
| Overall Depth | 90" |
| Overall Height | 9.1 ft. to 14 ft. |
| Overall Span | 11.5 ft. |
| Rotating Legs | Yes |
| Span Adjustability | Adjustable Span |
| Standards | Aisc, Cmaa, Osha |
| Support Width | 7.5 ft. |
| Tonnage - Load Capacity | 5 ton. |
| Type | Adjustable Height, Heavy Duty, Steel |
| Usable I Beam Span Max. | 113" |
| Usable Span | 9.4 ft. |
| Wheel Dia. | 8" |
| Wheel Material | Steel |
| Wheel Width | 3" |

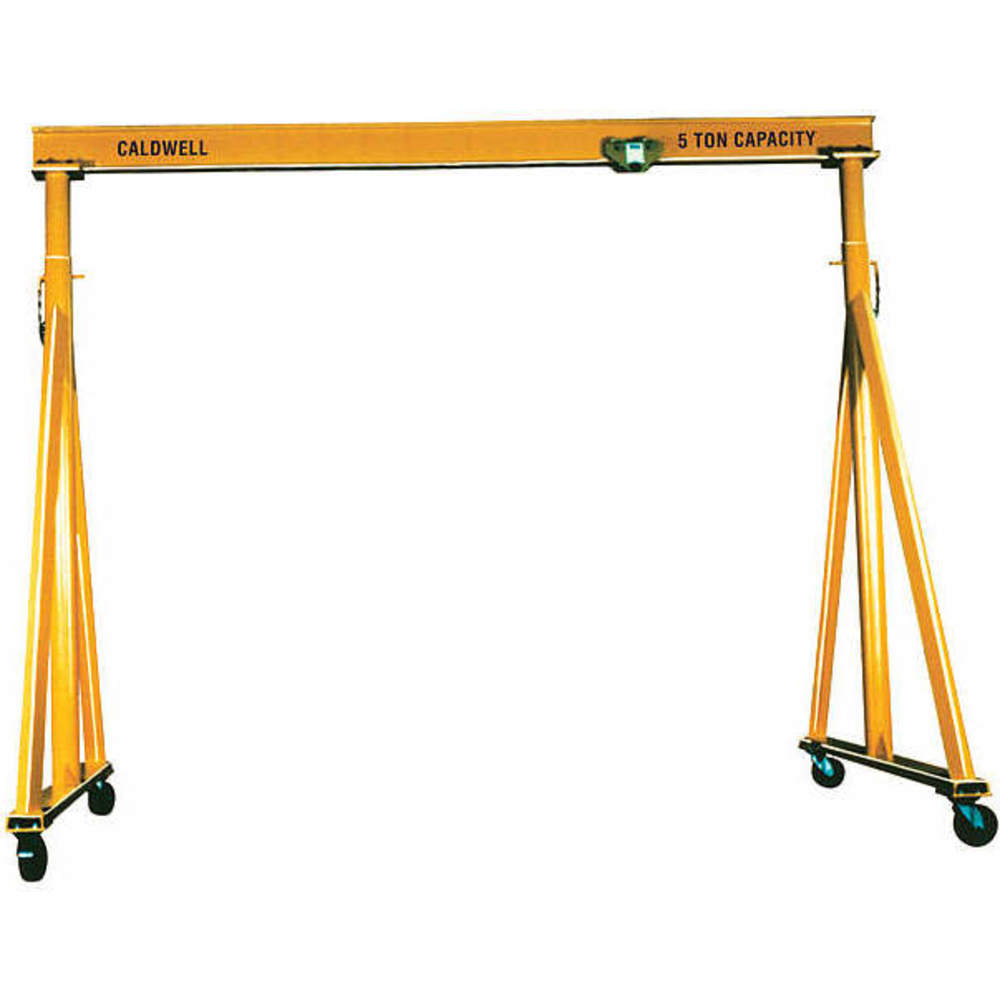

Portable Gantry Crane
| height | 71.12 |
|---|---|
| length | 2.54 |
| width | 228.6 |
| hs code | 8426190000 |
|---|---|
| country of origin | US |
| weight | 961.200000 |
| Style | Model | Span Adjustability | Height Under Beam | Overall Span | Usable Span | Beam Flange Width | Beam Height | Leg Connection Type | Load Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | K90-1-7/10 | Adjustable Span | 5 ft. to 7 ft. | 11.5 ft. | 10.4 ft. | 3.3" | 6" | Clamp On | 2000 lbs. | 8,293.21 | |
| A | K90-1-7/12 | Adjustable Span | 5 ft. to 7 ft. | 13.5 ft. | 12.4 ft. | 4" | 8" | Clamp On | 2000 lbs. | 8,392.06 | |
| A | K90-1-7/14 | Adjustable Span | 5 ft. to 7 ft. | 15.5 ft. | 14.4 ft. | 4" | 8" | Clamp On | 2000 lbs. | 8,636.55 | |
| A | K90-1-7/16 | Adjustable Span | 5 ft. to 7 ft. | 17.5 ft. | 16.4 ft. | 4.7" | 10" | Clamp On | 2000 lbs. | 7,765.01 | |
| A | K90-1-7/20 | Fixed Span | 5 ft. to 7 ft. | 21.3 ft. | 19.6 ft. | 4.7" | 10" | Bolt On | 2000 lbs. | 6,822.20 | |
| A | K90-1-7/24 | Fixed Span | 5 ft. to 7 ft. | 25.3 ft. | 23.6 ft. | 5.3" | 12" | Bolt On | 2000 lbs. | 8,394.23 | |
| A | K90-1-9/10 | Adjustable Span | 6 ft. to 9 ft. | 11.5 ft. | 10.4 ft. | 3.3" | 6" | Clamp On | 2000 lbs. | 6,920.68 |
