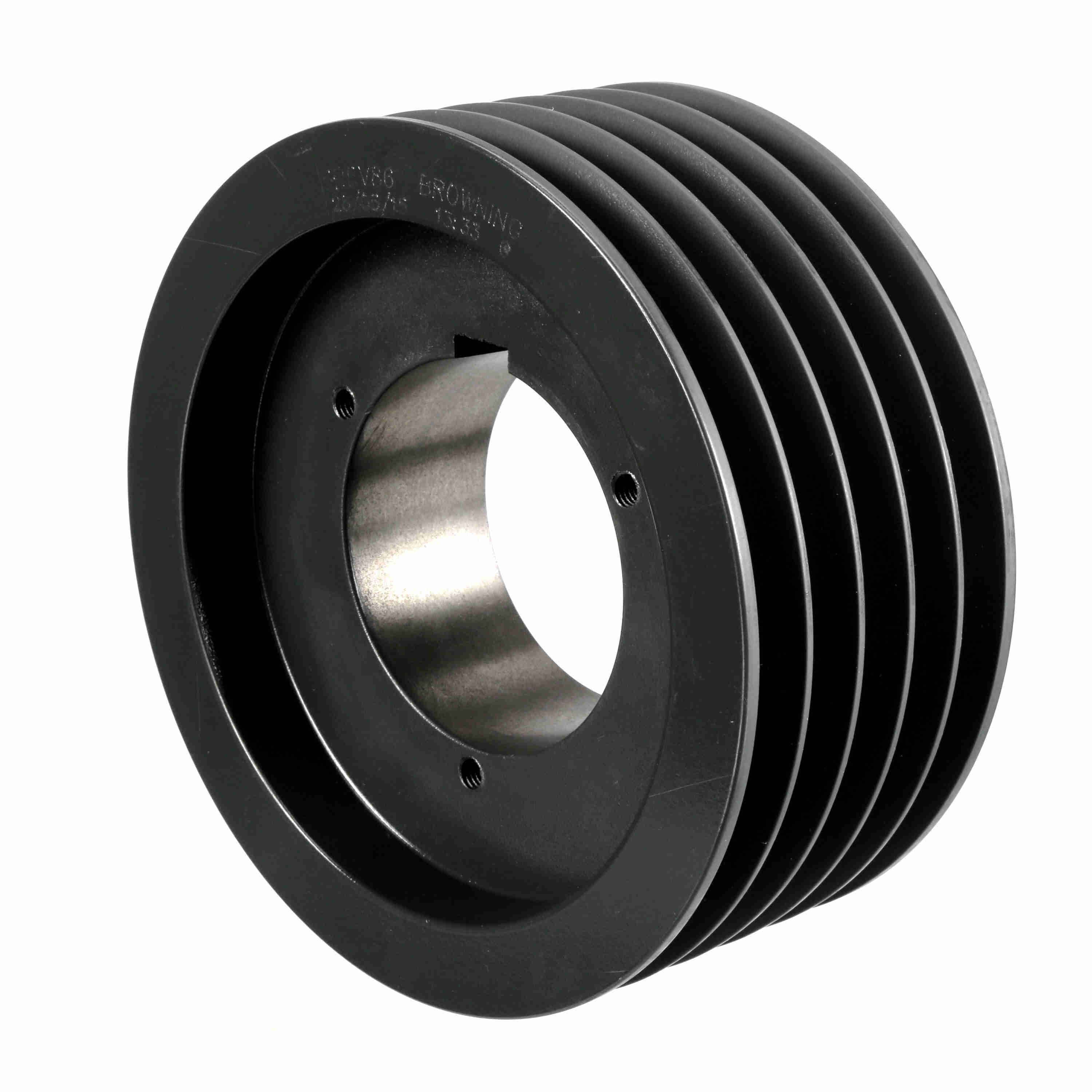

BROWNING 1969179 5B5V86 V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron, 8.88 in OD, 1-1/8 to 3-3/4 in Bore Dia, R1 Bushing Type
Item: BA4CAU
Model: 1969179
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Belt Series | A, B, 5V Series |
|---|---|
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Split Taper |
| Bushing Type | R1 |
| Face Width | 3 7/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 8.7" |
| Min. Pitch Dia. | 8 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
|---|---|
| Outside Dia. | 8 22/25" |
| Overall Length | 4 7/64" |
| Pitch Dia. (5v) | 8.7" |
| Pitch Dia. (a) | 8 2/5" |
| Pitch Dia. (b) | 8.9" |
| Series | B5V Series |
| Suitable For Use With | AB, 5V Cross Section V-Belts |
| System Of Measurement | Imperial |
Product Details
V-Belt Sheave
Shipping Information
| height | 22.56 |
|---|---|
| length | 10.44 |
| width | 22.56 |
| country of origin | US |
|---|---|
| weight | 12.465000 |
Related Products
| Style | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 1969005 | 4 12/25" | 3/4" to 1 3/4" | 4 3/4" | Type 5 | Split Taper | Cast Iron | 3 7/8" | 353.38 | |
| B | 1969013 | 4 17/25" | 3/4" to 1 3/4" | 4 3/4" | Type 5 | Split Taper | Cast Iron | 3 7/8" | 331.53 | |
| C | 1969021 | 4 22/25" | 3/4" to 1 3/4" | 4 3/4" | Type 5 | Split Taper | Cast Iron | 3 7/8" | 283.87 | |
| D | 1969039 | 5 2/25" | 3/4" to 1 3/4" | 4 3/4" | Type 5 | Split Taper | Cast Iron | 3 7/8" | 283.92 | |
| E | 1969070 | 5 22/25" | 3/4" to 2 11/16" | 4 9/32" | Type 3 | Split Taper | Cast Iron | 3 7/8" | 514.34 | |
| F | 1969104 | 6 12/25" | 3/4" to 2 11/16" | 4 9/32" | Type 3 | Split Taper | Cast Iron | 3 7/8" | 453.37 | |
| G | 1969120 | 6 22/25" | 3/4" to 2 11/16" | 4 9/32" | Type 3 | Split Taper | Cast Iron | 3 7/8" | 469.91 |
