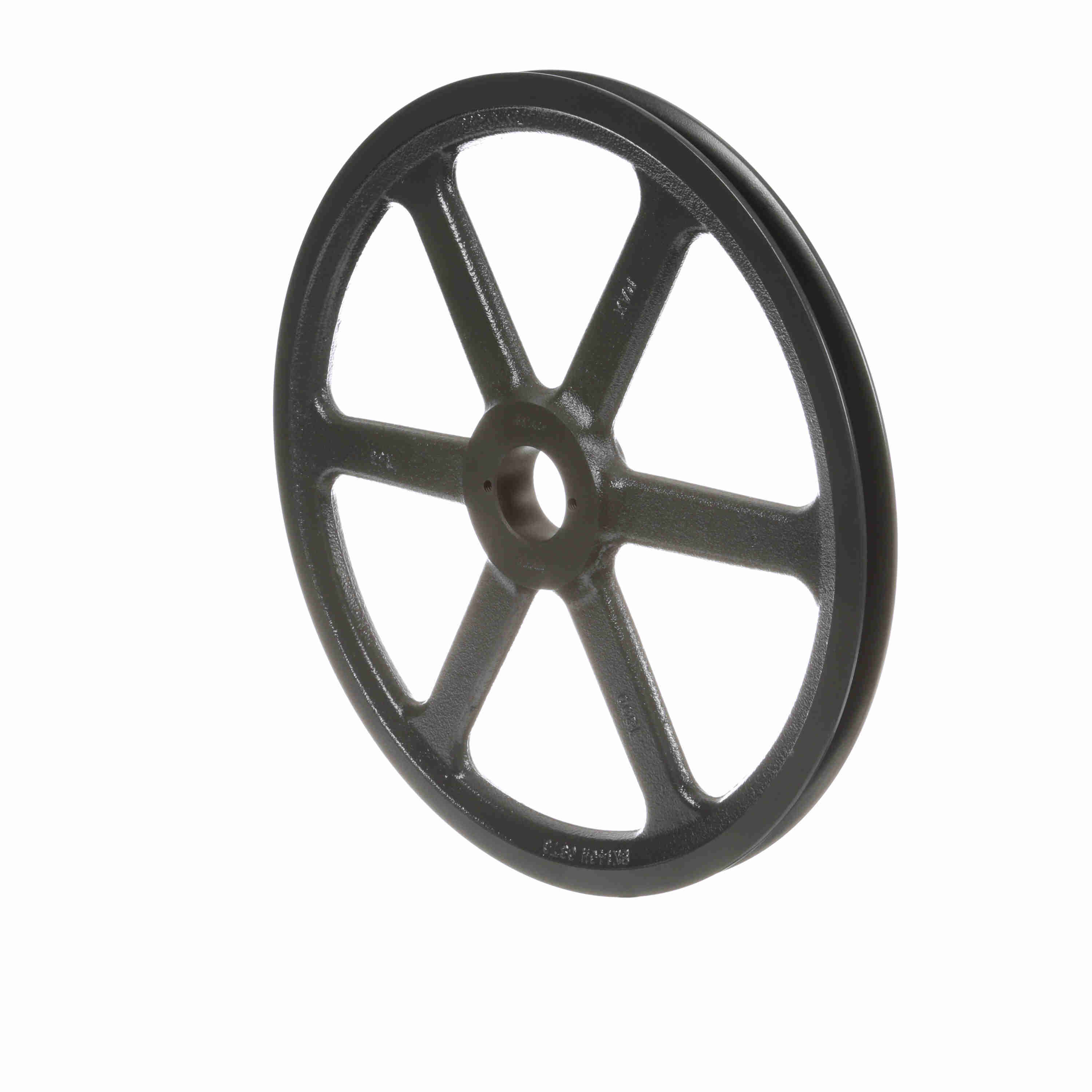

BROWNING 1042670 BK140H V-Belt Sheave, Bushed, 1 Groove, Cast Iron, 13-3/4 in OD, 3/8 to 1-1/2 in Bore Dia, 13.2 in A/13.7 in B Pitch Dia
Item: AZ8YJG
Model: 1042670
21 In Stock
Ships within 2 days via
£267.64/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Belt Series | 4L, A, 5L, B Series |
|---|---|
| Bore Dia. | 3/8" to 1 1/2" |
| Bore Type | Split Taper |
| Bushing Type | H |
| Color | Gray |
| Face Width | 7/8" |
| Finish | Painted |
| Hub Projection | 17/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 13 2/5" |
| Min. Pitch Dia. | 13" |
|---|---|
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 13 3/4" |
| Overall Length | 1 9/16" |
| Pitch Dia. (a) | 13 1/5" |
| Pitch Dia. (b) | 13.7" |
| Series | BK Series |
| Suitable For Use With | 4L/A And 5L/B Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 3 |
Product Details
V-Belt Sheave
Shipping Information
| height | 34.92 |
|---|---|
| length | 3.96 |
| width | 34.92 |
| country of origin | US |
|---|---|
| weight | 4.450500 |
Related Products
| Style | Model | Outside Dia. | Bore Dia. | Bore Type | Overall Length | Face Width | Type | Material | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1028869 | 6.45" | 1" | Finished | 1 9/32" | 7/8" | Type 3 | Cast Iron | - | 147.65 | |
| B | 1029156 | 8 3/4" | 15/16" | Finished | 1 17/32" | - | Type 3 | Cast Iron | - | 381.08 | |
| C | 2713824 | 3.35" | - | - | - | - | - | - | - | 136.57 | |
| D | 1042423 | 3.95" | 3/8" to 1 1/2" | Split Taper | 1 1/2" | 7/8" | Type 1 | Cast Iron | Gray | 72.67 | |
| E | 2713840 | 4 1/4" | - | - | - | - | - | - | - | 82.12 | |
| F | 2739027 | 5 3/4" | - | - | - | - | - | - | - | 105.15 | |
| G | 1042472 | 5 1/4" | 3/8" to 1 1/2" | Split Taper | 1 1/2" | 7/8" | Type 2 | Cast Iron | Gray | 87.17 |
