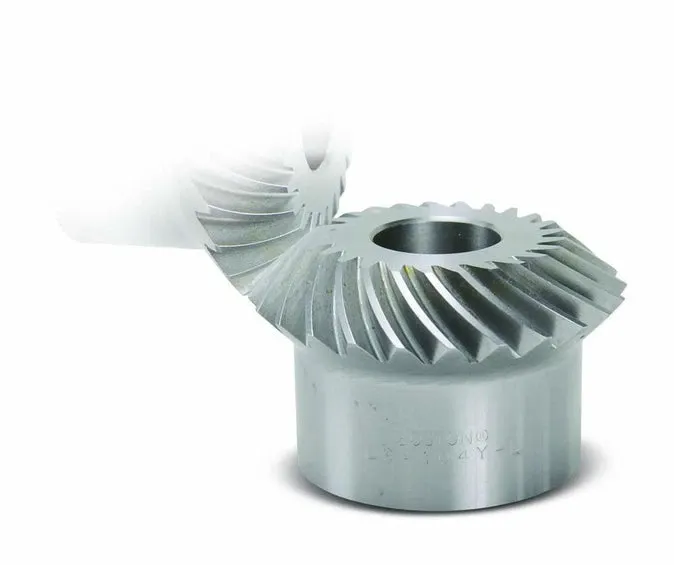

BOSTON GEAR LSA110Y L Teeth Left Hand Unhardened Steel Spiral Tooth Bevel Gear
Item: AK2YEC
Model: LSA110Y L
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£96.16/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Size | 0.375" |
|---|---|
| Diametral Pitch | 18 |
| Finish | Unardened |
| Hardened Teeth | Without Hardened Teeth |
| Hub Dia. | 3/4" |
| Keyway | Without Keyway, Without Setscrew |
| Kwy/setscrew/other | With KWY, Setscrew |
| Length Through Bore | 0.739" |
| Material | Steel |
| Mounting Distance | 1.062" |
| No. Of Teeth | 18 |
| outside dia. | 1.064" |
| Pitch Dia. | 1" |
| Pressure Angle | 20° |
| Ratio | 1:1 |
|---|---|
| Spiral Angle | 20° |
| Spiral Direction | Left Hand |
| Spiral Tooth | Pressure Angle |
| Straight/spiral Tooth | Spiral Tooth |
| torque @ 1200 rpm | 13.1 lbs.-in. |
| torque @ 1800 rpm | 12.2 lbs.-in. |
| Torque @ 1800 Rpm | 12.2 lbs./in. |
| torque @ 200 rpm | 12.6 lbs.-in. |
| torque @ 300 rpm | 14.7 lbs.-in. |
| torque @ 600 rpm | 14.7 lbs.-in. |
| torque @ 900 rpm | 14 lbs.-in. |
| Torque @ 900 Rpm | 14 lbs./in. |
Product Details
3/8"
Shipping Information
| country of origin | US |
|---|
| weight | 0.027400 |
|---|
