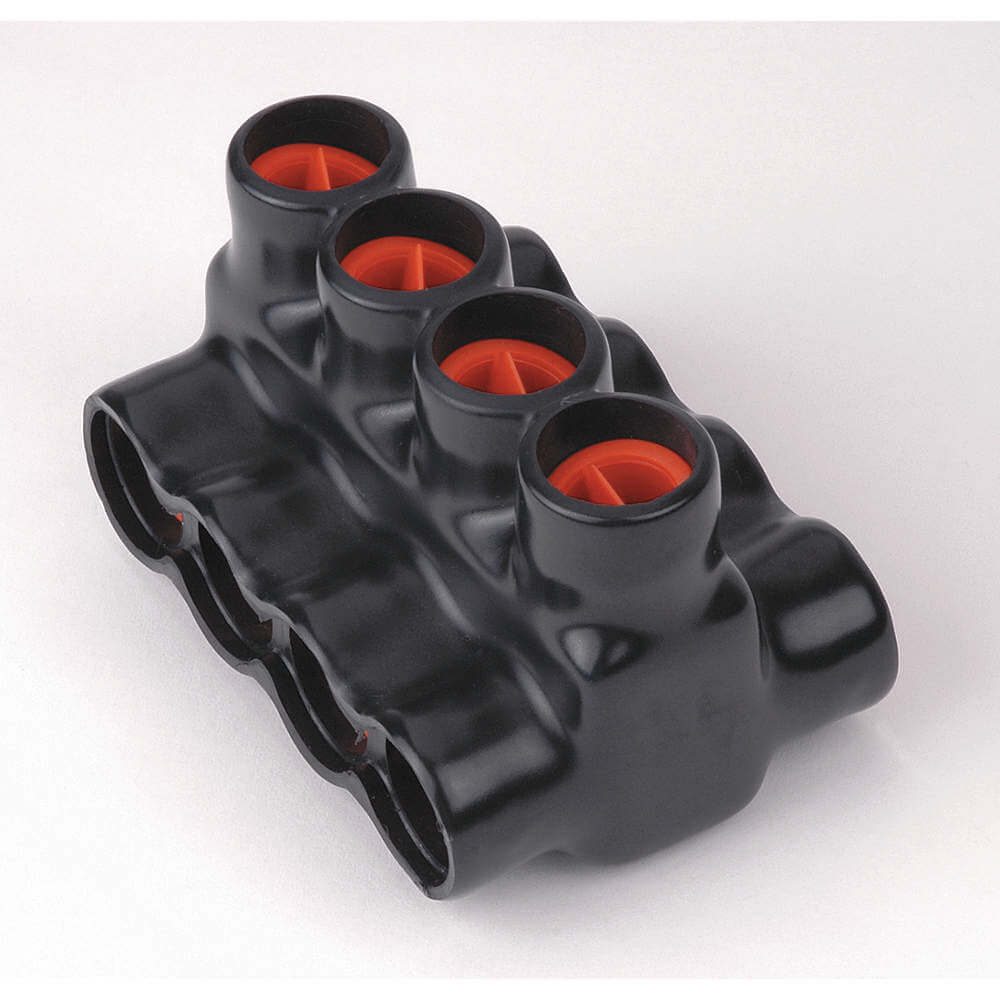

BLACKBURN (T&B) AMTD350104 Insulated Multitap Connector, 4.50 Inch L
Item: AB4LNP
Model: AMTD350104
24 In Stock
Ships within 2 days via
5.00% off
£180.47/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Color | Black |
|---|---|
| Compatible With Product Type | Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors |
| Direct Burial Rated | No |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size - Maximum | 350 kcmil |
| For Stranded Copper Wire Size - Minimum | 10 AWG |
| Head Style | Hex |
| Hex Size | 3/16" |
| Maximum Operating Temperature | 194°F |
|---|---|
| Maximum Voltage | 600V |
| Number Of Ports | 4 |
| Overall Length | 4.5" |
| Overall Width | 2 22/25" |
| Special Features | All Cable Entry Are Equipped With An Anti-Oxidation Compound, Eliminates Insulation Failures, Insulated, Reduces Outage Costs, Space Efficiencies |
| Standards | Csa 6591, Ul E9809 |
| Tap Shape | T |
Product Details
Multi Tap Connector
Shipping Information
| height | 6.86 |
|---|---|
| length | 11.43 |
| width | 7.62 |
| hs code | 8536904000 |
|---|---|
| country of origin | US |
| weight | 0.382500 |
Related Products
| Style | Model | Head Style | Overall Length | Number Of Ports | Hex Size | Color | Insulation Material | Min. Conductor Size | Max. Conductor Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AMT20 | Hex | 1.61" | 2 | 3/16" | Black | - | - | - | 55.30 | |
| B | AMT250 | Hex | 2.12" | 2 | 5/16" | Black | - | - | - | 125.17 | |
| C | AMTT20 | Hex | 1.63" | 2 | 3/16" | Black | - | - | - | 72.92 | |
| D | AMTT250 | Hex | 2.12" | 2 | 5/16" | Black | - | - | - | 133.36 | |
| E | AMTTC4 | Hex | 1.15" | 2 | 1/8" | Black | - | - | - | 51.18 | |
| F | AMTD250103 | Hex | 3" | 3 | 5/16" | Black | - | - | - | 149.82 | |
| G | AMTD50063 | Hex | 3.88" | 3 | 3/8" | Black | - | - | - | 210.15 |
