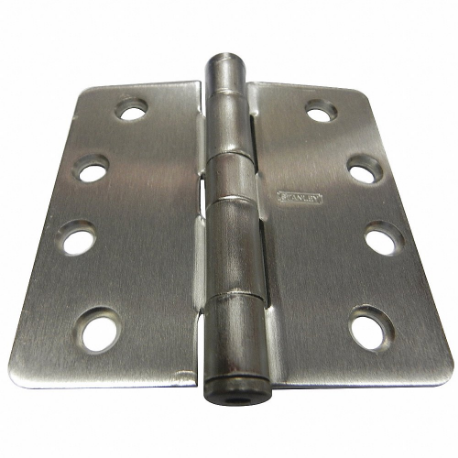

BEST RDF1791/4R4X4SWDRHINGE15STL Butt Hinge, 4 Holes per Leaf, 4 Inch Door Leaf Height, 1 1/2 Inch Door Leaf Width

Item: CU4HKF
Model: RDF1791/4R4X4SWDRHINGE15STL
24 In Stock

Ships within 2 days via

£28.82
5.00% off
£27.38/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bearing Type Plain
Corner Radius 1/4"
Corner Type Radius
Door Leaf Height 4"
Door Leaf Thickness 0.13"
Door Leaf Width 1 1/2"
Features For Use On Internal Or External Doors Without Door Closers, Hinges Can Be Furnished With Hospital Tips (HT), Template Screw Hole Location
Finish Satin Nickel Plated, Clear Coated
Frame Leaf Height 4"
Frame Leaf Thickness 0.13"
Frame Leaf Width 2"
Hardware Included
Hinge Number #1 Standard
Holes With
Holes Per Leaf 4
Includes Hardware Hardware Included
Ligature Resistant No
Load Capacity 75 lbs.
Material Steel
Mounting Full Mortise
Mounting Style Full Mortise
Number Of Holes Per Leaf 4
Number Of Wires 0
Orientation Non Handed
Overall Height 4"
Overall Knuckle Height 0.438"
Overall Width 4"
Pin Dia. 0.312"
Pin Diameter 5/16"
Pin Material Steel
Pin Type Removable
Range Of Motion 270°
Range Of Motion - Maximum 270°
Removable Pin Yes
Required Door Thickness 1 3/8" to 3"
Standards Ansi, Bhma

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 0.375700
