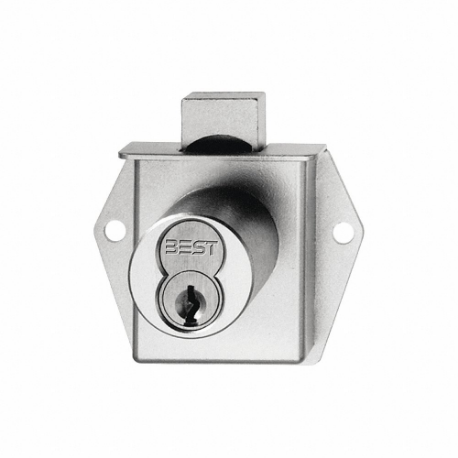

BEST 5L7RD2612 Interchangeable Core Cabinet and Drawer Dead Bolt Locks, 1 Inch Size Material Thick, Brass
Item: CN9KHV
Model: 5L7RD2612
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Body Color | Gold |
|---|---|
| Body Finish | Brass |
| Body Height | 2 1/8" |
| Body Shape | Diamond |
| Body Thickness | 1 5/8" |
| Body Width | 1 7/8" |
| Cabinet Lock Type | Interchangeable Core Cabinet And Drawer Dead Bolt Locks |
| Compatible Cylinder Brand | Best |
| Cylinder Dia. | 1 1/8" |
| Distance Between Mounting Holes | 2 3/16" |
| For Material | Metal |
| For Material Thickness | 1" |
| Includes | Spacer, Strike |
| Includes Interchangeable Core Lock Core | No |
| Includes Mounting Hardware | Yes |
| Interchangeable Core | Yes |
| Interchangeable Core Type | SFIC |
| Key Retaining | No |
| Keying | Coreless |
| Latch Bolt Projection | 0.281" |
| Latch Bolt Shape | Square |
| Lock Body Finish | Brass |
|---|---|
| Lock Body Material | Zinc Die Cast |
| Lock Body Shape | Diamond |
| Lock Orientation | Vertical |
| Max. Latching Distance | 3/4" |
| Mfr. Series | 5L Series |
| Mounting Hardware | Included |
| Mounting Hardware Included | Yes |
| Mounting Hardware Required | Yes |
| Mounting Hole Dia. | 3/16" |
| Mounting Style | Rim |
| Number Of Keys | 0 |
| Number Of Mounting Holes | 2 |
| Opens With | Key |
| Orientation | Vertical |
| Rear Projection | 3/4" |
| Security Level | General Security |
| Throw Length | 1/2" |
| Unlock Turn Direction | CW |
| Unlocking Radius | Quarter Turn |
Product Details
Lock
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 0.337500 |
Related Products
| Style | Model | For Material Thickness | Mounting Hole Dia. | Unlock Turn Direction | Key Retaining | Lock Body Material | Interchangeable Core Type | Lock Body Finish | Body Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5L7MD2612T | 1 1/2" | 1 1/8" | Clockwise | Yes | Zinc Die Cast | SFIC | - | Gold | 140.27 | |
| A | 5L7MD2606T | 1 1/2" | 1 1/8" | Clockwise | Yes | Zinc Die Cast | SFIC | Brass | Gold | 154.11 | |
| A | 5L7MD2626 | 1 1/2" | 1 1/8" | Clockwise | No | Zinc Die Cast | SFIC | Chrome Plated | Silver | 130.43 | |
| A | 5L7MD2606 | 1 1/2" | 1 1/8" | Clockwise | No | Zinc Die Cast | SFIC | Brass | Gold | 138.13 | |
| A | 5L7MD2626T | 1 1/2" | 1 1/8" | Clockwise | Yes | Zinc Die Cast | SFIC | Chrome Plated | Silver | 130.43 | |
| B | 5L7RD2626A450 | 1" | 1 1/8" | Clockwise | No | Zinc Die Cast | SFIC | Chrome Plated | Silver | 130.43 | |
| B | 5L7RD2625T | 1" | 1 1/8" | Clockwise | Yes | Zinc Die Cast | SFIC | Chrome Plated | Silver | 140.79 |
