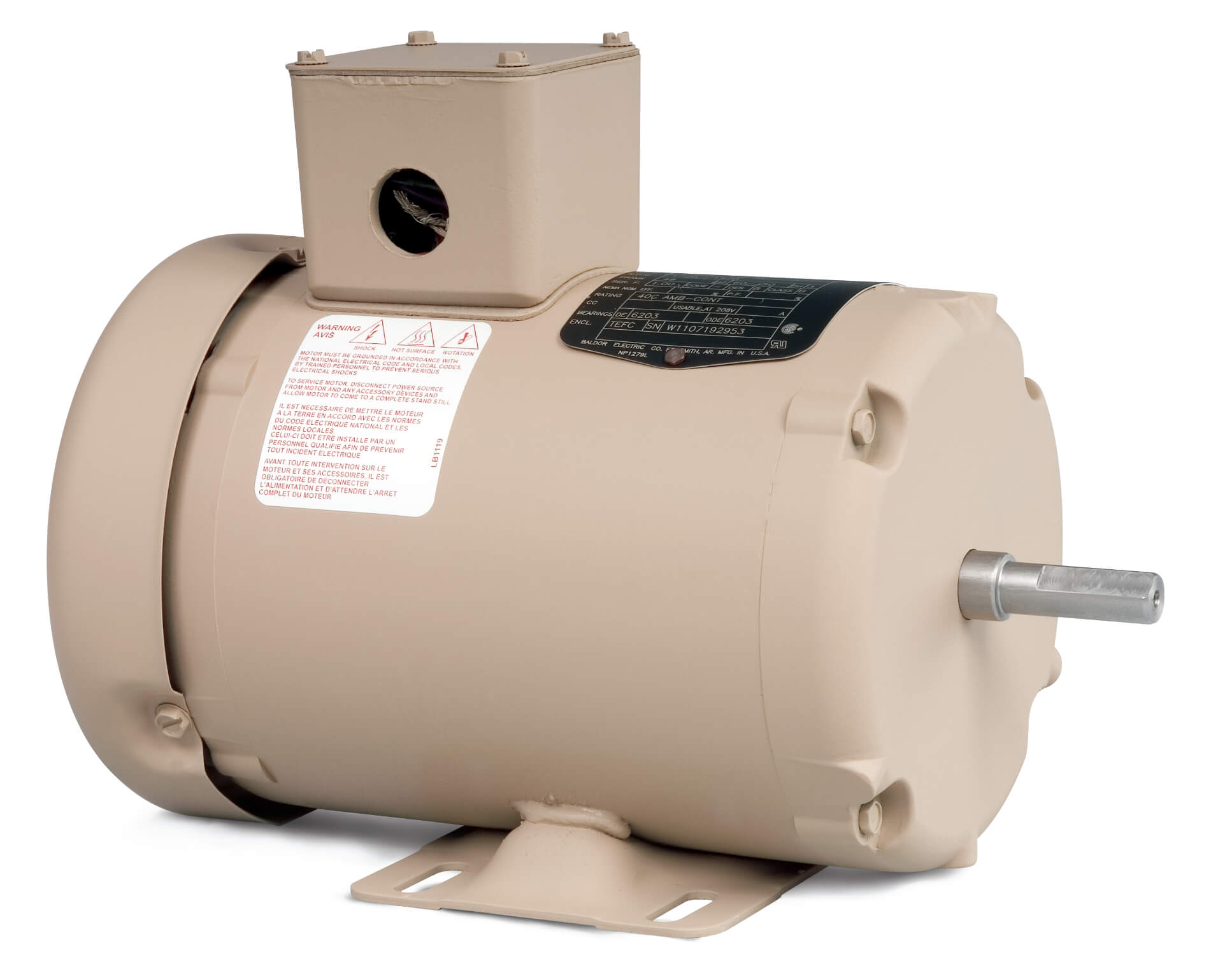

| Item | Definite Purpose Motor |
|---|---|
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 1.6/1.8/0.9/0.8A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Break-down Torque | 4.7 lbs.-ft. |
| Capacitor Required | No |
| Class | Stock |
| Conduit Box Position | F3 |
| Design Code | B |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Design | TEFC |
| Extended Thru-bolts | No |
| Finish | Painted |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 0.8A |
| Full Load Torque | 1 lbs.-ft. |
| Hp | 1/3 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Lead | 9#18 |
| Length Less Shaft | 9 1/4" |
| Line-line Res. @ 25° C | 49.1 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 3.75 lbs.-ft. |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Standard |
|---|---|
| Motor Shaft Rotation | Reversible |
| Motor Sub Application | General Purpose |
| Motor Type | Capacitor Start |
| Mounting Stud Pattern | 4.25" x 2.75" |
| Mounting Type | Rigid Base |
| Multiplier | K |
| Nameplate Rpm | 1725/1425 RPM |
| Nema/iec | NEMA |
| No Load Amps | 0.7A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Overall Length | 10.72" |
| Phase | 3 |
| Proprietary | No |
| Pull-up Torque | 3.35 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | X |
| Rpm | 1425/1725 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 1 1/2" |
| Shaft Rotation | Reversible |
| Standard Logo | CSA.png |
| Start Configuration | DOL |
| Starting Amps | 4.4A |
| Stud Length | 1 3/8" |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise @ Rated Load | 47°C |
| Thermal Protection | None |
| Type | 3413M |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 230/460/190/380V |
| Wire Size | 18 AWG |
| Motor Thermal Protection | None |
| xp class/group | None |
| height | 23.81 |
|---|---|
| length | 35.09 |
| width | 27.47 |
| hs code | 85015100 |
|---|---|
| country of origin | US |
| weight | 9.000000 |
