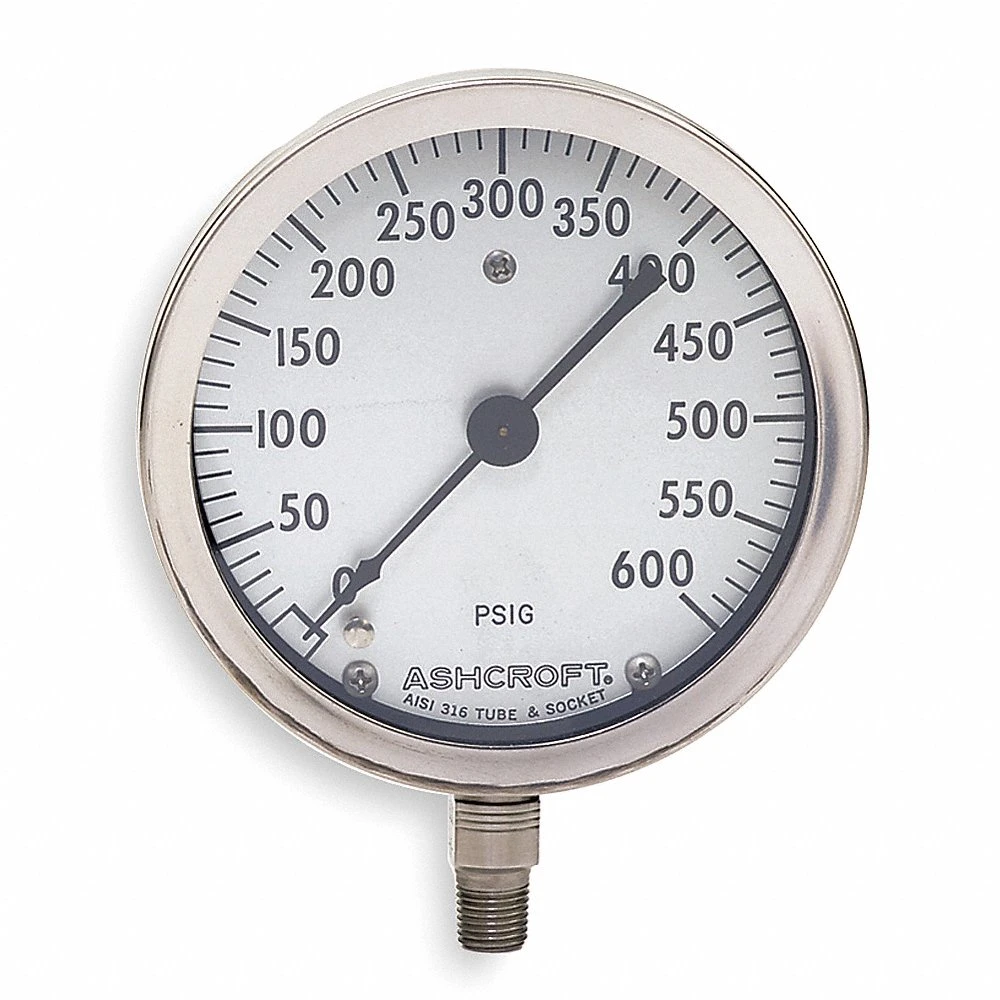

ASHCROFT 45-1009A 02L 600 PSI Industrial Pressure Gauge, Corrosion-Resistant Case, 0 To 600 Psi, 4 1/2 Inch Dial, Bottom
Item: CN8XYH
Model: 45-1009A 02L 600 PSI
19 In Stock
Ships within 2 days via
5.00% off
£421.51/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Accuracy | -1.6% to +1.6% |
|---|---|
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Ambient Temp. Range | -40°F to +150°F |
| Application | Test and Measurement |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Color | Silver |
| Compatible Process Media | Deionized Water |
| Connection Location | Lower |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade A Industrial |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Wetted Parts | Brass, Bronze |
| Graduations | 50 psi |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Mounting Hardware Included | No |
| Nominal Dial Size | 4 1/2" |
| Non-sparking | No |
|---|---|
| Panel-mountable | No |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 600 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 600 psi |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 psi to 600 psi |
| Scale Type | Single |
| Sensor Material | Bronze |
| Series | 1009 Series |
| Smallest Graduation | 10 psi |
| Socket Material | Brass |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Brass, Bronze |
| Accuracy Grade | Grade 1A |
| Ambient Operating Temp. Range | -40°F to +150°F |
| Application | Test, Measurement |
| Basic Gauge Lens Material | Plastic |
| Basic Gauge Wetted Parts | Brass, Bronze |
| Calibration Certificate | No |
| Case Liquid | None |
| Case Material Grade | Grade 304 |
| Connection Size | 1/4" |
| Connection Type | MNPT |
| dia. | 5 3/32" |
| Dial Material | Aluminum |
| Dial Size | 4 1/2" |
| Material | Stainless Steel |
| Material Grade | Grade 304 |
| Max. Pressure | 600 psi |
| Operating Temp. | -40°F to +150°F |
| Panel Mountable | No |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge |
| Primary Pressure Range | 0 to 600 |
| Primary Range Smallest Graduation | 10 |
| Primary Range Units | psi |
| Primary Range Values | 0 to 600 |
| Removable Bezel | No |
| Type | Pressure Gauge |
Product Details
Shipping Information
| Height | 13.56 |
|---|---|
| Length | 12.95 |
| Width | 12.95 |
| Country Of Origin | US |
|---|---|
| Weight | 0.720000 |
