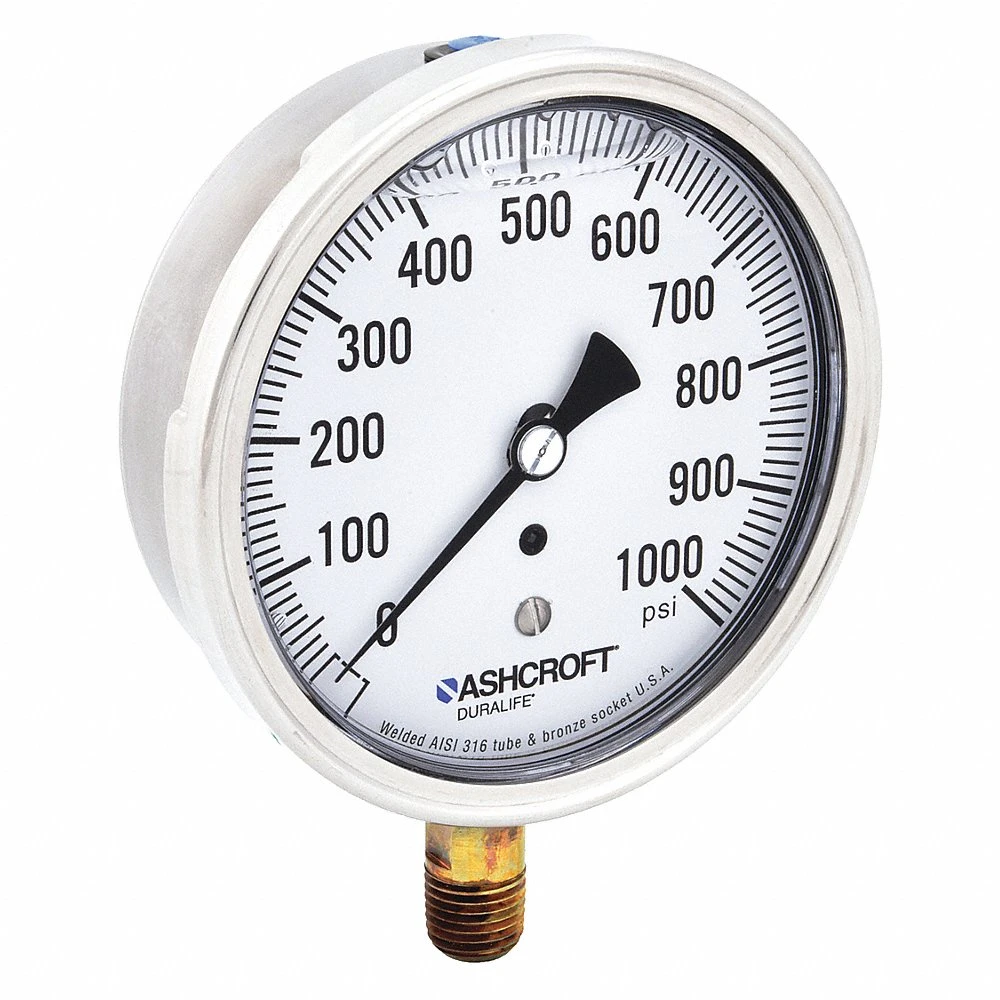

ASHCROFT 351009AWL02L1000# Industrial Pressure Gauge, Corrosion-Resistant Case, 0 to 1000 PSI, 3 1/2 in Dial, Bottom
Item: CN8XYL
Model: 351009AWL02L1000#
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹190.800000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Accuracy | -1.5% to +1.5% |
|---|---|
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -20°F to +150°F |
| Ambient Temp. Range | -20°F to +150°F |
| Application | General Purpose |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Silver |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Deionized Water |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade A Industrial |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | Yes |
| Manufacturer Warranty Length | 5 yrs. |
| Nominal Dial Size | 3 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 1000 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 1000 psi |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
|---|---|
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Series | 1009 Series |
| Socket Material | Aluminum Bronze |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Brass, Bronze |
| Accuracy Grade | Grade 1A |
| Ambient Operating Temp. Range | -20°F to 150°F |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Lens Material | Plastic |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Basic Gauge Wetted Parts | Brass, Bronze |
| Calibration Certificate | No |
| Case Liquid | Glycerin |
| Case Material Grade | Grade 304 |
| Color | Silver |
| Connection Location | Lower |
| Connection Size | 1/4" |
| Connection Type | MNPT |
| dia. | 3.89" |
| Dial Material | Aluminum |
| Dial Size | 3 1/2" |
| Filled With | Glycerin |
| Graduations | 100 psi |
| Liquid Filled | Yes |
| Material | Stainless Steel |
| Material Grade | Grade 304 |
| Max. Pressure | 1000 psi |
| Operating Temp. | -20°F to +150°F |
| Panel Mountable | No |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge |
| primary range no.ed graduations | 100 |
| Primary Range Smallest Graduation | 10 |
| Primary Range Units | psi |
| Primary Range Values | 0 to 1000 |
| Sensor Material | Bronze |
| Sensor Material Grade | Grade 316L |
| Smallest Graduation | 10 psi |
| Socket Material | Brass |
| Type | Pressure Gauge |
Product Details
Pressure Gauge
Shipping Information
| height | 10.52 |
|---|---|
| length | 9.88 |
| width | 9.88 |
| country of origin | US |
|---|---|
| weight | 0.405000 |
