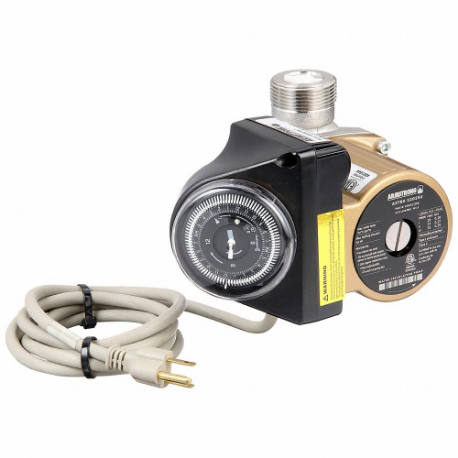

ARMSTRONG WORLD INDUSTRIES 110223B-241 Potable Water Circulating Pump, Multi-Speed, Union, 1/25 Hp, 120V AC
Item: CN8VEY
Model: 110223B-241
25 In Stock
Ships within 2 days via
5.00% off
£1433.12/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps | 0.27A |
|---|---|
| Compatible Discharge Pipe Size | 1" |
| Compatible Media Type | 30% Glycol, Water |
| Compatible Pipe Size | 1" |
| Connection Type | Union |
| Electrical Connection Type | Plug In |
| Enclosure Type | Open Dripproof |
| Face To Face Dimension | 6" |
| Flange Or Union Included | No |
| For Pipe Size | 1" |
| For Use With | Potable Systems |
| For Use With Potable Systems | Yes |
| Frequency | 60 Hz |
| Housing Material | Stainless Steel |
| Hp | 1/25 hp |
| Impeller Material | Plastic |
| Includes | 24 Hrs. Timer, Line Cord Plug, Thermal Overload Protection |
| Manufacturer Warranty Length | 2.5 yrs. |
| Max. Flow Rate @ 1 Ft. | 9 GPM |
| Max. Flow Rate @ 5 Ft. | 0 GPM |
| Max. Head | 5 ft. |
| Max. Media Temp. | 230°F |
| Max. Operating Pressure | 150 psi |
| Max. Rpm | 3600 RPM |
|---|---|
| Maximum Flow Rate @ 5 Feet Of Head | 0 GPM |
| Media Type | 30% Glycol, Water |
| Min. Media Temp. | -4°F |
| Motor Enclosure Design | Open Drip Proof |
| Mounting Location | Inline |
| Mounting Position | Horizontal |
| Nameplate Voltage | 120V AC |
| No. Of Speeds | 3 |
| Overall Height | 5.98" |
| Overall Length | 5.62" |
| Overall Width | 7.3" |
| Phase | Single |
| Phase And Brand | Armstrong Pumps Inc. Single Phase |
| Pump Housing Material | Stainless Steel |
| Pump Type | Multi Speed |
| Rotor Type | Wet |
| Series | Astro 220SSU075S-T Series |
| Series Family | E.2 |
| Standard Logo | csa.png,etl.png,nsf.png |
| Standards | Csa, Etl, Nsf-372 |
| Voltage | 115V AC |
| Wetted Material | Stainless Steel |
Product Details
Pump
Shipping Information
| height | 15.19 |
|---|---|
| length | 14.27 |
| width | 18.54 |
| country of origin | CN |
|---|---|
| weight | 4.185000 |
Related Products
| Style | Model | Connection Type | Voltage | Face To Face Dimension | Hp | Pump Type | No. Of Speeds | Phase | For Use With Potable Systems | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 110223B-149 | Flanged | 115V AC | 6 3/8" | 1/25 hp | Multi Speed | 3 | Single | Yes | 1,374.40 | |
| B | 174031MF-043 | Flanged | 240V AC | 6 1/2" | 1/12 hp | 3 Piece | 1 | Single | Yes | 1,748.63 | |
| C | 116440MF-133 | Flanged | 115V AC | 11 1/2" | 1/2 hp | 3 Piece | 1 | Single | Yes | 4,596.56 | |
| D | 174036MF-143 | Flanged | 115V AC | 15 3/4" | 1/4 hp | 3 Piece | 1 | Single | Yes | 5,698.88 | |
| C | 174034MF-043 | Flanged | 115V AC | 8 1/2" | 1/6 hp | 3 Piece | 1 | Single | Yes | 3,063.88 | |
| E | 174033MF-043 | Flanged | 115V AC | 8 1/2" | 1/6 hp | 3 Piece | 1 | Single | Yes | 3,848.75 | |
| F | 174035MF-143 | Flanged | 240V AC | 8 1/2" | 1/6 hp | 3 Piece | 1 | Single | Yes | 3,771.45 |
