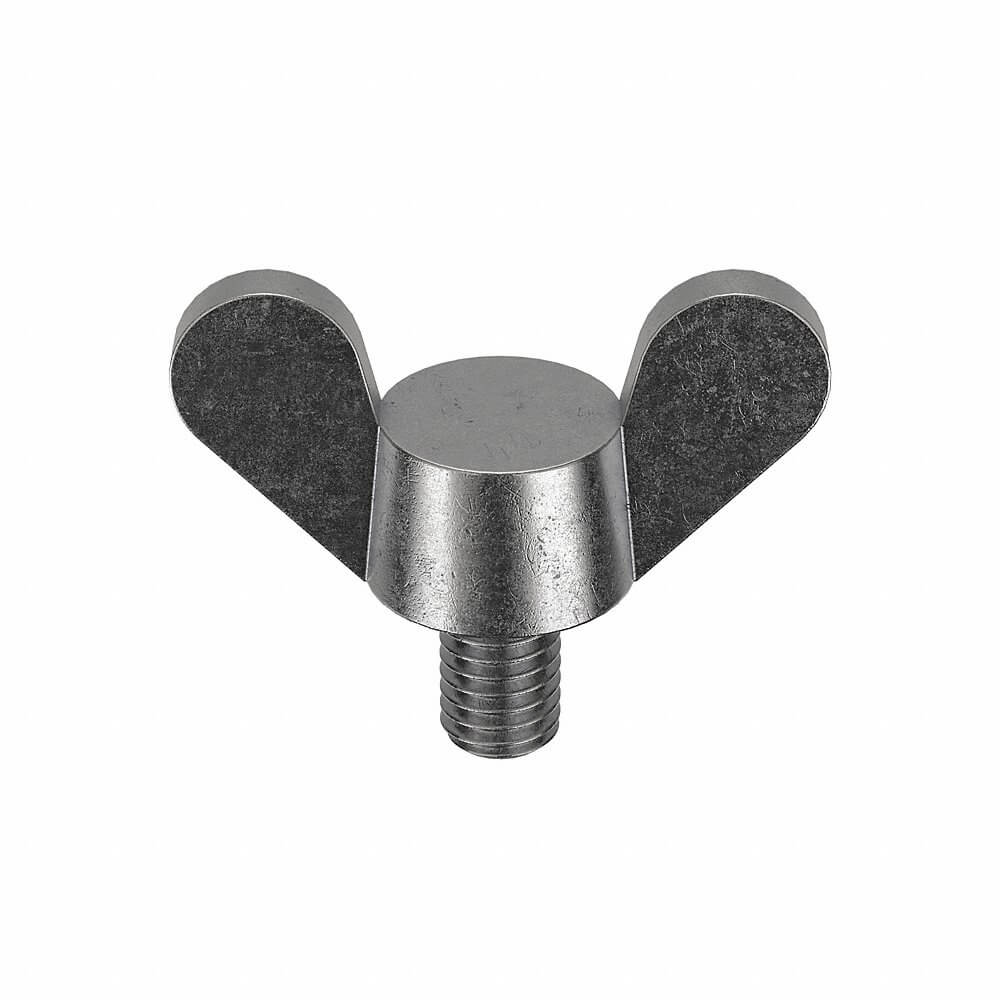

APPROVED VENDOR WS6S050080-001P1 Thumb Screw, M5x0.8 Thread Size, 8 mm Lg., 13 mm Head Ht., Zn Plated, Iron, Wing
Item: AE9ERL
Model: WS6S050080-001P1
19 In Stock
Ships within 2 days via
5.00% off
£4.81/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Dimensional Standards | Din 316 |
|---|---|
| Fastener Length | 8 mm |
| Finish | Zinc Plated |
| Finish Type | Zinc Plated |
| Head Dia. | 26 mm |
| Head Height | 13 mm |
| Head Profile | Wing |
| Head Style | Thumb |
| Head Type | Wing |
| Length | 8 mm |
|---|---|
| Material | Iron |
| Material Grade/class | Grade 6G |
| Material Type | Iron |
| Screw Size | M5 |
| System Of Measurement | Metric |
| Thread Fit | 8G |
| Thread Size | M5 x 0.8 |
| Tip Type | Flat |
Product Details
Shipping Information
| Height | 1.27 |
|---|---|
| Length | 10.16 |
| Width | 2.54 |
| HS Code | 7318156080 |
|---|---|
| Country Of Origin | TW |
| Weight | 0.202500 |
Related Products
| Style | Model | Thread Size | Head Dia. | Hardness | Thread Fit | Shoulder Dia. | Shoulder Length | Tip Type | Head Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | WSI03101000-001P | 5/16"-18 | 1 1/4" | Brinell 137 | - | 0.51" to 0.58" | - | - | - | 2.41 | |
| B | WSI03701500-001P | 3/8"-16 | 1 11/25" | Brinell 137 | - | 0.64" to 0.7" | - | - | 1.44" | 2.92 | |
| C | 1-CDL-02-17- | 1/4"-20 | 1 1/4" | Brinell 156 | 2A | 9/16" | 13/16" | Oval | - | 175.28 | |
| C | 1-CDG-02-17- | 1/4"-20 | 1 1/4" | Brinell 156 | 2A | 9/16" | 13/16" | Oval | - | 150.96 | |
| C | 1-CDP-02-17- | 1/4"-20 | 1 1/4" | Brinell 156 | 2A | 9/16" | 13/16" | Oval | - | 146.89 | |
| C | 1-CDR-02-17- | 1/4"-20 | 1 1/4" | Brinell 156 | 2A | 9/16" | 13/16" | Oval | - | 194.59 | |
| C | 1-CDS-02-17- | 1/4"-20 | 1 1/4" | Brinell 156 | 2A | 9/16" | 13/16" | Oval | - | 224.90 |
