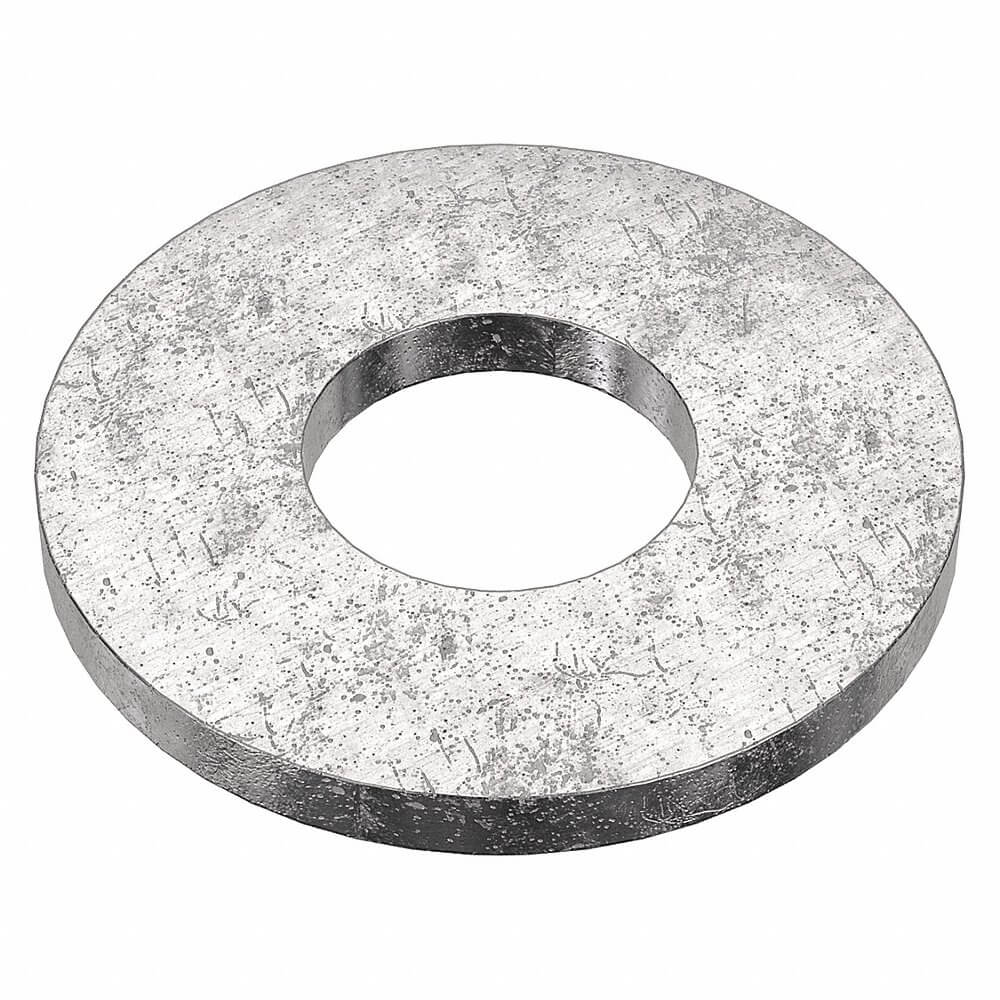

APPROVED VENDOR U55530.025.0100 Fender Washer, 1/4 In Fits Bolt Size, Oversized, 0.285 In I.D., 1 In O.D., 50PK
Item: AB7EAV
Model: U55530.025.0100
In Stock
Get it by Wednesday, Apr 15
£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Dimensional Standards | Asme B18.21.1 |
|---|---|
| Finish | Plain |
| Fits Bolt Sizes | 1/4" |
| Flat Washer Type | Oversized |
| For Screw Size | 1/4" |
| Grade | Grade 316 |
| Inside Dia. | 0.285" |
| Inside Diameter Tolerance | -0.01" to +0.01" |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Maximum Temperature | 302°F |
| Maximum Thickness | 2/25" |
| Minimum Temperature | -58°F |
|---|---|
| Minimum Thickness | 0.047" |
| Outside Dia. | 1" |
| Outside Diameter Tolerance | -0.008" to +0.029" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Tensile Strength | Not Applicable |
| Thickness | 0.047" |
| Thickness Tolerance | +0.015", -0.018" |
| Washer Type | Oversized Washer |
Product Details
Fender Washer
Shipping Information
| height | 1.27 |
|---|---|
| length | 16.99 |
| width | 16.38 |
| hs code | 7318220000 |
|---|---|
| country of origin | TW |
| weight | 0.213800 |
Related Products
| Style | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Tensile Strength | Resistance Properties | Hardness | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U55530.013.0001 | #6 | 5/32" | 9/16" | 0.047" | - | - | - | - | 4.39 | |
| B | U55530.018.0125 | 3/16" | 0.223" | 1 1/4" | 0.047" | +0.015", -0.018" | Not Applicable | Corrosion Resistant | - | 34.77 | |
| C | U55530.025.0001 | 1/4" | 9/32" | 1/2" | 0.047" | - | - | - | - | 4.73 | |
| D | U55530.025.0002 | 1/4" | 9/32" | 9/16" | 0.063" | - | - | - | - | 40.83 | |
| E | U55530.025.0087 | 1/4" | 0.285" | 7/8" | 0.063" | +0.015", -0.018" | Not Applicable | Corrosion Resistant | - | 16.44 | |
| F | U55530.025.0125 | 1/4" | 0.285" | 1 1/4" | 0.047" | +0.015", -0.018" | Not Applicable | Corrosion Resistant | - | 34.30 | |
| G | U55530.025.0150 | 1/4" | 0.285" | 1 1/2" | 0.063" | - | Not Applicable | - | - | 43.57 |
