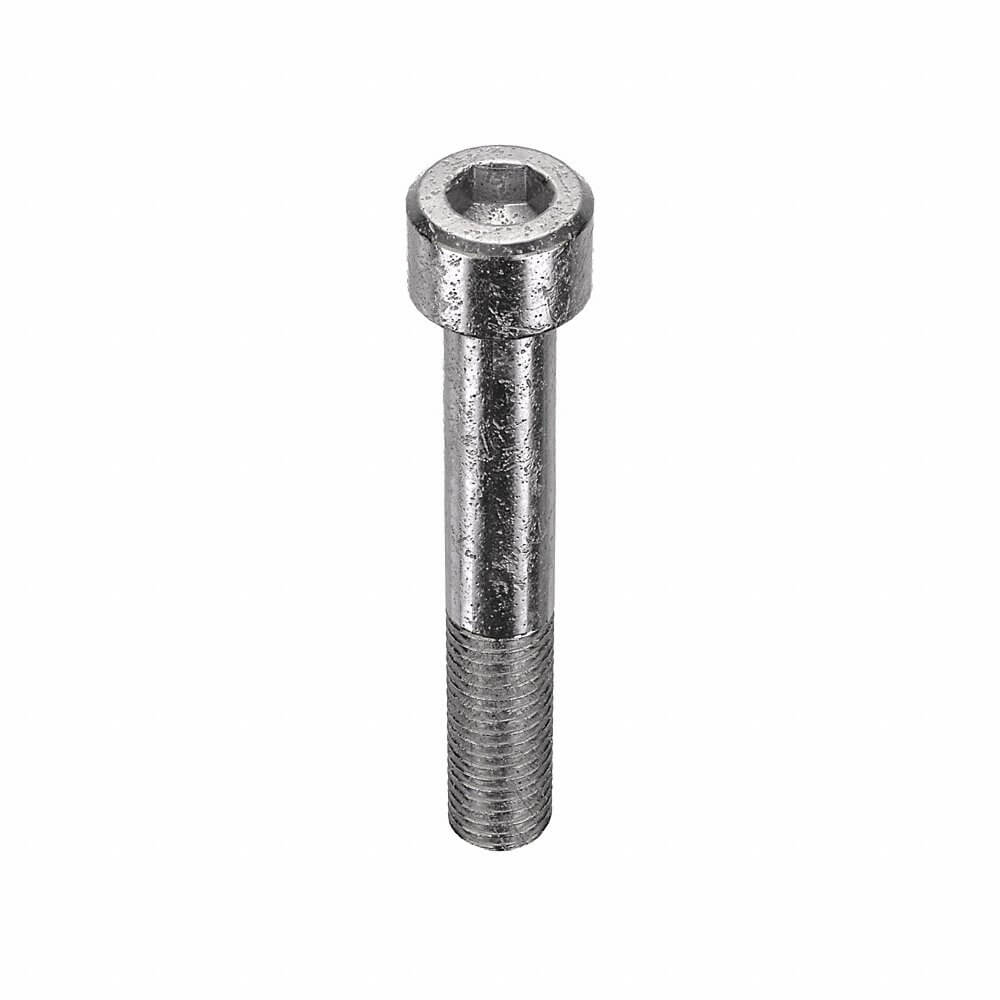

APPROVED VENDOR U55050.062.0400 Socket Head Cap Screw, 5/8 In - 11 Thread Size, Cyl., 4 In Lg., 5/8 In Head Ht., Pln, Gr. 316, SS, 5PK

Item: AB7CMC
Model: U55050.062.0400
22 In Stock

Ships within 2 days via

£198.46
5.00% off
£188.53/pkg. of 5 (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Color Silver
Combined Grade Grade 316
Combined Material Stainless Steel
Dimensional Standards ASME B18.3
Display Qty 5
Drive Size 1/2"
Drive Type Socket
Finish Plain
Grade Grade 316
Hardness Rockwell B80-C32
Head Dia. 15/16"
Head Diameter 0.938"
Head Height 5/8"
Head Texture Smooth
Head Type Standard
Includes Washer No
Length 4"
Material Stainless Steel
Material Grade Grade 316
Material Grade/class 316
Material Quality Standards Astm F837
Material Type Stainless Steel
Maximum Head Height 5/8"
Maximum Point Diameter 5/8"
Maximum Temperature 550°F
Min. Tensile Strength 85000 psi
Minimum Head Height 0.616"
Minimum Point Diameter 0.499"
Minimum Temperature -50°F
Minimum Thread Length 1 3/4"
Minimum Yield Strength 30 psi
Non-marring Tip No
Point Diameter 0.625"
Proof Load 25000 psi
Screw Length 4"
Sealing Gasket No
System Of Measurement Imperial
Temp. Range -50°F to +550°F
Tensile Strength 85000 psi
Thread Direction Right Hand
Thread Fit 3A
Thread Length 1 3/4"
Thread Size 5/8"-11
Thread Style Partially Threaded
Thread Type Coarse
Seal Material None

Shipping Information

Height 2.54
Length 21.01
Width 16.69
HS Code 7318158030
Country Of Origin TW
Weight 0.987300
