APPROVED VENDOR U51205.043.0001 Flat Washer, 7/16 In Fits Bolt Size, SAE, 15/32 In I.D., 71/77 In O.D., Gr. 18-8, 25PK
Item: AB8ETB
Model: U51205.043.0001
15 In Stock
Ships within 2 days via
5.00% off
£3.89/pkg. of 25
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Dimensional Standards | Asme B18.21.1, Sae |
|---|---|
| Finish | Plain |
| Fits Bolt Sizes | 7/16" |
| Flat Washer Type | SAE |
| For Screw Size | 7/16" |
| Grade | Grade 18-8 |
| Inside Dia. | 15/32" |
| Inside Diameter | 0.469" |
| Inside Diameter Tolerance | -0.005" to +0.015" |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Temperature | 302°F |
| Maximum Thickness | 2/25" |
| Minimum Temperature | -58°F |
| Minimum Thickness | 0.051" |
|---|---|
| Outside Dia. | 71/77" |
| Outside Diameter | 59/64" |
| Outside Diameter Tolerance | -0.007" to +0.015" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | Not Applicable |
| Thickness | 0.065" |
| Thickness Tolerance | +0.015", -0.014" |
| Washer Type | SAE Washer |
Product Details
Flat Washer
Shipping Information
| height | 1.27 |
|---|---|
| length | 16.99 |
| width | 16.38 |
| hs code | 7318220000 |
|---|---|
| country of origin | TW |
| weight | 0.109400 |
Related Products
| Style | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Tensile Strength | Resistance Properties | Hardness | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

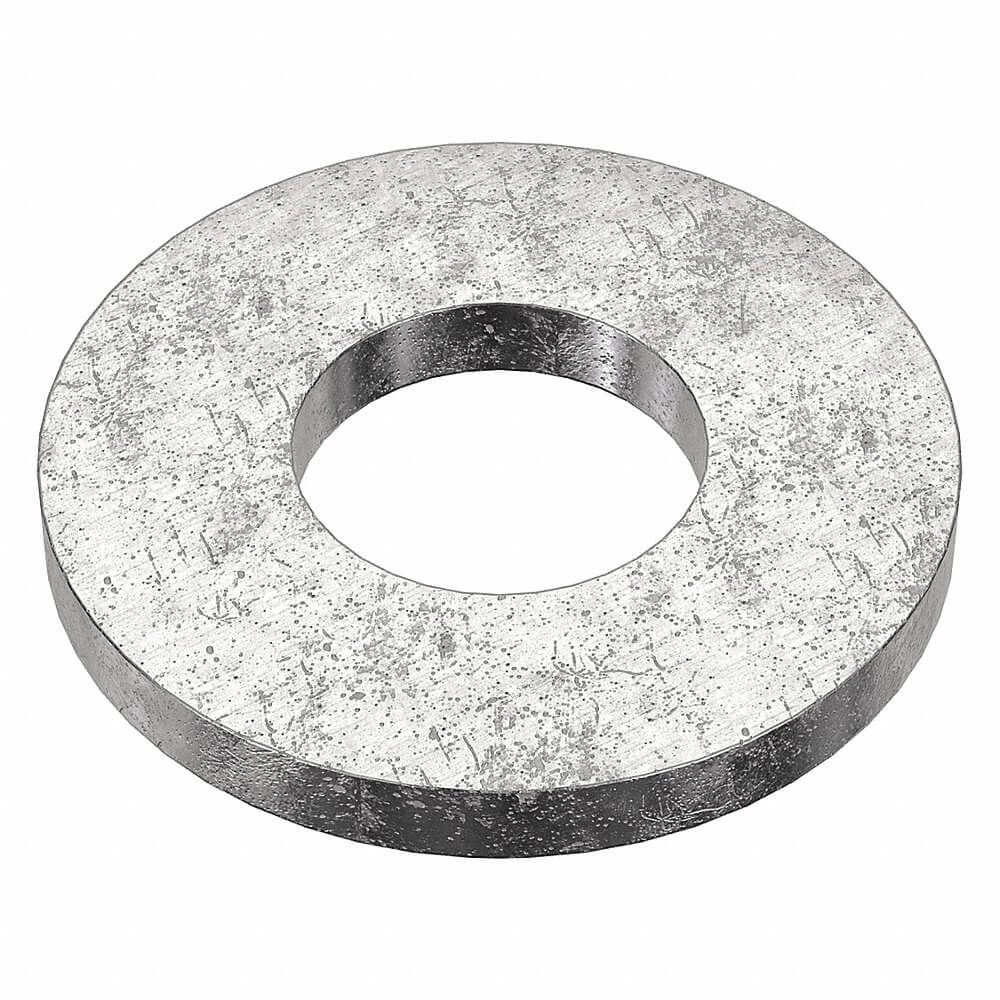

| A | U51205.025.0001 | 1/4" | 9/32" | 5/8" | 0.065" | +0.015", -0.014" | Not Applicable | Corrosion Resistant | - | 4.98 | |

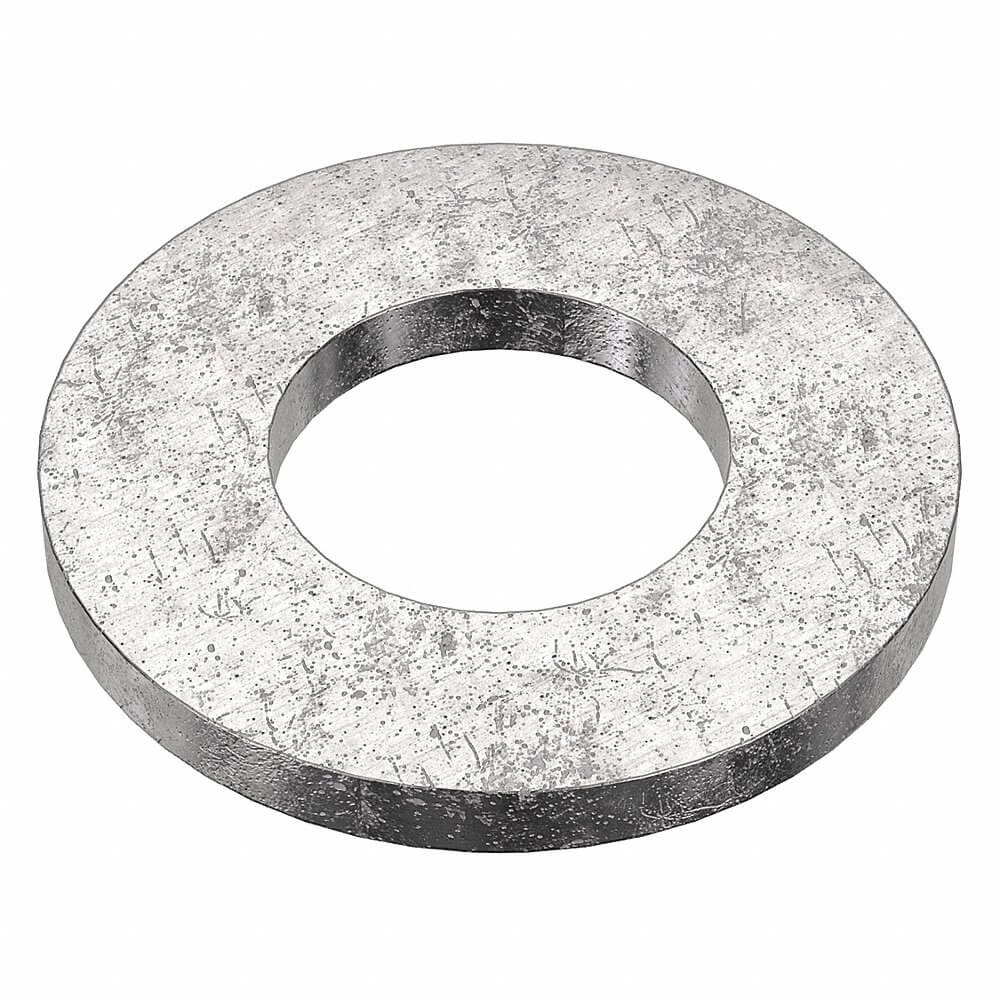

| B | U51205.031.0001 | 5/16" | 11/32" | 11/16" | 0.065" | +0.015", -0.014" | Not Applicable | Corrosion Resistant | - | 4.65 | |

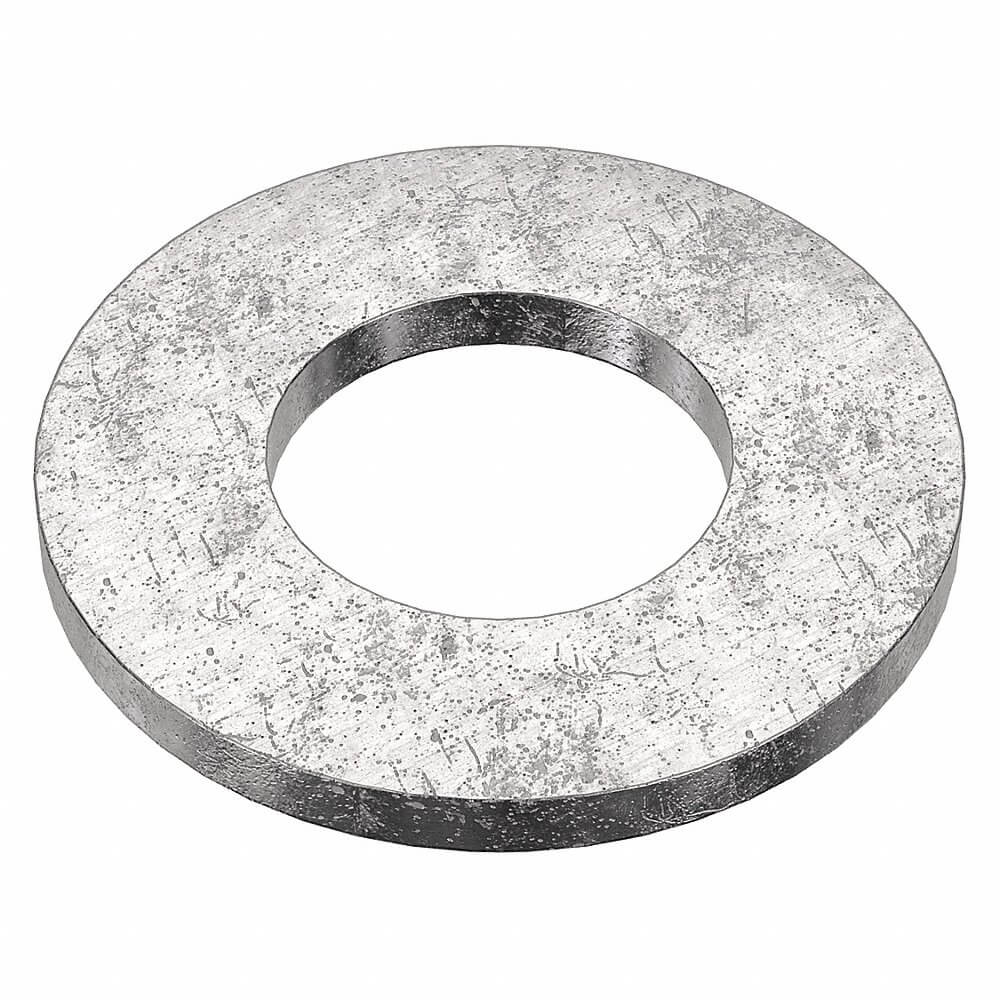

| C | U51205.037.0001 | 3/8" | 13/32" | 13/16" | 0.065" | +0.015", -0.014" | Not Applicable | Corrosion Resistant | - | 7.37 | |

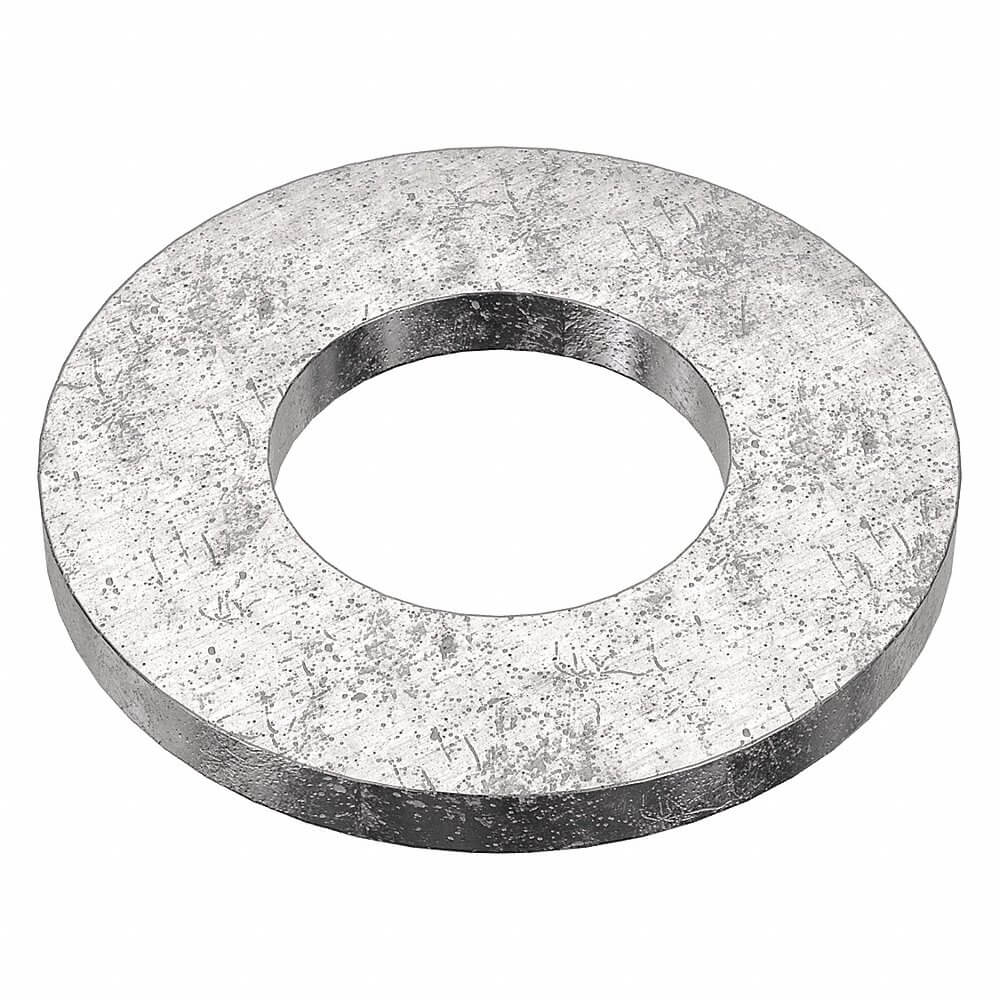

| D | U51205.050.0001 | 1/2" | 17/32" | 1 1/16" | 0.095" | +0.026", -0.021" | Not Applicable | Corrosion Resistant | - | 17.09 | |

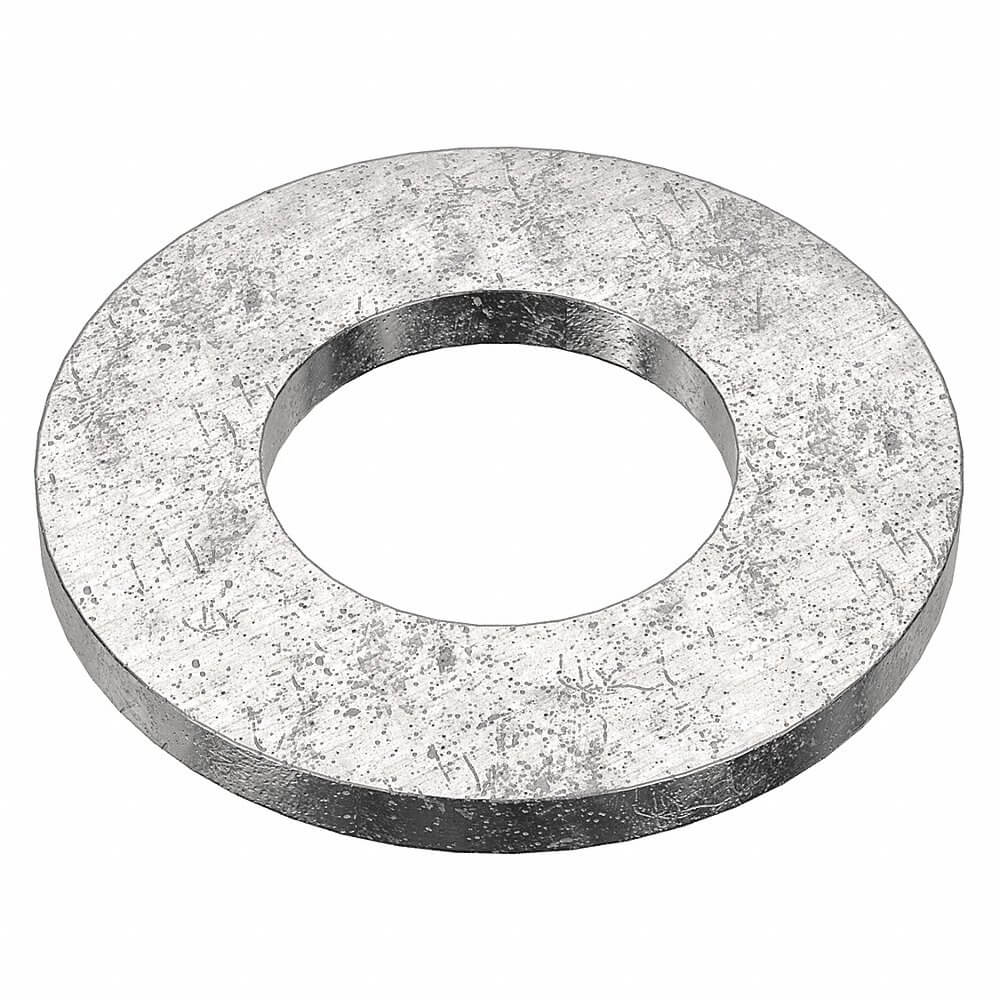

| E | U51205.056.0001 | 9/16" | 19/32" | 1.156" | 0.095" | +0.026", -0.021" | Not Applicable | Corrosion Resistant | - | 8.89 | |
| F | U51205.062.0001 | 5/8" | 21/32" | 1 5/16" | 0.095" | +0.026", -0.021" | Not Applicable | Corrosion Resistant | - | 14.31 | |
| G | U51205.075.0001 | 3/4" | 0.813" | 1 15/32" | 0.134" | -0.026" to +0.026" | Not Applicable | Corrosion Resistant | - | 18.14 |
