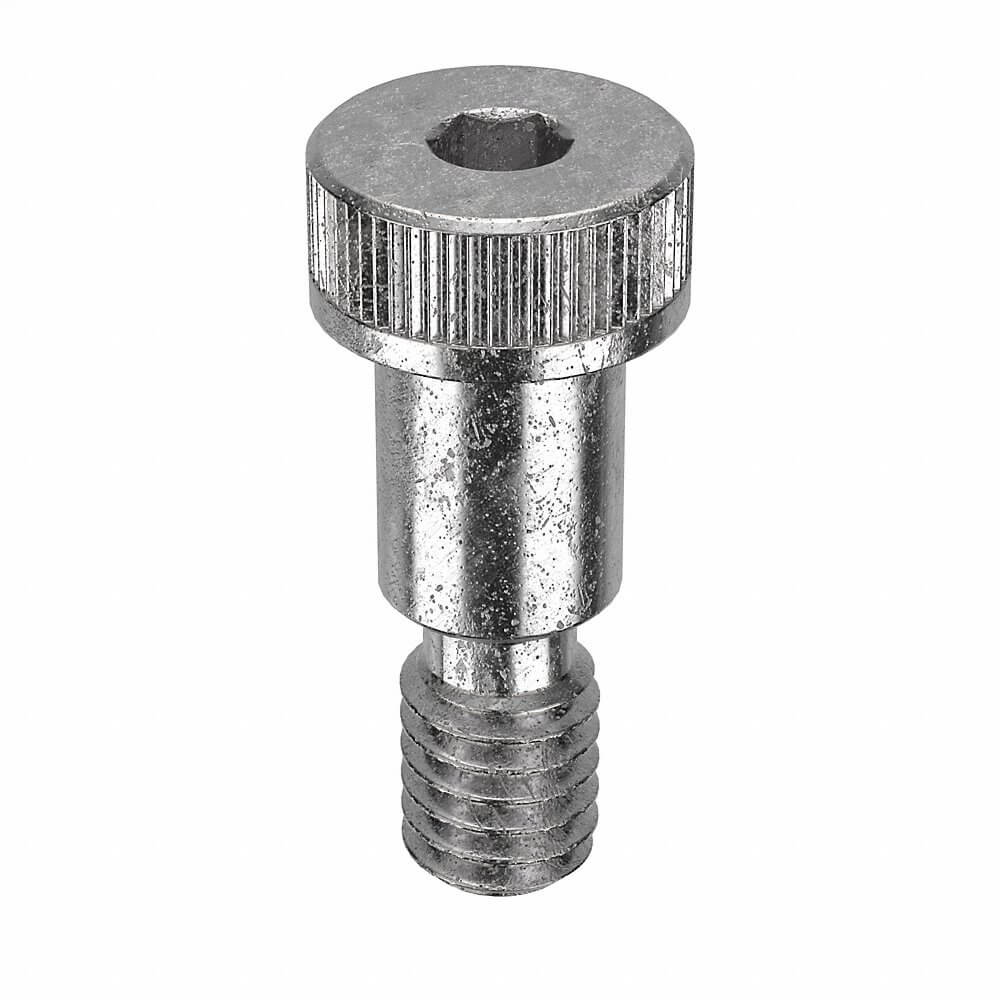

APPROVED VENDOR U51044.037.0050 Shoulder Screw, 5/16 In - 18 Thread Size, 1/2 In Shoulder Lg., 1/4 In Head Ht., Precision, 5PK
Item: AE4RPE
Model: U51044.037.0050
17 In Stock
Ships within 2 days via
5.00% off
£22.39/pkg. of 5
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Class | Class 3A |
|---|---|
| Countersink Angle | 140° |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 5 |
| Drive Size | 3/16" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B65 |
| Head Dia. | 9/16" |
| Head Height | 1/4" |
| Head Texture | Knurled |
| Head Type | Standard |
| Heat Treatment | No Heat Treatment |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Material Quality Standards | Astm A574 |
| Maximum Head Height | 1/4" |
| Maximum Temperature | 150°F |
| Min. Tensile Strength | 90000 psi |
|---|---|
| Minimum Head Height | 6/25" |
| Minimum Temperature | -50°F |
| Precision Screw | Yes |
| Rockwell Hardness | B65 |
| Shear Strength | 84000 psi |
| Shoulder Dia. | 3/8" |
| Shoulder Diameter Tolerance | 0.002" to 0.004" |
| Shoulder Length | 1/2" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 80000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 1/2" |
| Thread Locking | No |
| Thread Size | 5/16"-18 |
| Thread Type | Coarse |
| Type | Precision Shoulder Screw |
Product Details
Shipping Information
| Height | 1.78 |
|---|---|
| Length | 10.16 |
| Width | 3.81 |
| HS Code | 7318158030 |
|---|---|
| Country Of Origin | TW |
| Weight | 0.102200 |
Related Products
| Style | Model | Thread Size | Shoulder Length | Shoulder Dia. | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Drive Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U51044.031.0025 | 1/4"-20 | 1/4" | 5/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5/32" | 6.29 | |
| B | U51044.031.0031 | 1/4"-20 | 5/16" | 5/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5/32" | 11.13 | |
| C | U51044.031.0037 | 1/4"-20 | 3/8" | 5/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5/32" | 46.95 | |
| D | U51044.031.0050 | 1/4"-20 | 1/2" | 5/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5/32" | 6.51 | |
| E | U51044.031.0062 | 1/4"-20 | 5/8" | 5/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5/32" | 7.06 | |
| F | U51044.031.0075 | 1/4"-20 | 3/4" | 5/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5/32" | 43.27 | |
| G | U51044.037.0031 | 5/16"-18 | 5/16" | 3/8" | -0.005" to +0.005" | 9/16" | 1/4" | - | 3/16" | 9.36 |
