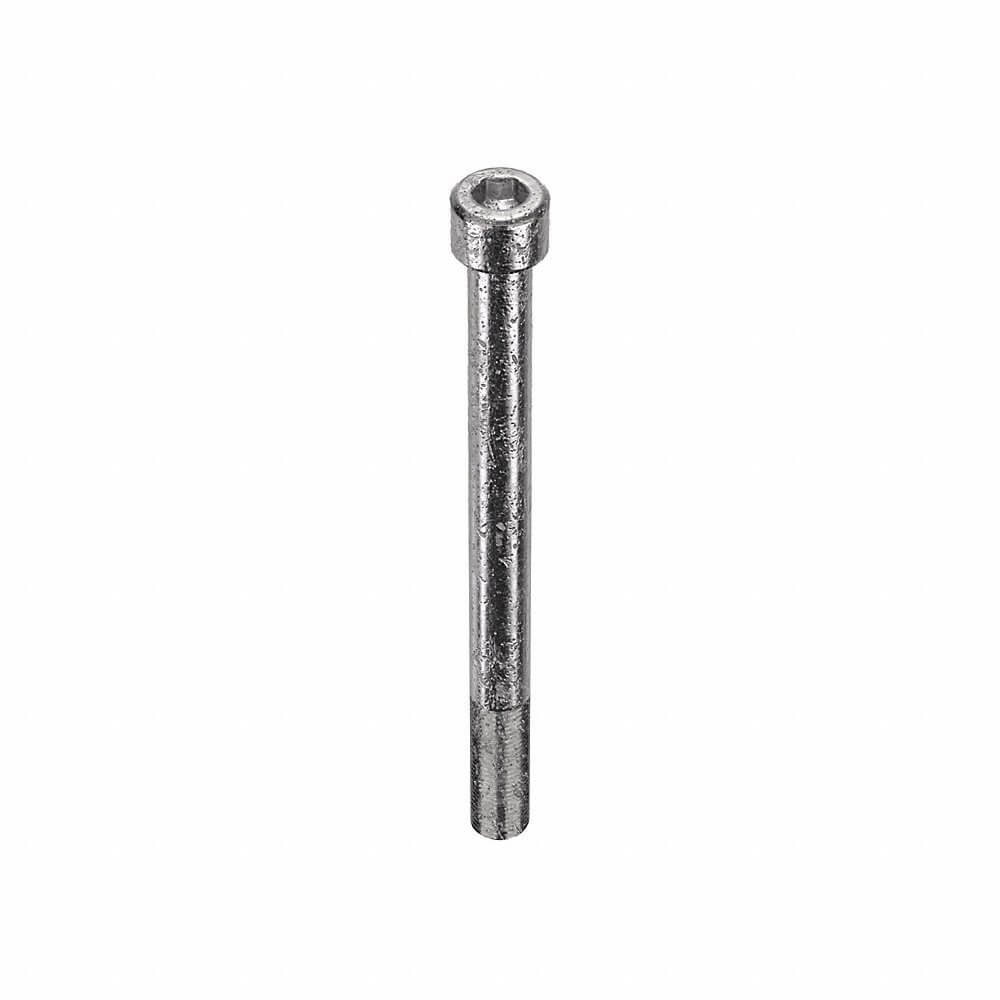

APPROVED VENDOR U51041.050.0600 Socket Head Cap Screw, 1/2 In - 20 Thread Size, Cyl., 6 In Lg., 1/2 In Head Ht., Fine, 5PK

Item: AB7CWX
Model: U51041.050.0600
In Stock
£0
5.00% off
Trade Prices Available
Request Quote

Payment

Specifications

Color Silver
Combined Material & Grade 18-8 Stainless Steel
Dimensional Standards ASME B18.3
Display Qty 5
Drive Size 3/8"
Drive Type Socket
Finish Plain
Grade Grade 18-8
Hardness Rockwell B80-C32
Head Dia. 3/4"
Head Height 1/2"
Head Texture Smooth
Head Type Standard
Includes Washer No
Length 6"
Material Stainless Steel
Material Grade Grade 18-8
Material Grade/class 18-8
Material Quality Standards Astm F837
Material Type Stainless Steel
Maximum Head Height 1/2"
Maximum Point Diameter 1/2"
Maximum Temperature 550°F
Min. Tensile Strength 85000 psi
Minimum Head Height 0.492"
Minimum Point Diameter 0.393"
Minimum Temperature -50°F
Minimum Thread Length 1 1/2"
Minimum Yield Strength 30 psi
Non-marring Tip No
Point Diameter 0.5"
Proof Load 25000 psi
Screw Length 6"
Sealing Gasket No
System Of Measurement Imperial
Temp. Range -50°F to +550°F
Tensile Strength 85000 psi
Thread Direction Right Hand
Thread Fit 3A
Thread Length 1 1/2"
Thread Size 1/2"-20
Thread Style Partially Threaded
Thread Type Fine
Seal Material None

Product Details

Shipping Information

height 2.54
length 21.01
width 16.69
hs code 7318158030
country of origin TW
weight 0.858200
