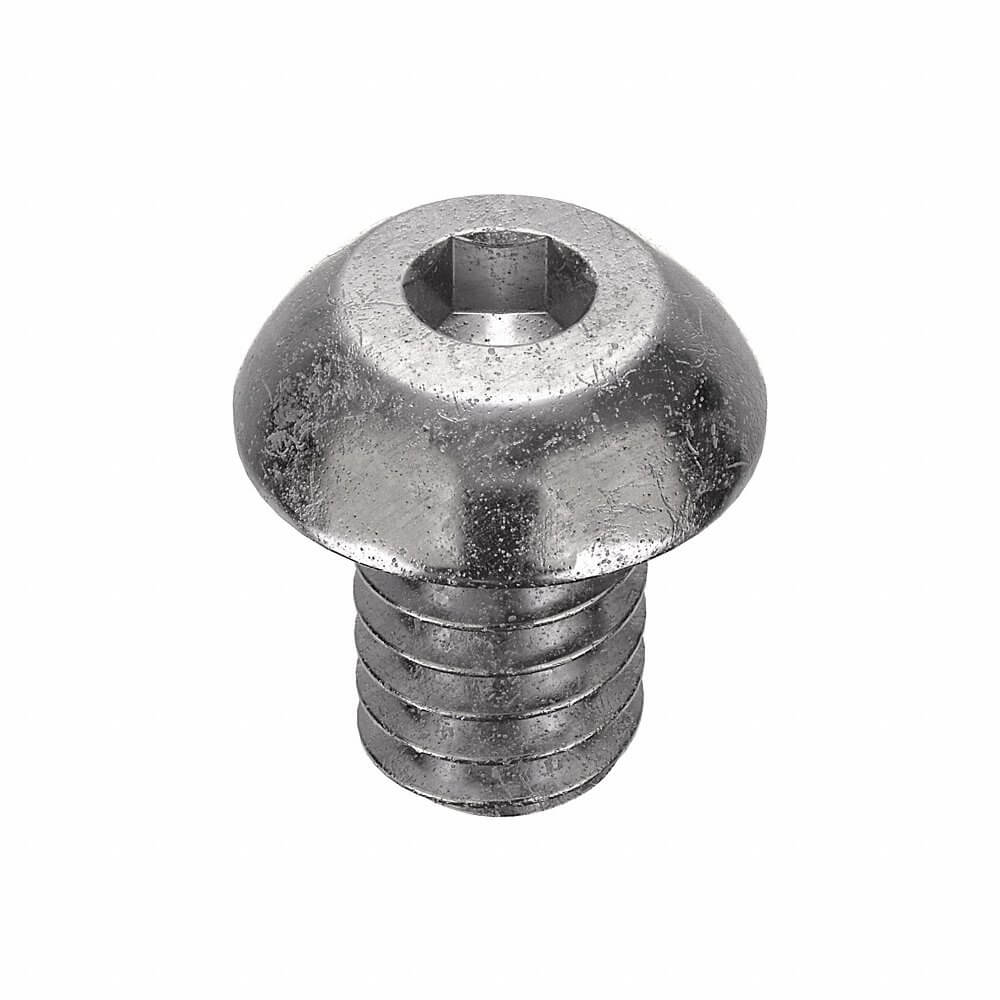

APPROVED VENDOR U51030.025.0037 Socket Head Cap Screw, 1/4 In - 20 Thread Size, Button, 3/8 In Lg., 0.132 In Head Ht., Pln, 100PK
Item: AC8KGH
Model: U51030.025.0037
10 In Stock
Ships within 2 days via
5.00% off
£25.82/pkg. of 100
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Combined Material & Grade | 18-8 Stainless Steel |
|---|---|
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 5/32" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B80-C32 |
| Head Dia. | 7/16" |
| Head Diameter | 0.437" |
| Head Height | 0.132" |
| Head Type | Button |
| Length | 3/8" |
| Material | Stainless Steel |
| Material Grade | Grade 18-8 |
| Material Grade/class | 18-8 |
| Material Quality Standards | Astm F879 |
|---|---|
| Material Type | Stainless Steel |
| Maximum Temperature | 300°F |
| Min. Tensile Strength | 100000 psi |
| Minimum Temperature | -65°F |
| Minimum Thread Length | 3/8" |
| Screw Length | 3/8" |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +300°F |
| Tensile Strength | 100000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 3/8" |
| Thread Size | 1/4"-20 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 21.01 |
| Width | 16.69 |
| HS Code | 7318158030 |
|---|---|
| Country Of Origin | TW |
| Weight | 0.336200 |
Related Products
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Min. Tensile Strength | Hardness | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U51030.008.0075 | #2-56 | Fully Threaded | 0.05" | 0.164" | 0.0469" | 85000 psi | Rockwell B80-C32 | -50°F to +550°F | 19.56 | |
| B | U51030.013.0150 | #6-32 | Fully Threaded | 5/64" | 1/4" | 0.073" | 85000 psi | Rockwell B80-C32 | -50°F to +550°F | 21.28 | |
| C | U51030.019.0150 | #10-24 | Fully Threaded | 1/8" | 0.361" | 0.101" | 85000 psi | Rockwell B80-C32 | -50°F to +550°F | 34.97 | |
| D | U51030.019.0200 | #10-24 | Fully Threaded | 1/8" | 0.361" | 0.101" | 85000 psi | Rockwell B80-C32 | -50°F to +550°F | 71.77 | |
| E | U51030.025.0100 | 1/4"-20 | Fully Threaded | 5/32" | 7/16" | 0.132" | 85000 psi | Rockwell B80-C32 | -50°F to +550°F | 21.96 | |
| F | U51030.025.0125 | 1/4"-20 | Fully Threaded | 5/32" | 7/16" | 0.132" | 85000 psi | Rockwell B80-C32 | -50°F to +550°F | 42.59 | |
| G | U51030.025.0150 | 1/4"-20 | Fully Threaded | 5/32" | 7/16" | 0.132" | 85000 psi | Rockwell B80-C32 | -50°F to +550°F | 44.15 |
