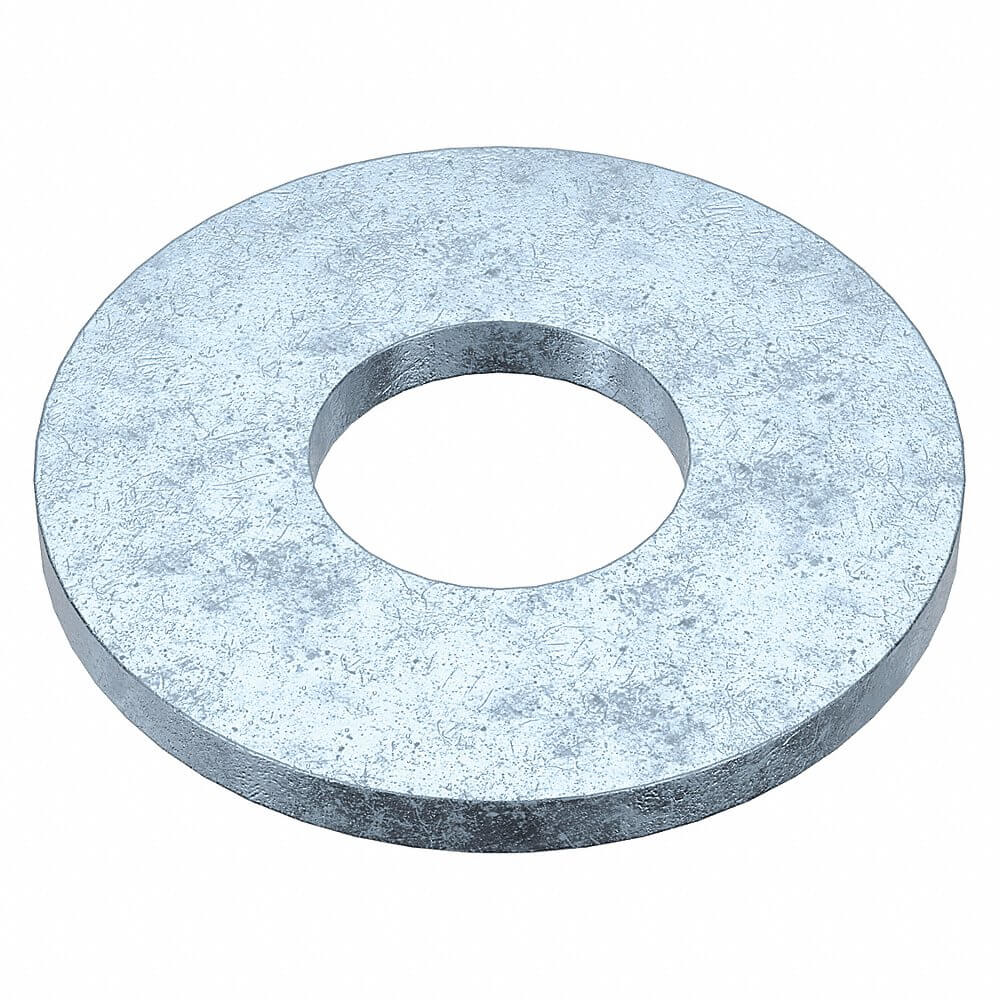

APPROVED VENDOR U38160.050.0003 Fender Washer, 1/2 In Fits Bolt Size, Oversized, 2 In O.D., 1/8 In Thk., 50PK

Item: AB7ECH
Model: U38160.050.0003
26 In Stock

Ships within 2 days via

£37.13
5.00% off
£35.27/pkg. of 50 (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Dimensional Standards ASME B18.22.1
Finish Zinc Plated
Fits Bolt Sizes 1/2"
Flat Washer Type Oversized
For Screw Size 1/2"
Inside Dia. 17/32"
Inside Diameter 0.531"
Inside Diameter Tolerance 0.526" to 0.546"
Made In North America No
Material Steel
Material Grade/class Ungraded
Material Quality Standards Not Rated
Maximum Temperature 350°C
Maximum Thickness 1/8"
Minimum Temperature -58°C
Minimum Thickness 1/8"
Outside Dia. 2"
Outside Diameter Tolerance 1.993" to 2.03"
Reach Compliant Yes
Removable Yes
Rockwell Hardness 140Hv
Rohs Compliant Yes
System Of Measurement Imperial
Thickness 1/8"
Thickness Tolerance 0.104" to 0.151"
Washer Type Oversized Washer

Product Details

Shipping Information

Height 1.27
Length 16.99
Width 16.38
HS Code 7318220000
Country Of Origin TW
Weight 0.803700
