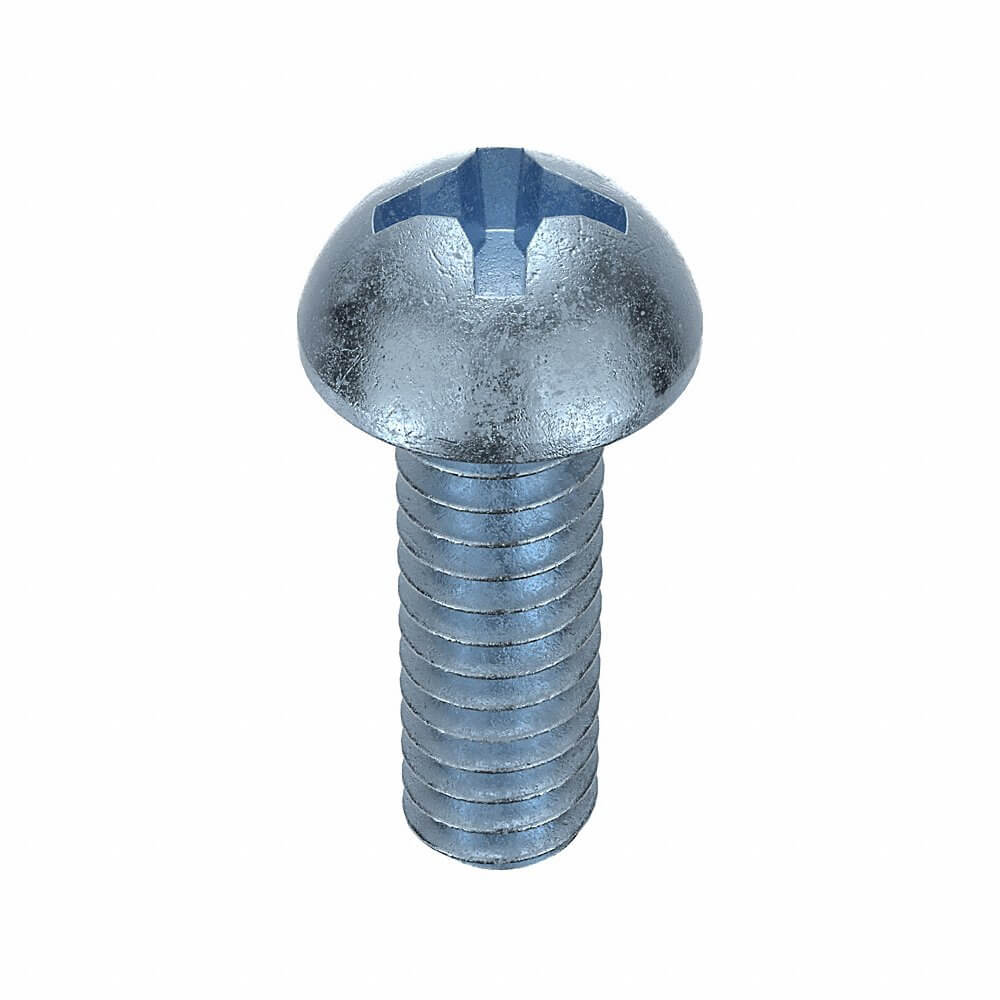

APPROVED VENDOR U24211.025.0087 Machine Screw, 1/4 In - 20 Thread Size, Steel, 7/8 In Lg., Std, Phillips, 100PK
Item: AB9NMH
Model: U24211.025.0087
20 In Stock
Ships within 2 days via
5.00% off
£20.7/pkg. of 100
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Class | Class 3A, Class 2A |
|---|---|
| Dimensional Standards | ASME B18.6.3 |
| Drive | Phillips |
| Drive Size | #3 |
| Drive Type | Phillips |
| Fastener Length | 7/8" |
| Finish | Zinc Plated |
| Head Dia. | 3/8" |
| Head Height | 0.472" |
| Head Type | Round Spacer |
| Head Width | 0.477" |
| Length | 7/8" |
| Machine Screw Type | Standard Machine Screw |
| Material | Steel |
|---|---|
| Minimum Head Height | 4/25" |
| Minimum Head Width | 0.442" |
| Screw Size | 1/4" |
| System Of Measurement | Imperial |
| Tensile Strength | 60000 psi |
| Thread Direction | Right Hand |
| Thread Fit | Class 2A, Class 3A |
| Thread Length | 7/8" |
| Thread Size | 1/4"-20 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
Product Details
Shipping Information
| Height | 5.59 |
|---|---|
| Length | 9.14 |
| Width | 8.89 |
| HS Code | 7318154000 |
|---|---|
| Country Of Origin | TW |
| Weight | 0.612900 |
Related Products
| Style | Model | Thread Size | Head Height | Thread Type | Head Dia. | Drive Size | Head Width | Tensile Strength | Class | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U24211.008.0025 | #2-56 | 0.162" | Coarse | 0.162" | #1 | - | 60000 psi | Class 3A, Class 2A | 9.24 | |
| B | U24211.008.0037 | #2-56 | 0.069" | Coarse | 0.162" | #1 | - | 60000 psi | Class 3A, Class 2A | 3.83 | |
| C | U24211.008.0050 | #2-56 | 0.162" | Coarse | 0.162" | #1 | - | 60000 psi | Class 3A, Class 2A | 7.93 | |
| D | U24211.008.0075 | #2-56 | 0.069" | Coarse | 0.162" | #1 | - | 60000 psi | Class 3A, Class 2A | 4.73 | |
| E | U24211.011.0018 | #4-40 | 0.086" | Coarse | 0.212" | #1 | - | 60000 psi | Class 3A, Class 2A | 3.62 | |
| F | U24211.011.0025 | #4-40 | 0.211" | Coarse | 0.212" | #1 | - | 60000 psi | Class 3A, Class 2A | 4.41 | |
| G | U24211.011.0031 | #4-40 | 0.086" | Coarse | 0.212" | #1 | - | 60000 psi | Class 3A, Class 2A | 4.34 |
