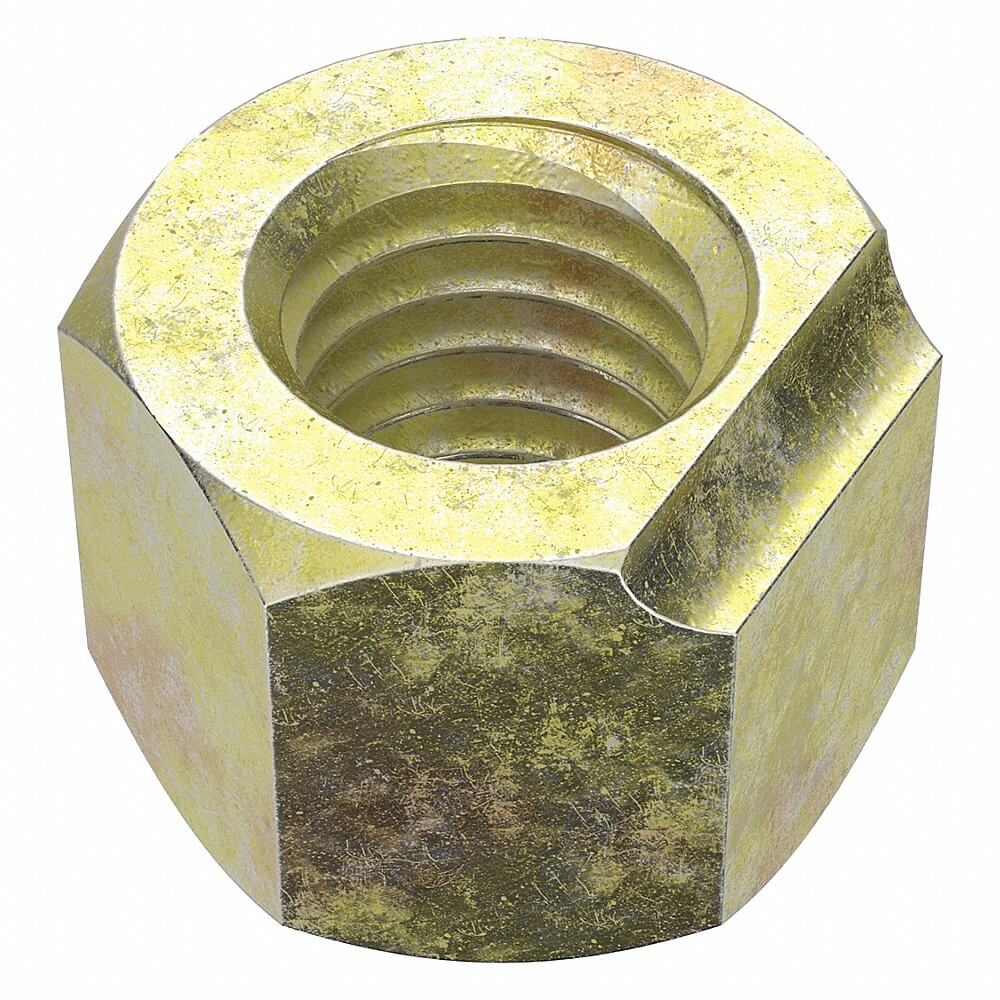

APPROVED VENDOR U12920.050.0001 Hex Locknut, 1/2 In - 13 Thread Size, Top Lock Distorted Thread, 3/4 In Hex Wd., Gr. C, 25PK
Item: AB8UDX
Model: U12920.050.0001
16 In Stock
Ships within 2 days via
5.00% off
£13.96/pkg. of 25
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Not Applicable |
|---|---|
| Color | Yellow |
| Finish | Zinc Yellow |
| Grade | Grade C |
| Hex Height | 1/4" |
| Hex Type | Standard Hex Top Lock |
| Hex Width | 3/4" |
| Insert Material | Steel |
| Lock Type | Top Lock Distorted Thread |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Grade C |
| Nut Height | 0.573" |
|---|---|
| Nut Type | Top Lock Distorted Thread |
| Reach Compliant | No |
| Removable | No |
| Resistance Properties | Corrosion Resistant |
| Rockwell Hardness | Hrc 24/32 |
| System Of Measurement | Imperial |
| Tensile Strength | 150000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 2B |
| Thread Type | Coarse |
| Type | Conical Top Lock |
Product Details
Hex Locknut
Shipping Information
| height | 1.27 |
|---|---|
| length | 16.99 |
| width | 16.38 |
| hs code | 7318160085 |
|---|---|
| country of origin | TW |
| weight | 0.389200 |
Related Products
| Style | Model | Thread Size | Hex Width | Hex Height | Nut Height | Hardness | Temp. Range | Hex Type | Insert Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U12920.037.0001 | 3/8"-16 | 9/16" | 27/64" | 27/64" | - | -58°F to +302°F | Standard Hex Top Lock | Steel | 16.75 | |
| B | U12920.043.0001 | 7/16"-14 | 11/16" | 15/32" | 15/32" | - | -58°F to +302°F | Standard Hex Top Lock | - | 15.84 | |
| C | U12920.062.0001 | 5/8"-11 | 15/16" | 47/64" | 47/64" | - | -58°F to +302°F | Standard Hex Top Lock | Steel | 11.68 | |
| D | U12920.075.0001 | 3/4"-10 | 1 1/8" | 53/64" | 53/64" | - | -58°F to +302°F | Standard Hex Top Lock | Steel | 17.09 | |
| B | U12920.087.0001 | 7/8"-9 | 1 5/16" | - | 59/64" | - | -58°F to +302°F | - | - | 21.90 | |
| E | U12920.100.0001 | 1"-8 | 1 1/2" | 1/2" | 1 1/64" | - | -58°F to +302°F | Standard Hex Top Lock | Steel | 24.28 | |
| F | U12920.112.0001 | 1 1/8"-7 | 1 11/16" | 9/16" | 1 11/64" | - | -58°F to +302°F | Standard Hex Top Lock | Steel | 472.91 |
