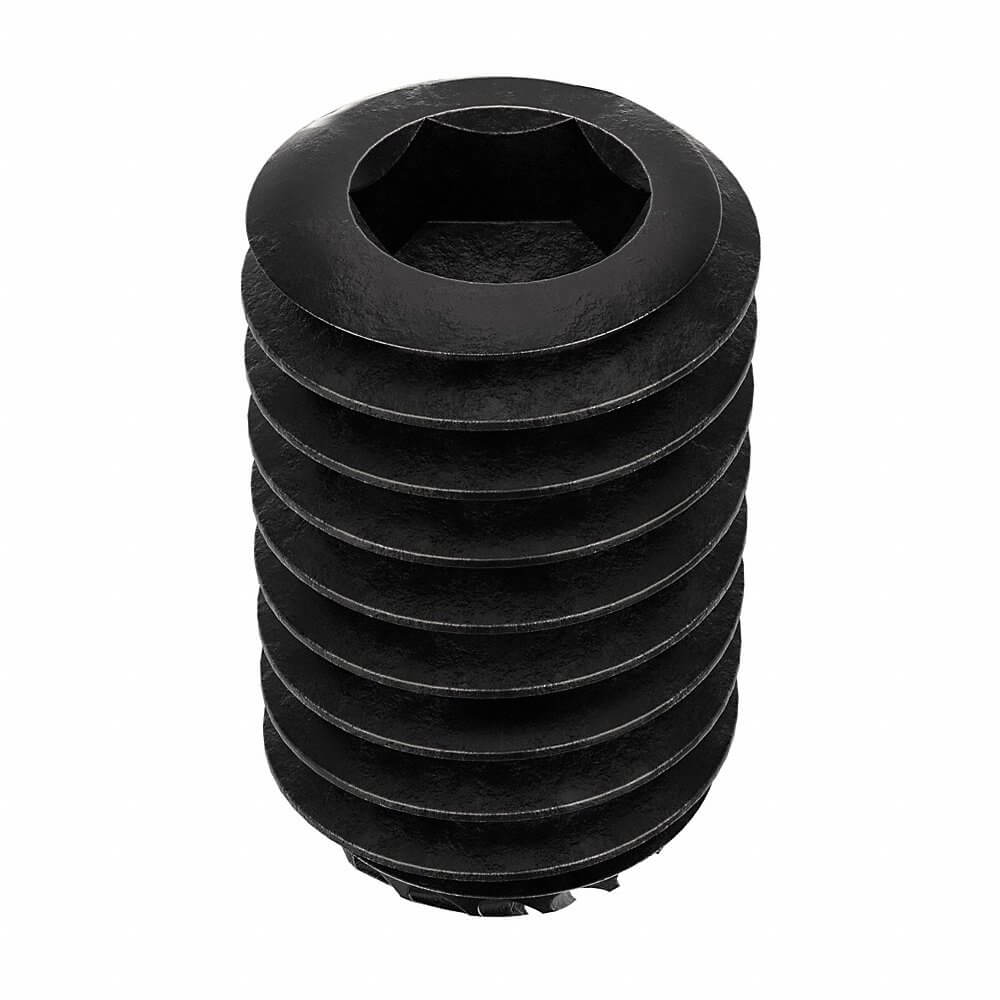

APPROVED VENDOR U07890.037.0062 Socket Set Screw, 3/8 In - 16 Thread Size, Pln, 5/8 In Lg., 3/16 In Drive Size, Knurled Cup, 100PK
Item: AB8FXK
Model: U07890.037.0062
26 In Stock
Ships within 2 days via
5.00% off
£69.72/pkg. of 100
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Class | Class 3A |
|---|---|
| Decimal Equivalent | 0.375" |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 3/16" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C48-C53 |
| Head Type | Headless |
| Length | 5/8" |
| Material | Alloy Steel |
|---|---|
| Overall Length | 5/8" |
| Point Dia. | 0.187" |
| Point Material | Alloy Steel |
| Point Type | Knurled Cup |
| System Of Measurement | Imperial |
| Thread Fit | 3A |
| Thread Size | 3/8"-16 |
| Thread Type | Coarse |
Product Details
Shipping Information
| Height | 2.29 |
|---|---|
| Length | 11.68 |
| Width | 8.64 |
| HS Code | 7318158020 |
|---|---|
| Country Of Origin | TW |
| Weight | 0.574200 |
