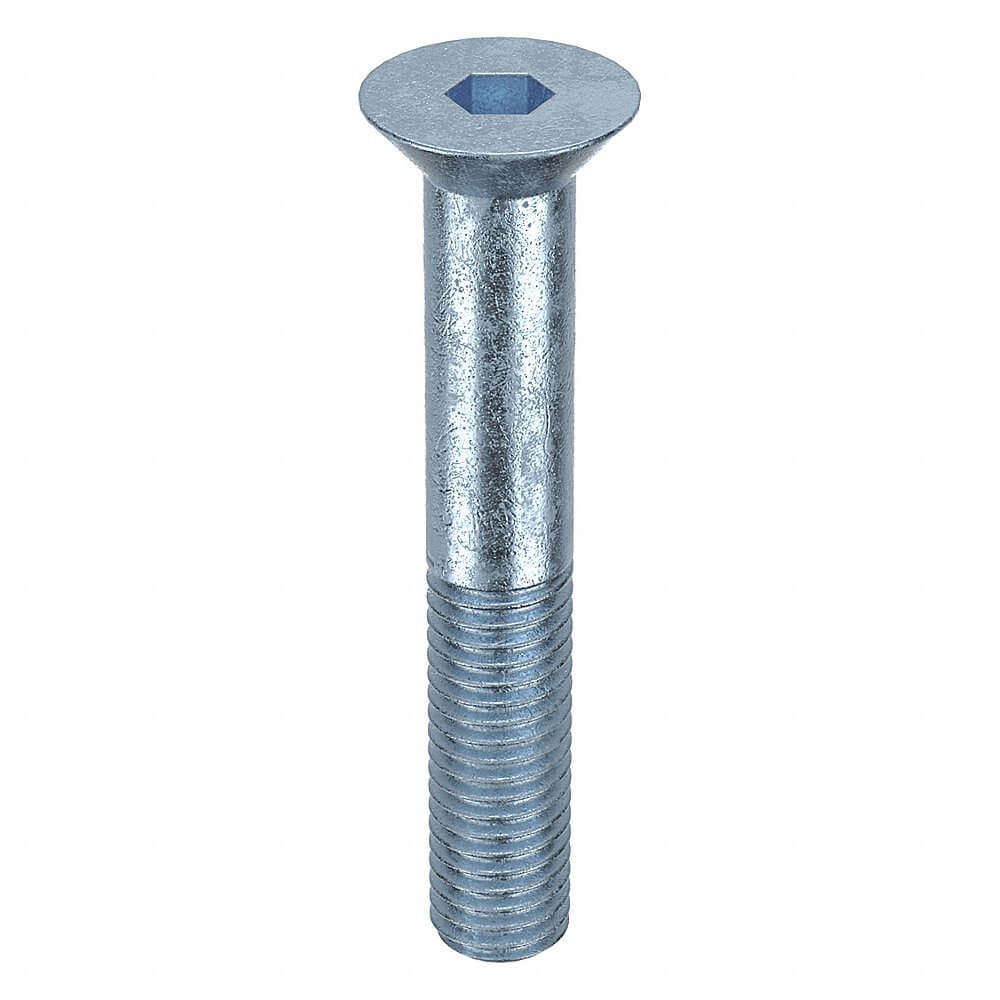

APPROVED VENDOR U07415.050.0300 Socket Head Cap Screw, 1/2 In - 13 Thread Size, Flat, 3 In Lg., 1/2 In Head Ht., Zn Plated, 5PK
Item: AB8NDT
Model: U07415.050.0300
20 In Stock
Ships within 2 days via
5.00% off
£23.87/pkg. of 5
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Combined Material & Grade | Grade Steel |
|---|---|
| Countersink Angle | 82° |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 5 |
| Drive Size | 5/16" |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C37-C44 |
| Head Dia. | 3/4" |
| Head Height | 1/2" |
| Head Type | Flat |
| Length | 3" |
| Material | Steel |
| Material Type | Steel |
|---|---|
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 135000 psi |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 1 1/2" |
| Screw Length | 3" |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 135000 psi |
| Thread Direction | Right Hand |
| Thread Length | 1 1/2" |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Product Details
Socket Head Cap Screw
Shipping Information
| height | 2.54 |
|---|---|
| length | 21.01 |
| width | 16.69 |
| hs code | 7318158045 |
|---|---|
| country of origin | TW |
| weight | 0.344700 |
Related Products
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Screw Length | Display Qty | Thread Direction | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

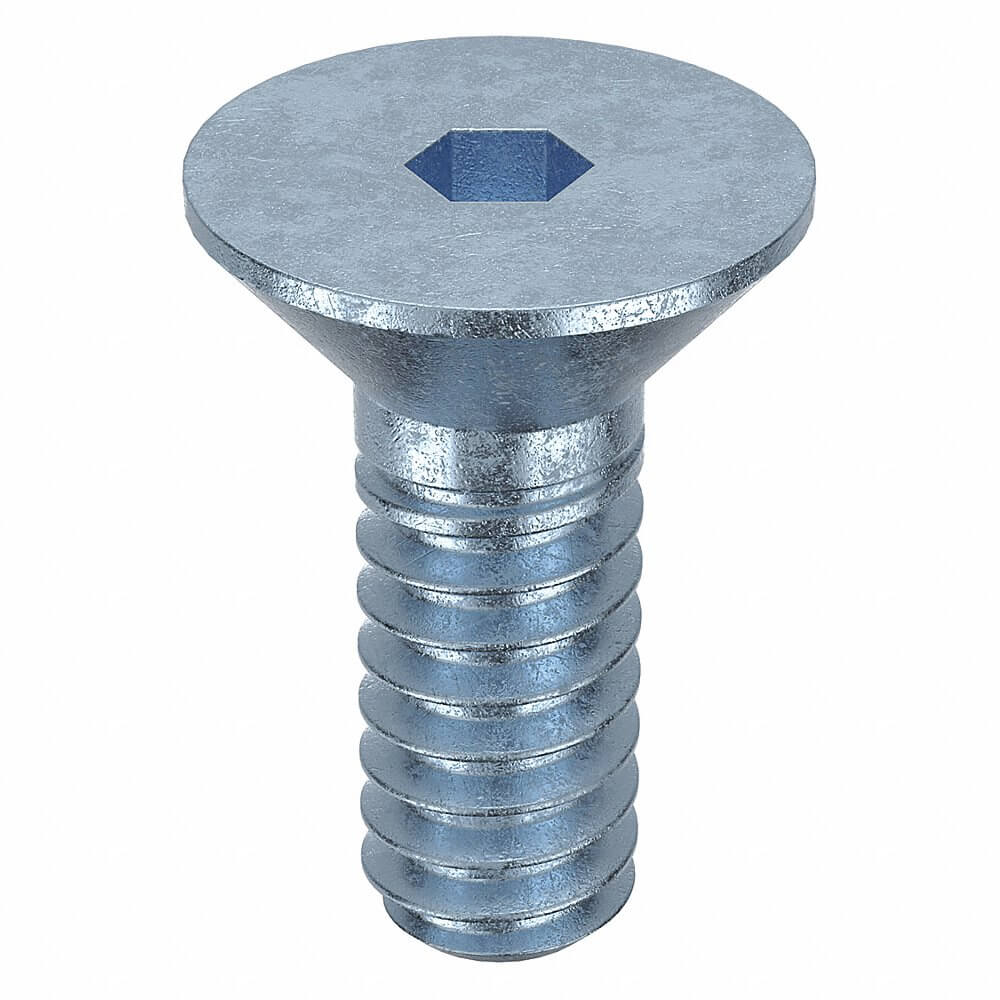

| A | U07415.011.0025 | #4-40 | Fully Threaded | 1/16" | 1/4" | 0.093" | 1/4" | 100 | Right Hand | 9.53 | |

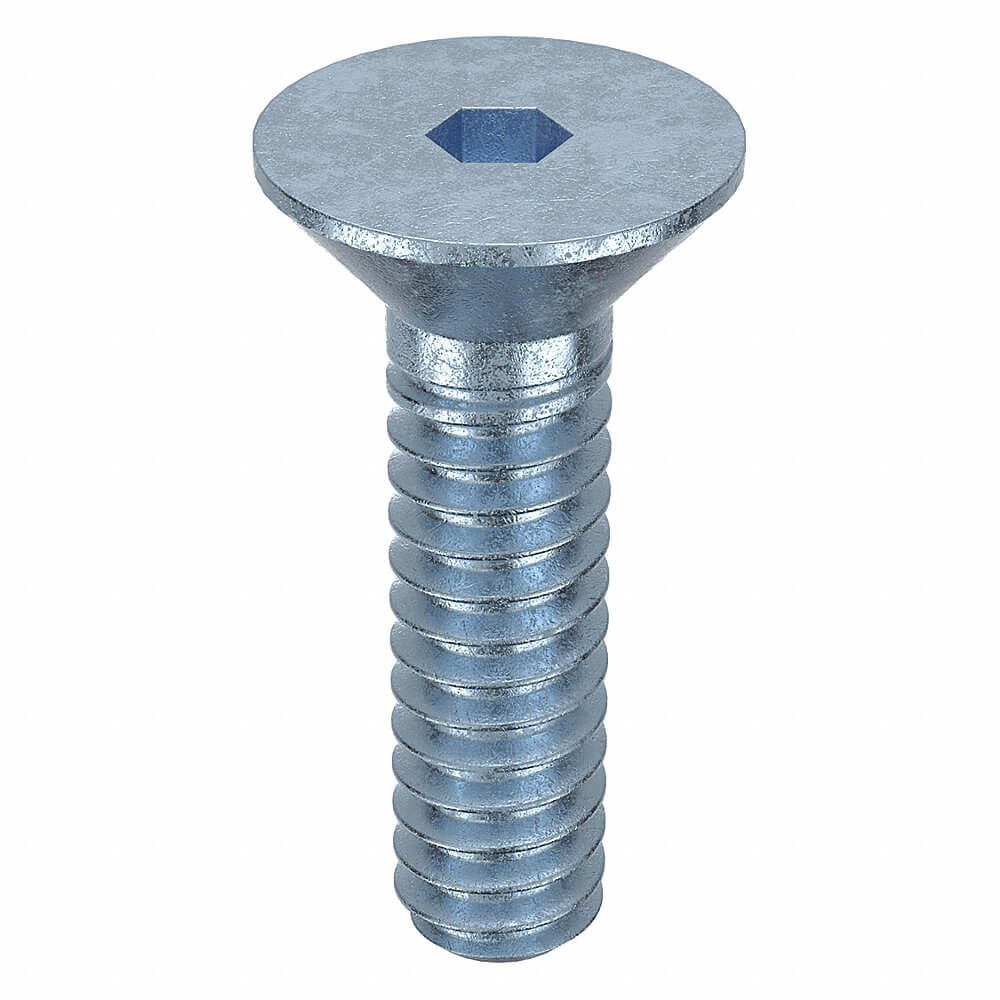

| B | U07415.011.0037 | #4-40 | Fully Threaded | 1/16" | 1/4" | 0.093" | 3/8" | 100 | Right Hand | 10.89 | |

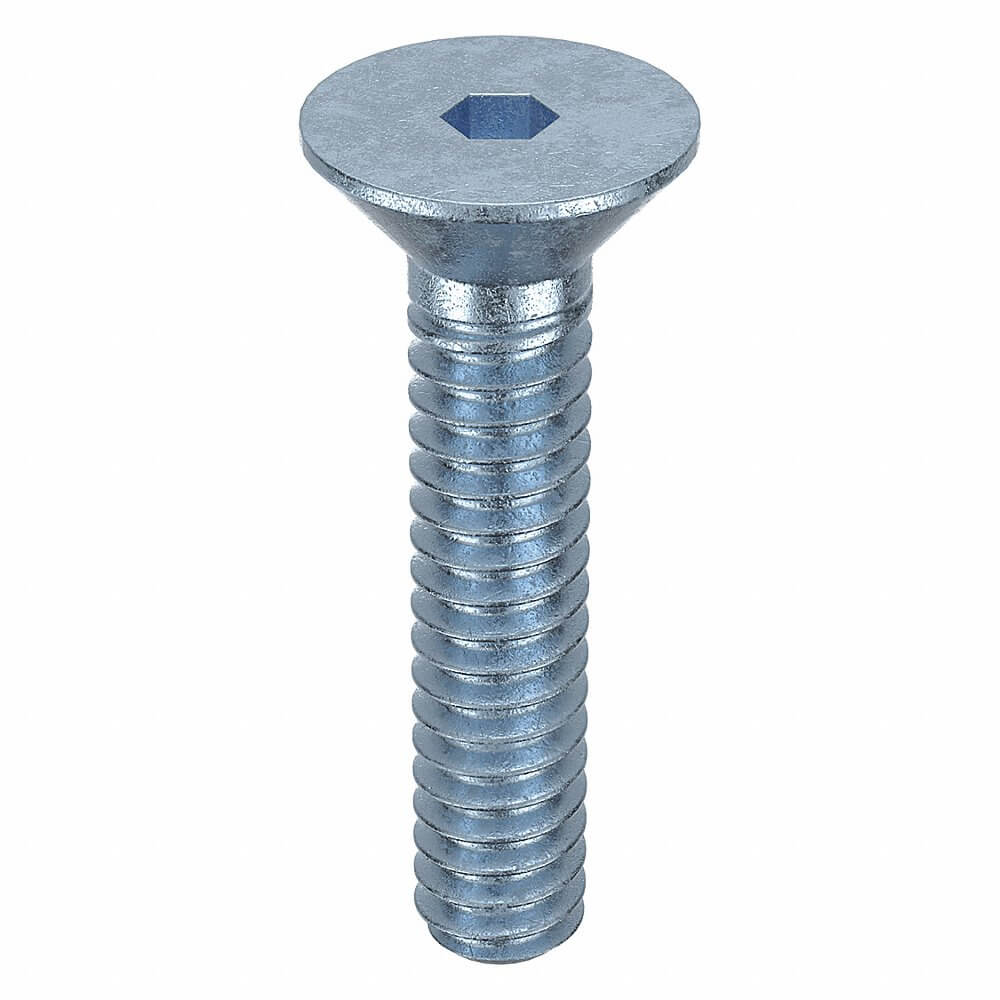

| C | U07415.011.0050 | #4-40 | Fully Threaded | 1/16" | 1/4" | 0.093" | 1/2" | 100 | Right Hand | 11.99 | |
| D | U07415.011.0062 | #4-40 | Fully Threaded | 1/16" | 1/4" | 0.093" | 5/8" | 100 | Right Hand | 13.03 | |
| D | U07415.011.0075 | #4-40 | Fully Threaded | 1/16" | 1/4" | 0.093" | 3/4" | 100 | Right Hand | 14.51 | |
| D | U07415.013.0025 | #6-32 | Fully Threaded | 5/64" | 1/4" | 1/8" | 1/4" | 100 | Right Hand | 10.91 | |
| E | U07415.013.0037 | #6-32 | Fully Threaded | 5/64" | 0.307" | 0.097" | 3/8" | 100 | Right Hand | 11.65 |
