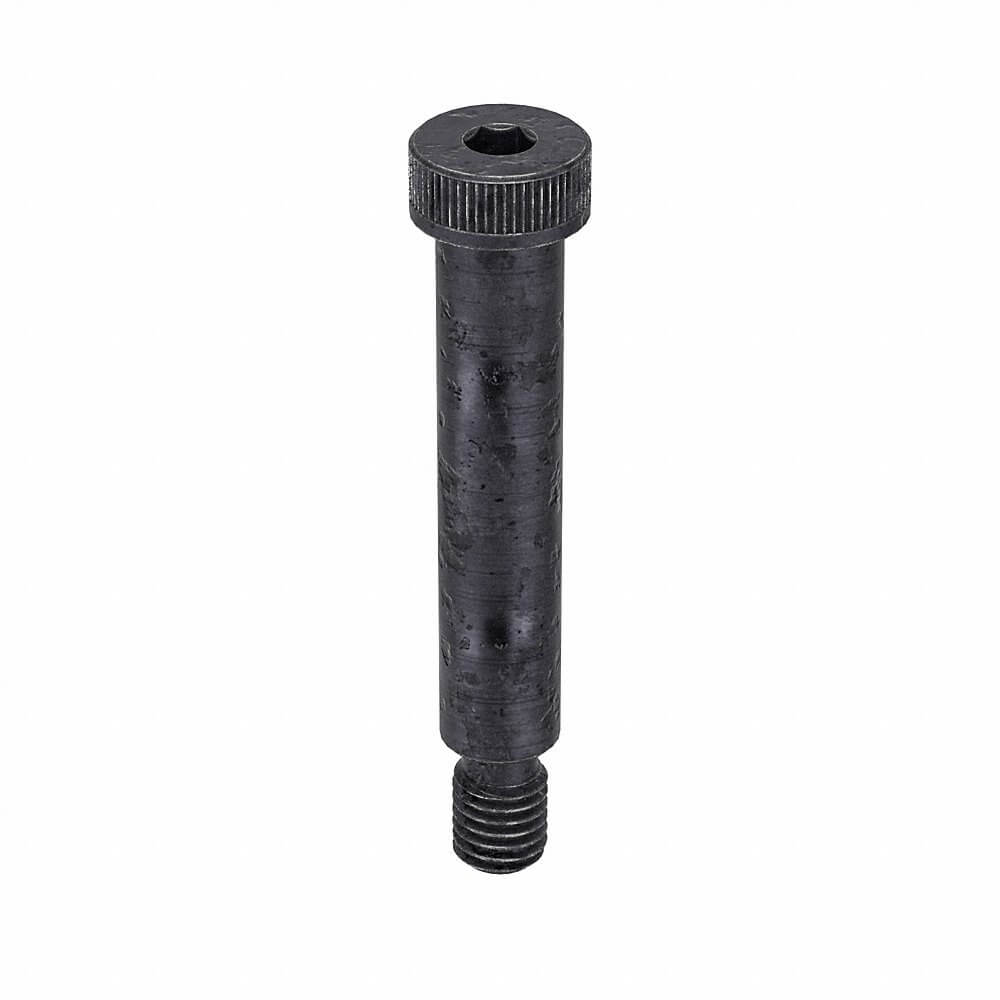

APPROVED VENDOR U07111.062.0300 Shoulder Screw, 1/2 In - 13 Thread Size, 3 In Shoulder Lg., 3/8 In Head Ht., Plain
Item: AA9BTF
Model: U07111.062.0300
29 In Stock
Ships within 2 days via
5.00% off
£10.31/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class 3A |
|---|---|
| Dimensional Standards | ASME B18.3 |
| Display Qty | 1 |
| Drive Size | 5/16" |
| Drive Type | Socket |
| Finish | Plain |
| Hardness | Rockwell 32-43 |
| Head Dia. | 7/8" |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Alloy Steel |
| Min. Tensile Strength | 140000 psi |
| Precision Screw | No |
|---|---|
| Rockwell Hardness | C32 to C43 |
| Shear Strength | 84000 psi |
| Shoulder Dia. | 5/8" |
| Shoulder Diameter Tolerance | 0.004" to 0" |
| Shoulder Length | 3" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 140000 psi |
| Thread Fit | 3A |
| Thread Length | 3/4" |
| Type | Standard Shoulder Screw |
Product Details
Shoulder Screw
Shipping Information
| height | 6.6 |
|---|---|
| length | 9.14 |
| width | 9.4 |
| hs code | 7318158069 |
|---|---|
| country of origin | TW |
| weight | 0.169200 |
Related Products
| Style | Model | Thread Size | Shoulder Length | Shoulder Dia. | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Drive Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U07111.025.0025 | #10-24 | 1/4" | 1/4" | -0.005" to +0.005" | 3/8" | 3/16" | ASME B18.3 | 1/8" | 17.00 | |
| B | U07111.025.0062 | #10-24 | 5/8" | 1/4" | -0.005" to +0.005" | 3/8" | 3/16" | ASME B18.3 | 1/8" | 19.90 | |
| C | U07111.025.0087 | #10-24 | 7/8" | 1/4" | -0.005" to +0.005" | 3/8" | 3/16" | ASME B18.3 | 1/8" | 7.56 | |
| D | U07111.025.0175 | #10-24 | 1 3/4" | 1/4" | -0.005" to +0.005" | 3/8" | 3/16" | ASME B18.3 | 1/8" | 16.43 | |
| E | U07111.025.0200 | #10-24 | 2" | 1/4" | -0.005" to +0.005" | 3/8" | 3/16" | ASME B18.3 | 1/8" | 17.54 | |
| F | U07111.025.0225 | #10-24 | 2 1/4" | 1/4" | -0.005" to +0.005" | 3/8" | 3/16" | ASME B18.3 | 1/8" | 13.78 | |
| G | U07111.025.0250 | #10-24 | 2 1/2" | 1/4" | -0.005" to +0.005" | 3/8" | 3/16" | ASME B18.3 | 1/8" | 17.37 |
