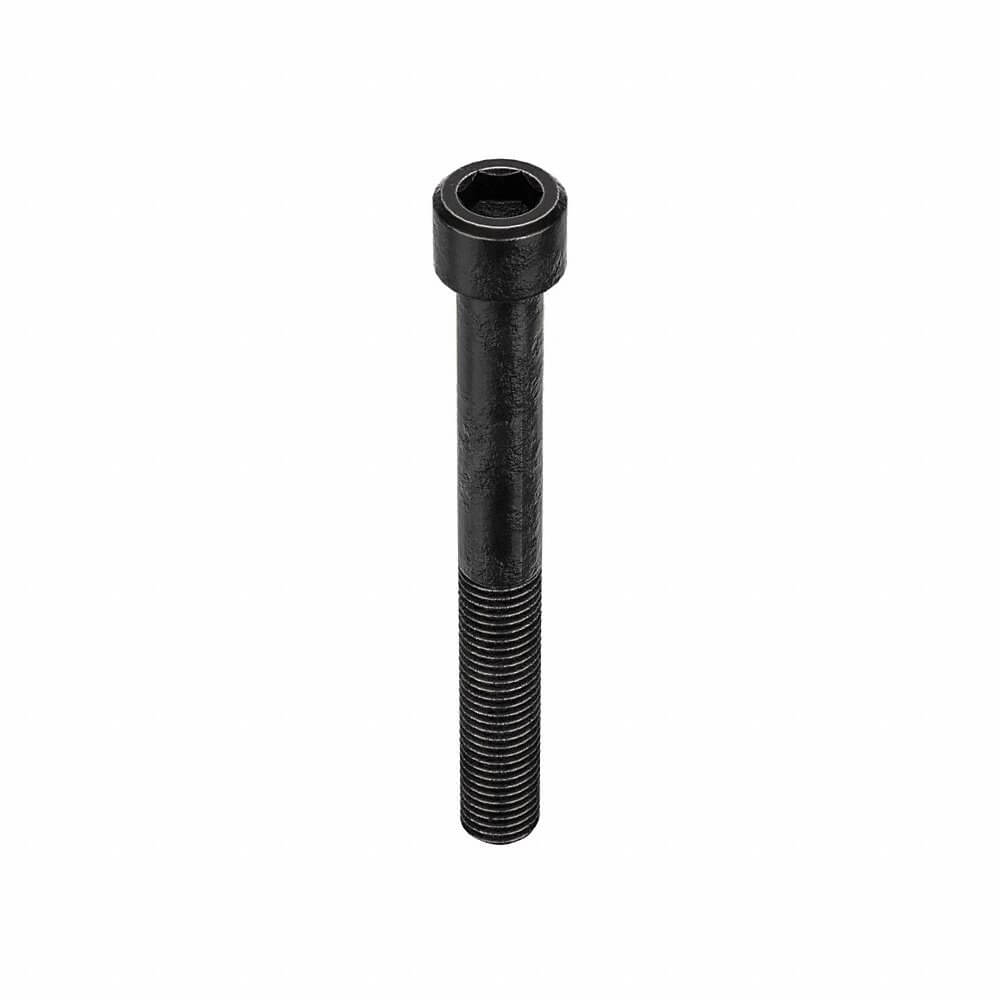

APPROVED VENDOR U07000.075.0650 Socket Head Cap Screw, 3/4 In - 10 Thread Size, Cyl., 6 1/2 In Lg., 3/4 In Head Ht., Steel
Item: AB7CAD
Model: U07000.075.0650
25 In Stock
Ships within 2 days via
5.00% off
£13.61/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Combined Material & Grade | Grade Steel |
|---|---|
| Dimensional Standards | ASME B18.3 |
| Display Qty | 1 |
| Drive Size | 5/8" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 1 1/8" |
| Head Diameter | 1.125" |
| Head Height | 3/4" |
| Head Type | Standard |
| Length | 6 1/2" |
| Material | Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
|---|---|
| Maximum Temperature | 550°F |
| Min. Tensile Strength | 170000 psi |
| Minimum Temperature | -50°F |
| Minimum Thread Length | 2" |
| Screw Length | 6 1/2" |
| System Of Measurement | Imperial |
| Temp. Range | -50°F to +550°F |
| Tensile Strength | 170000 psi |
| Thread Direction | Right Hand |
| Thread Length | 2" |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Product Details
Socket Head Cap Screw
Shipping Information
| height | 2.54 |
|---|---|
| length | 21.01 |
| width | 16.69 |
| hs code | 7318158045 |
|---|---|
| country of origin | TW |
| weight | 0.446400 |
Related Products
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Min. Tensile Strength | Hardness | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U07000.008.0012 | #2-56 | Fully Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 29.76 | |
| B | U07000.008.0062 | #2-56 | Fully Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 34.59 | |
| C | U07000.008.0075 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 39.27 | |
| D | U07000.008.0087 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 60.15 | |
| E | U07000.008.0100 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 73.53 | |
| F | U07000.009.0075 | #3-48 | Partially Threaded | 5/64" | 0.161" | 0.099" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 27.43 | |
| G | U07000.011.0175 | #4-40 | Partially Threaded | 3/32" | 0.183" | 0.112" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 28.95 |
