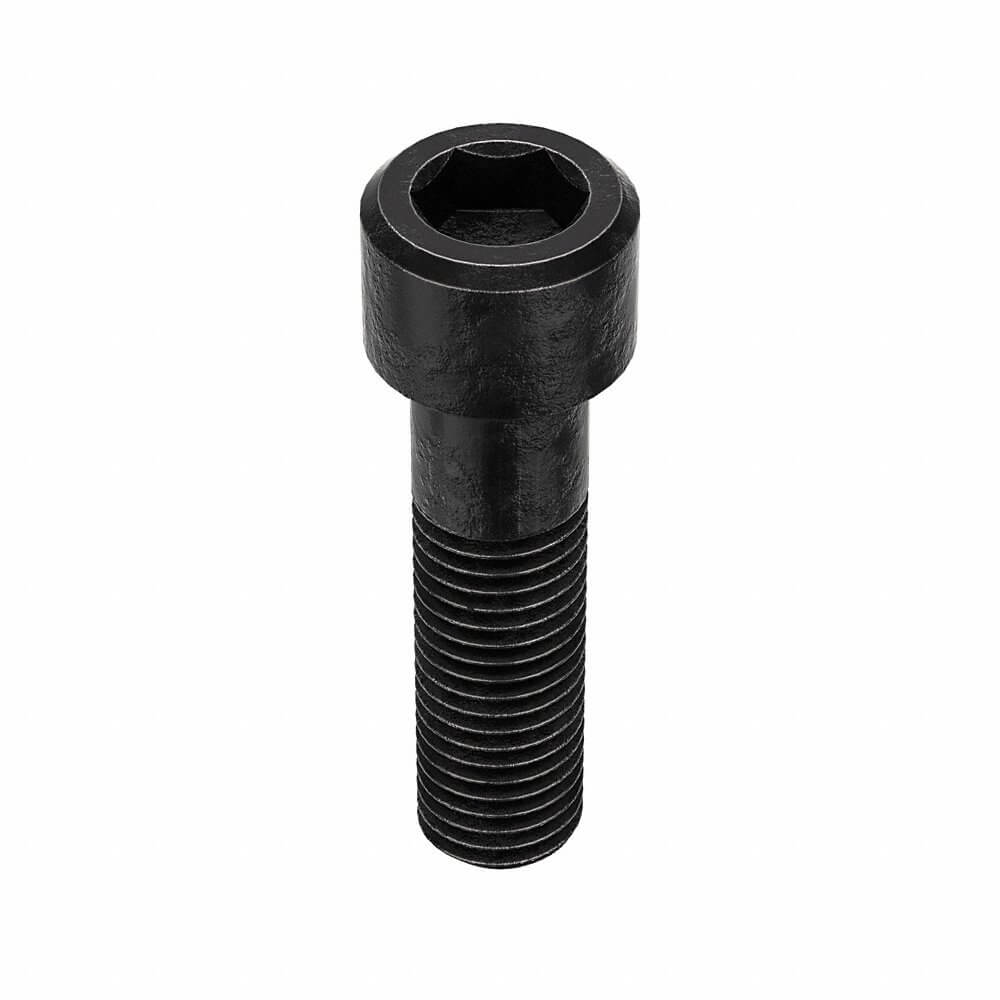

APPROVED VENDOR U07000.025.0112 Socket Head Cap Screw, 1/4 In - 20 Thread Size, Cyl., 1 1/8 In Lg., 1/4 In Head Ht., Blk Oxide, Alloy Steel, 100PK
Item: AB8LJY
Model: U07000.025.0112
14 In Stock
Ships within 2 days via
5.00% off
£30.16/pkg. of 100
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Combined Material & Grade | Grade Steel |
|---|---|
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 3/16" |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 3/8" |
| Head Diameter | 0.375" |
| Head Height | 1/4" |
| Length | 1 1/8" |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 170000 psi |
|---|---|
| Minimum Temperature | -58°F |
| Minimum Thread Length | 1" |
| Screw Length | 1 1/8" |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 170000 psi |
| Thread Direction | Right Hand |
| Thread Length | 1" |
| Thread Size | 1/4"-20 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 21.01 |
| Width | 16.69 |
| HS Code | 7318158045 |
|---|---|
| Country Of Origin | TW |
| Weight | 0.992200 |
