APPROVED VENDOR U07000.019.0150 Socket Head Cap Screw, 10-24 Thread Size, Cyl., 1 1/2 In Lg., 0.19 In Head Ht., Blk Oxide, CS, 100PK
Item: AE2GDF
Model: U07000.019.0150
26 In Stock
Ships within 2 days via
5.00% off
£37.85/pkg. of 100
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Combined Material & Grade | Grade Steel |
|---|---|
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 5/32" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 5/16" |
| Head Diameter | 0.312" |
| Head Height | 0.19" |
| Head Type | Standard |
| Length | 1 1/2" |
| Material | Steel |
| Material Type | Steel |
| Maximum Temperature | 300°F |
|---|---|
| Min. Tensile Strength | 180000 psi |
| Minimum Temperature | -65°F |
| Minimum Thread Length | 7/8" |
| Screw Length | 1 1/2" |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +300°F |
| Tensile Strength | 180000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 7/8" |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Product Details
Socket Head Cap Screw
Shipping Information
| height | 2.54 |
|---|---|
| length | 21.01 |
| width | 16.69 |
| hs code | 7318156040 |
|---|---|
| country of origin | TW |
| weight | 0.684400 |
Related Products
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Min. Tensile Strength | Hardness | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

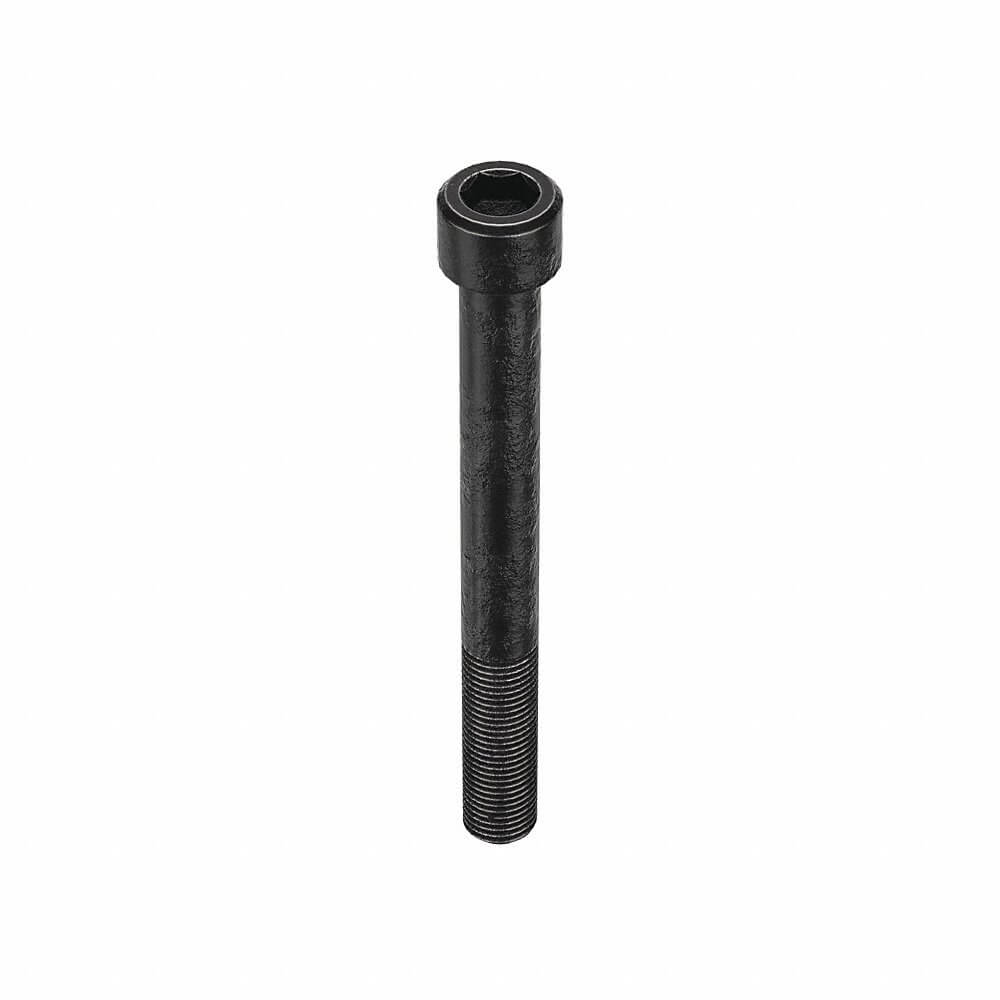

| A | U07040.037.0350 | 3/8"-24 | Partially Threaded | 5/16" | 0.562" | 3/8" | 180000 psi | Rockwell C37-C45 | -20°F to +400°F | 19.83 | |
| B | U07000.075.0375 | 3/4"-10 | Partially Threaded | 5/8" | 1 1/8" | 3/4" | 180000 psi | Rockwell C37-C45 | -20°F to +400°F | 35.88 | |

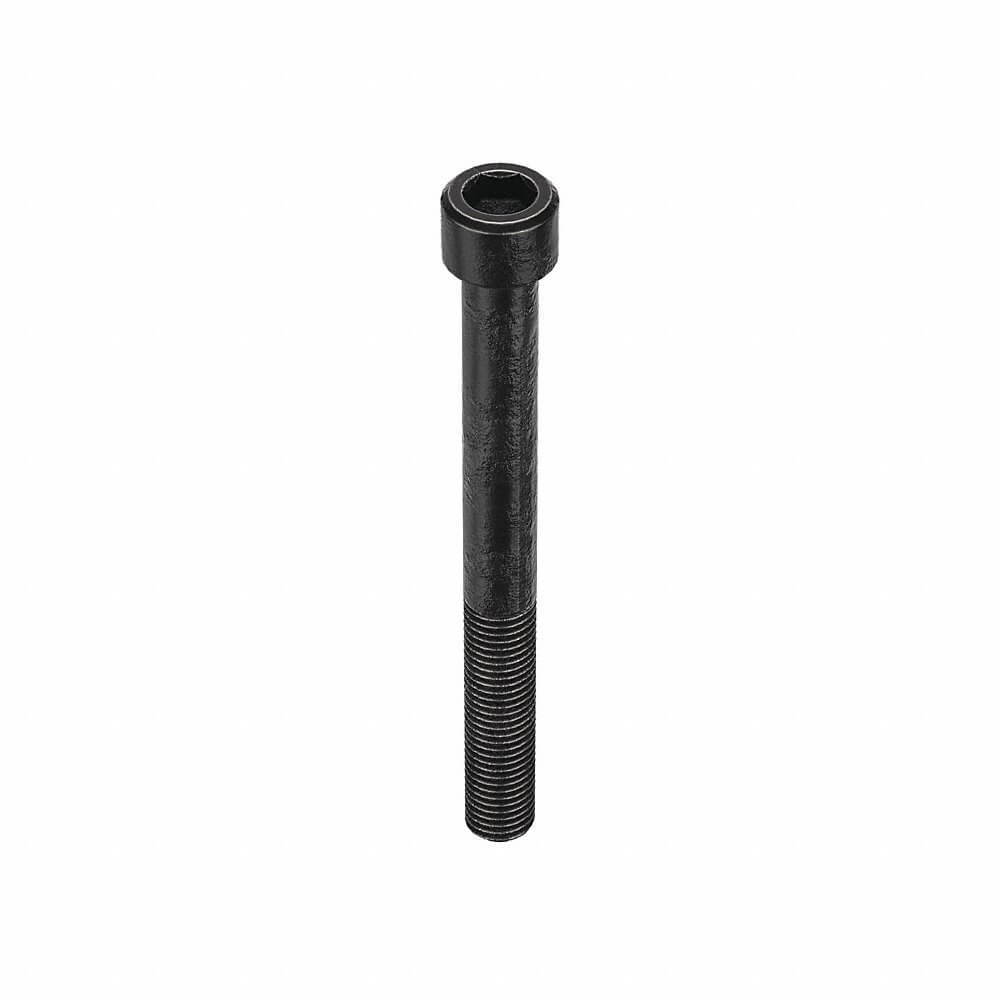

| C | U07000.075.0750 | 3/4"-10 | Partially Threaded | 5/8" | 1 1/8" | 3/4" | 180000 psi | Rockwell C37-C45 | -20°F to +400°F | 14.45 | |

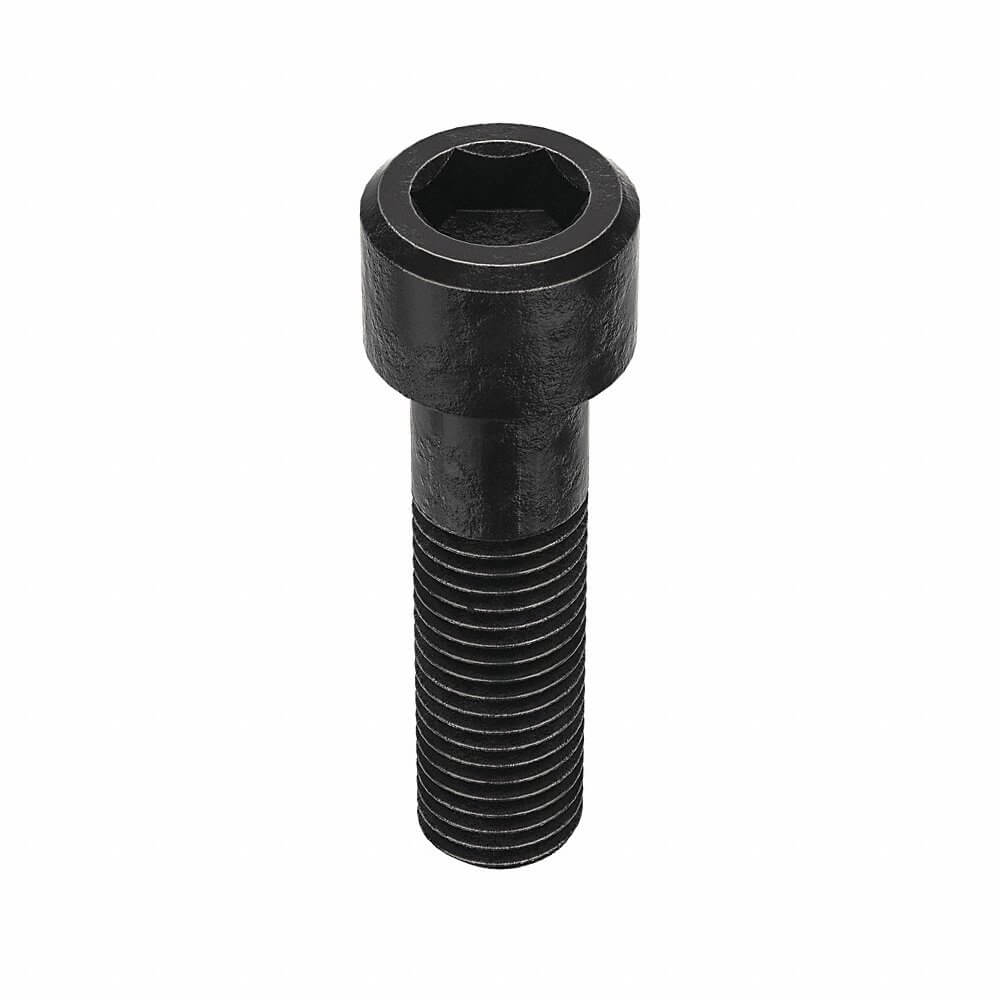

| D | U07000.100.0850 | 1"-8 | Partially Threaded | 3/4" | 1 1/2" | 1" | 180000 psi | Rockwell C37-C45 | -20°F to +400°F | 35.47 | |

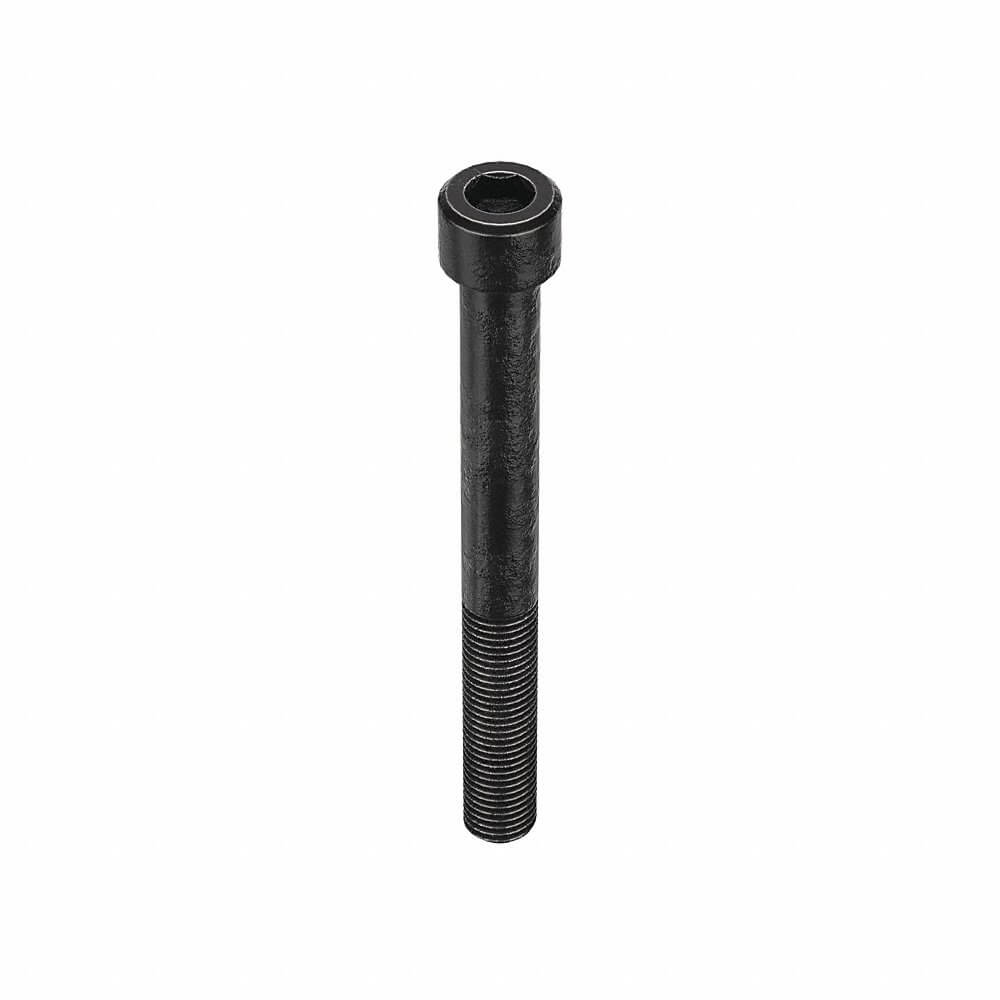

| E | U07000.100.0950 | 1"-8 | Partially Threaded | 3/4" | 1 1/2" | 1" | 180000 psi | Rockwell C37-C45 | -20°F to +400°F | 32.81 | |
| F | U07000.100.1100 | 1"-8 | Partially Threaded | 3/4" | 1 1/2" | 1" | 180000 psi | Rockwell C37-C45 | -20°F to +400°F | 59.53 | |

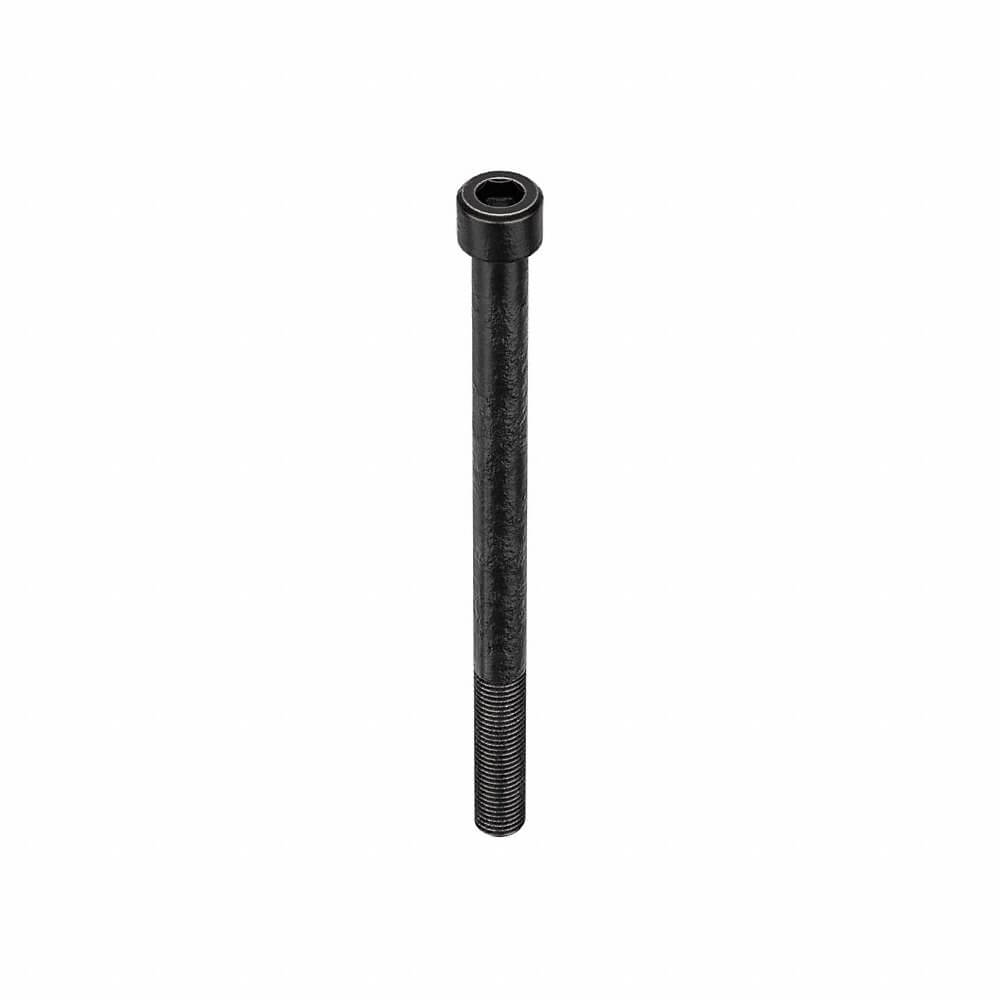

| G | U07000.100.1400 | 1"-8 | Partially Threaded | 3/4" | 1 1/2" | 1" | 180000 psi | Rockwell C37-C45 | -20°F to +400°F | 97.58 |
