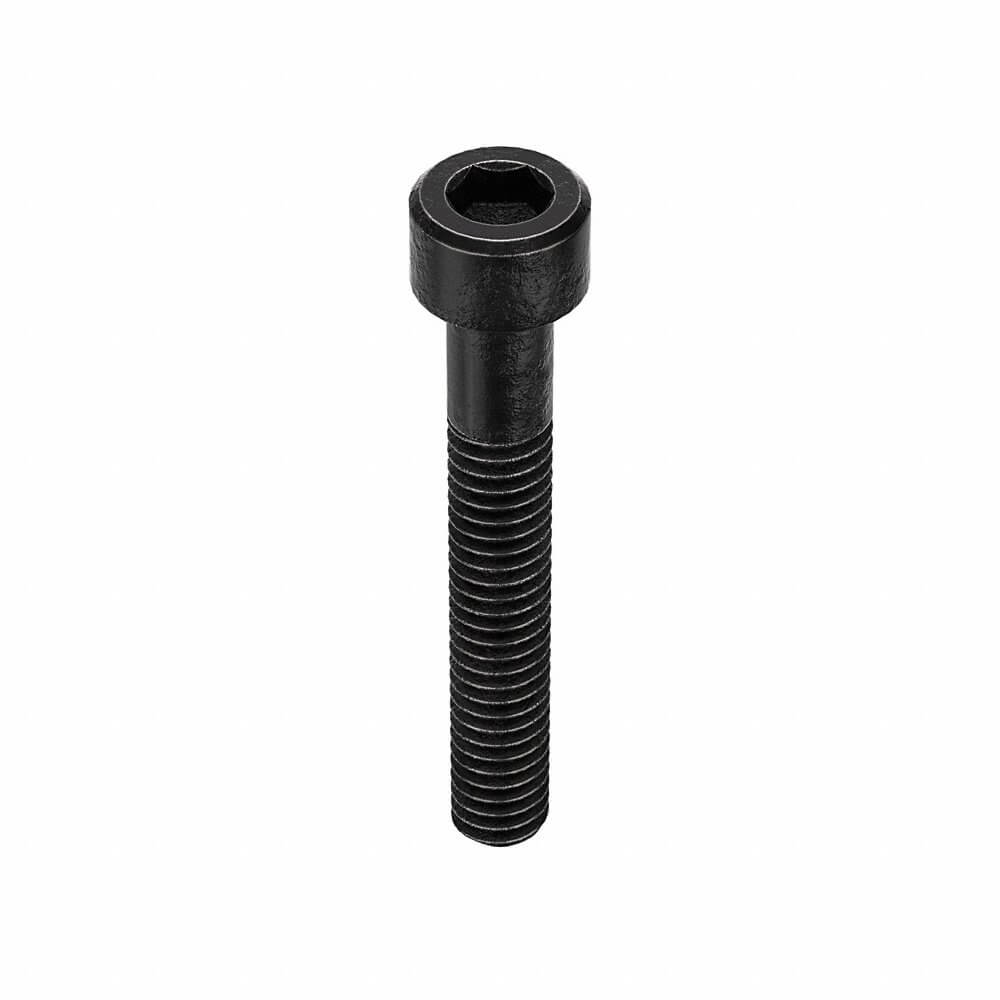

APPROVED VENDOR U07000.016.0112 Socket Head Cap Screw, 8-32 Thread Size, Cylindrical, 1 1/8 In Lg., 100PK
Item: AB8LJN
Model: U07000.016.0112
19 In Stock
Ships within 2 days via
5.00% off
£15.4/pkg. of 100
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Combined Material & Grade | Grade Steel |
|---|---|
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 9/64" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 0.27" |
| Head Height | 0.164" |
| Head Type | Standard |
| Length | 1 1/8" |
| Material | Steel |
| Material Type | Steel |
| Maximum Temperature | 302°F |
|---|---|
| Min. Tensile Strength | 170000 psi |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 7/8" |
| Screw Length | 1 1/8" |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 170000 psi |
| Thread Direction | Right Hand |
| Thread Length | 7/8" |
| Thread Size | #8-32 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 21.01 |
| Width | 16.69 |
| HS Code | 7318156040 |
|---|---|
| Country Of Origin | TW |
| Weight | 0.545900 |
