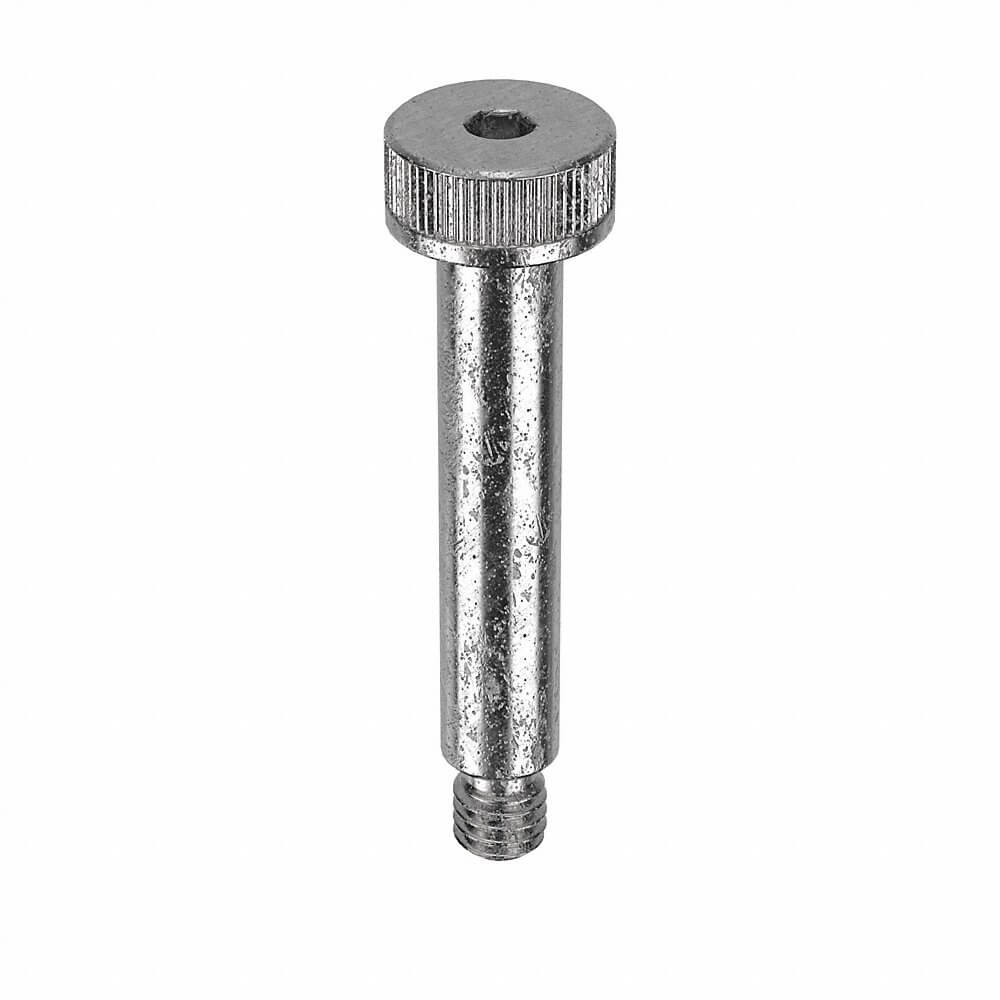

APPROVED VENDOR STR601M5X25 Shoulder Screw, M4x0.7 Thread Size, 25 mm Shoulder Lg., 4 mm Head Ht., Std
Item: AB8JNU
Model: STR601M5X25
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Dimensional Standards | Ampg 2013 Zs.02 |
|---|---|
| Display Qty | 1 |
| Drive Size | 2.5 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B55 |
| Head Dia. | 9 mm |
| Head Height | 4 mm |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 70000 psi |
|---|---|
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shoulder Dia. | 5 mm |
| Shoulder Diameter Tolerance | -0.04 mm to 0 mm |
| Shoulder Length | 25 mm |
| Shoulder Length Tolerance | -0 mm to +0.25 mm |
| System Of Measurement | Metric |
| Tensile Strength | 70000 psi |
| Thread Fit | Class 5G, Class 6G |
| Thread Length | 4.5 mm |
| Type | Standard Shoulder Screw |
Product Details
Shoulder Screw
Shipping Information
| height | 1.02 |
|---|---|
| length | 3.3 |
| width | 1.02 |
| hs code | 7318156010 |
|---|---|
| country of origin | US |
| weight | 0.004500 |
Related Products
| Style | Model | Thread Size | Shoulder Length | Shoulder Dia. | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Drive Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PAT4410 | #4-40 | 1/8" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 27.01 | |
| B | PAT4411 | #4-40 | 3/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 30.84 | |
| C | PAT4412 | #4-40 | 1/4" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 31.53 | |
| B | PAT4413 | #4-40 | 5/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 31.77 | |
| D | PAT4414 | #4-40 | 3/8" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 31.86 | |
| B | PAT6906SS | #4-40 | 7/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 34.29 | |
| E | PAT6907SS | #4-40 | 1/2" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 31.16 |
