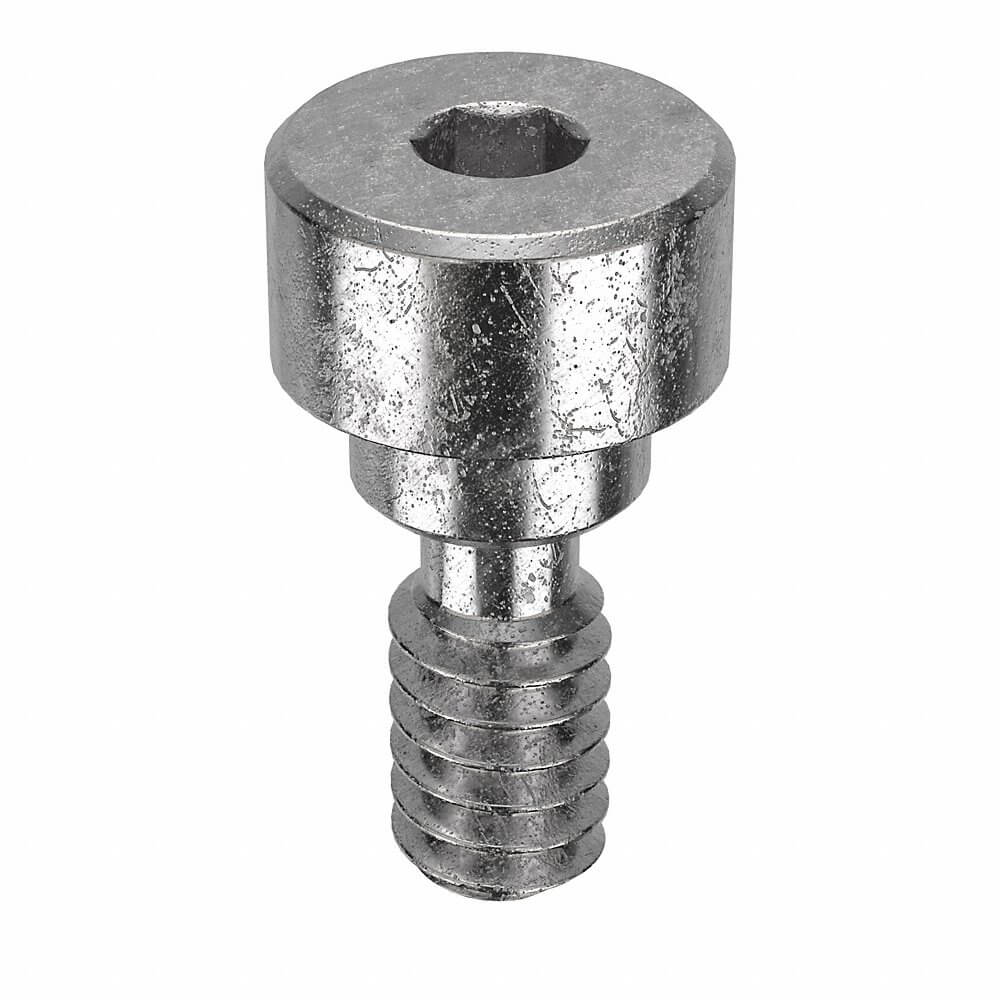

APPROVED VENDOR SBIX0250012-005P1 Shoulder Screw, 10-24 Thread Size, 1/8 In Shoulder Lg., 3/16 In Head Ht., Precision, 5PK
Item: AE4RNF
Model: SBIX0250012-005P1
14 In Stock
Ships within 2 days via
5.00% off
£31.7/pkg. of 5
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class 2A |
|---|---|
| Display Qty | 5 |
| Drive Size | 1/8" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B65 |
| Head Dia. | 3/8" |
| Head Height | 3/16" |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 90000 psi |
|---|---|
| Precision Screw | Yes |
| Rockwell Hardness | B65 |
| Shoulder Dia. | 1/4" |
| Shoulder Diameter Tolerance | 0.004" to 0" |
| Shoulder Length | 1/8" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 90000 psi |
| Thread Fit | 2A |
| Thread Length | 3/8" |
| Type | Precision Shoulder Screw |
Product Details
Shoulder Screw
Shipping Information
| height | 1.02 |
|---|---|
| length | 9.91 |
| width | 3.05 |
| hs code | 7318158030 |
|---|---|
| country of origin | TW |
| weight | 0.022500 |
Related Products
| Style | Model | Thread Size | Shoulder Length | Shoulder Dia. | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Drive Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PAT4410 | #4-40 | 1/8" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 22.96 | |
| B | PAT4411 | #4-40 | 3/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 26.21 | |
| C | PAT4412 | #4-40 | 1/4" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 26.80 | |
| B | PAT4413 | #4-40 | 5/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 27.00 | |
| D | PAT4414 | #4-40 | 3/8" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 27.08 | |
| B | PAT6906SS | #4-40 | 7/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 29.15 | |
| E | PAT6907SS | #4-40 | 1/2" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 26.49 |
