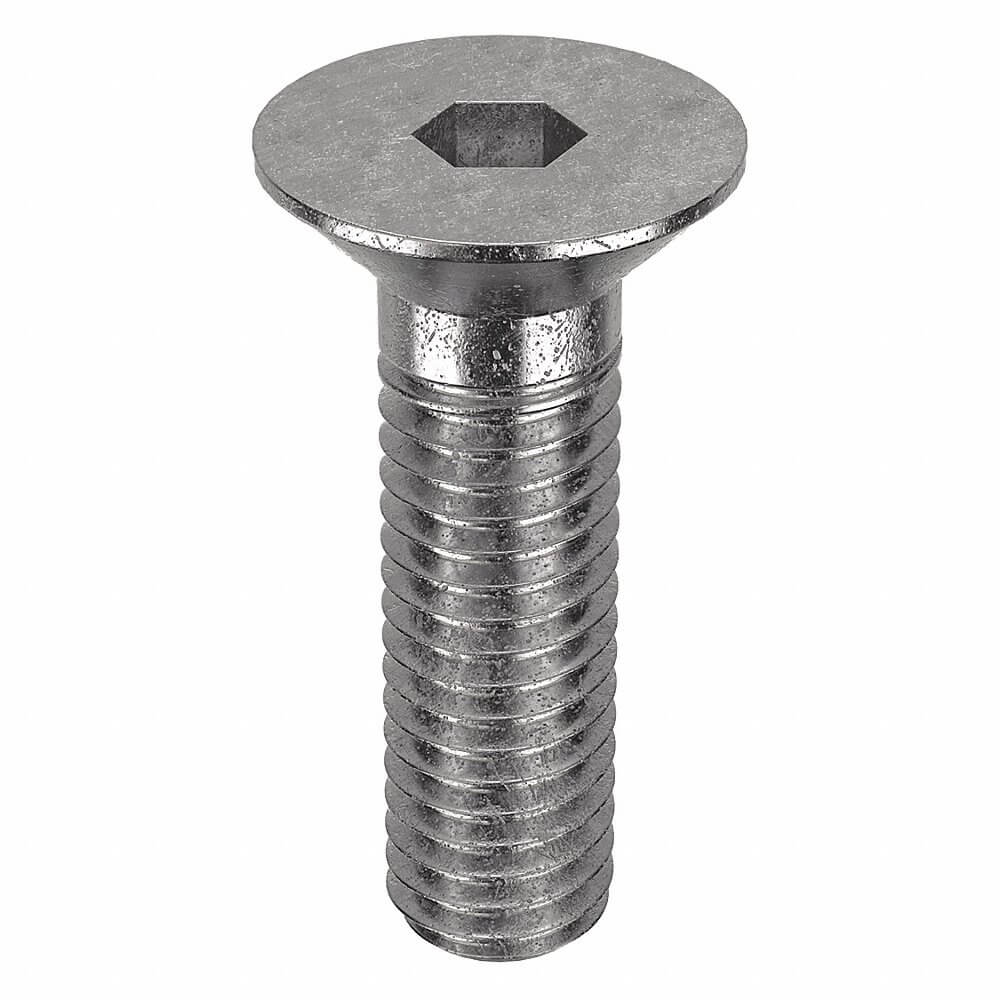

APPROVED VENDOR M55060.050.0016 Metric Socket Head Cap Screw, M5x0.8 Thread Size, Flat, 16mm Lg., 3.2mm Head Ht., Gr. A4, 50PK
Item: AB8NTH
Model: M55060.050.0016
23 In Stock
Ships within 2 days via
5.00% off
£15.96/pkg. of 50
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Combined Grade | Grade 316 |
|---|---|
| Combined Material | Stainless Steel |
| Countersink Angle | 90° |
| Dimensional Standards | DIN 7991 |
| Display Qty | 50 |
| Drive Size | 3 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade A4 |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 11.2 mm |
| Head Height | 3.2 mm |
| Head Type | Flat |
| Length | 16 mm |
| Material | Stainless Steel |
|---|---|
| Material Grade | Grade 316 |
| Material Grade/class | 316 |
| Material Type | Stainless Steel |
| Min. Tensile Strength | 700 N/sq. mm |
| Minimum Thread Length | 16 mm |
| Screw Length | 16 mm |
| System Of Measurement | Metric |
| Tensile Strength | 101500 psi |
| Thread Direction | Right Hand |
| Thread Length | 16 mm |
| Thread Size | M5 x 0.8 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 21.01 |
| Width | 16.69 |
| HS Code | 7318156010 |
|---|---|
| Country Of Origin | TW |
| Weight | 0.128200 |
