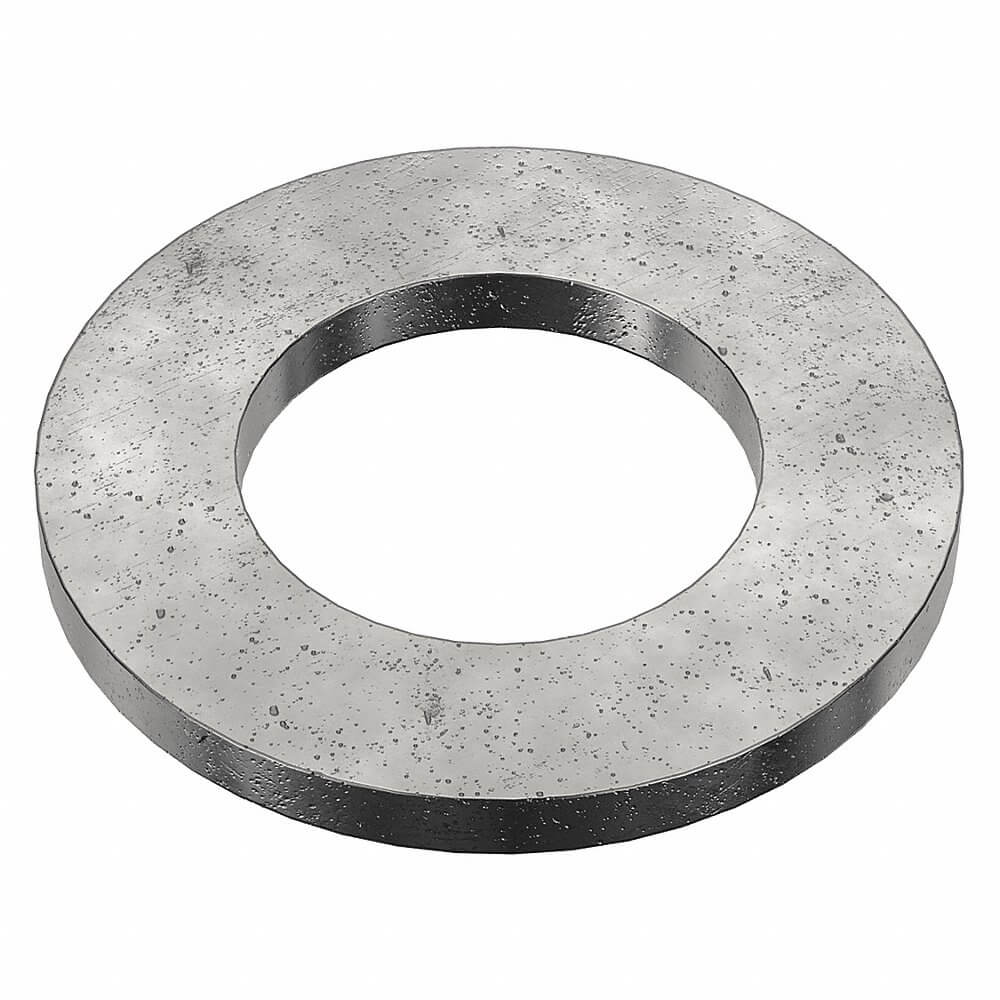

APPROVED VENDOR M38100.330.0001 Flat Washer, M33 Fits Bolt Size, Std, 34 mm I.D., 60 mm O.D., Blk Oxide, 2PK
Item: AB8EVE
Model: M38100.330.0001
25 In Stock
Ships within 2 days via
5.00% off
£3.52/pkg. of 2
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Dimensional Standards | Din 125-1A |
|---|---|
| Finish | Plain |
| Fits Bolt Sizes | M33 |
| Flat Washer Type | Standard |
| For Screw Size | M33 |
| Grade | Grade 2 |
| Inside Dia. | 34 mm |
| Inside Diameter Tolerance | 1.339" to 1.363" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 5 mm |
| Minimum Temperature | -58°C |
|---|---|
| Minimum Thickness | 5 mm |
| Outside Dia. | 60 mm |
| Outside Diameter Tolerance | 2.315" to 2.362" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Thickness | 5 mm |
| Thickness Tolerance | 0.173" to 0.22" |
| Washer Type | Standard Washer |
Product Details
Flat Washer
Shipping Information
| height | 1.27 |
|---|---|
| length | 16.99 |
| width | 16.38 |
| hs code | 7318220000 |
|---|---|
| country of origin | TW |
| weight | 0.149400 |
Related Products
| Style | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Temp. Range | Finish | Washer Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M38100.300.0001 | M30 | 31 mm | 56 mm | 4 mm | 0.146" to 0.169" | - | Plain | Standard Washer | 5.79 | |
| B | M38100.360.0001 | M36 | 37 mm | 66 mm | 5 mm | 0.173" to 0.22" | - | Plain | Standard Washer | 4.54 | |

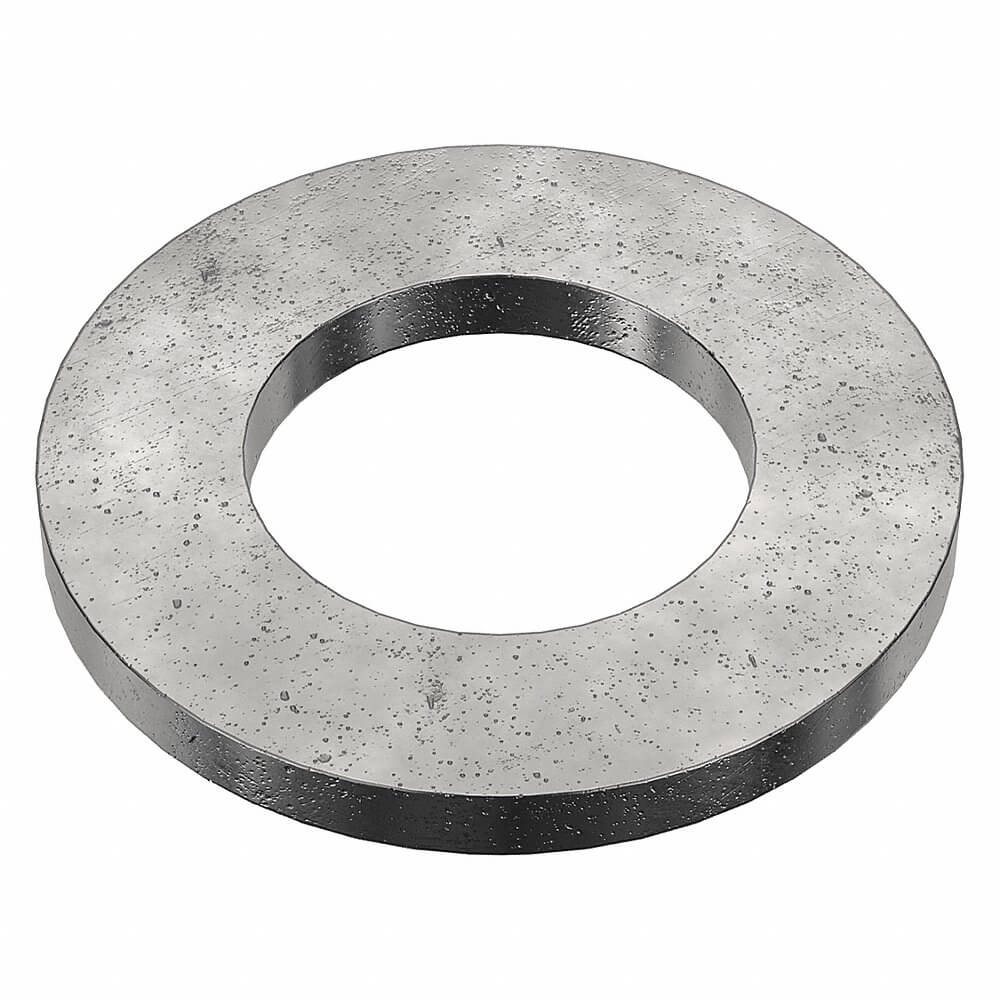

| C | M38100.420.0001 | M42 | 43 mm | 78 mm | 7 mm | 0.236" to 0.315" | - | Plain | Standard Washer | 7.36 | |

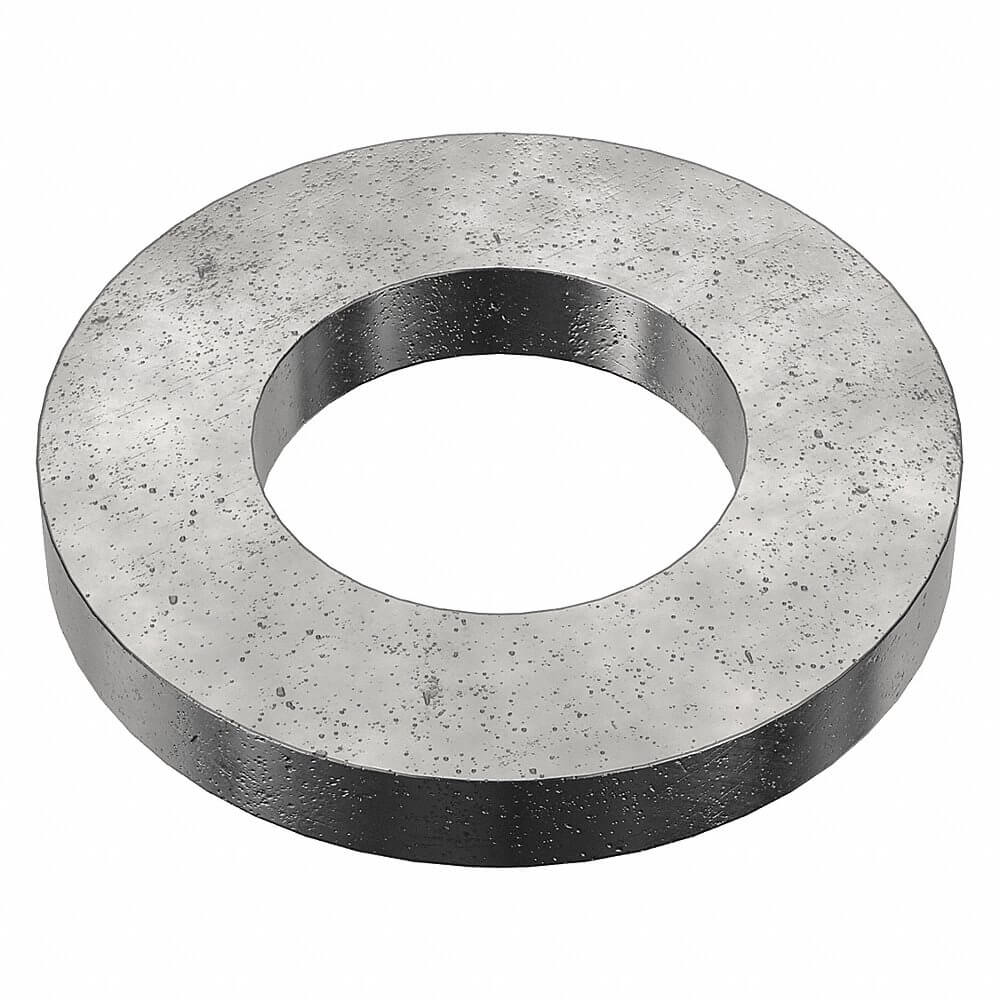

| D | M38100.060.0001 | M6 | 6.4 mm | 12 mm | 1.6 mm | 0.055" to 0.071" | -58°F to +302°F | Plain | Standard Washer | 2.96 | |
| E | M38100.080.0001 | M8 | 8.4 mm | 16 mm | 1.6 mm | 0.055" to 0.071" | -58°F to +302°F | Plain | Standard Washer | 4.14 | |

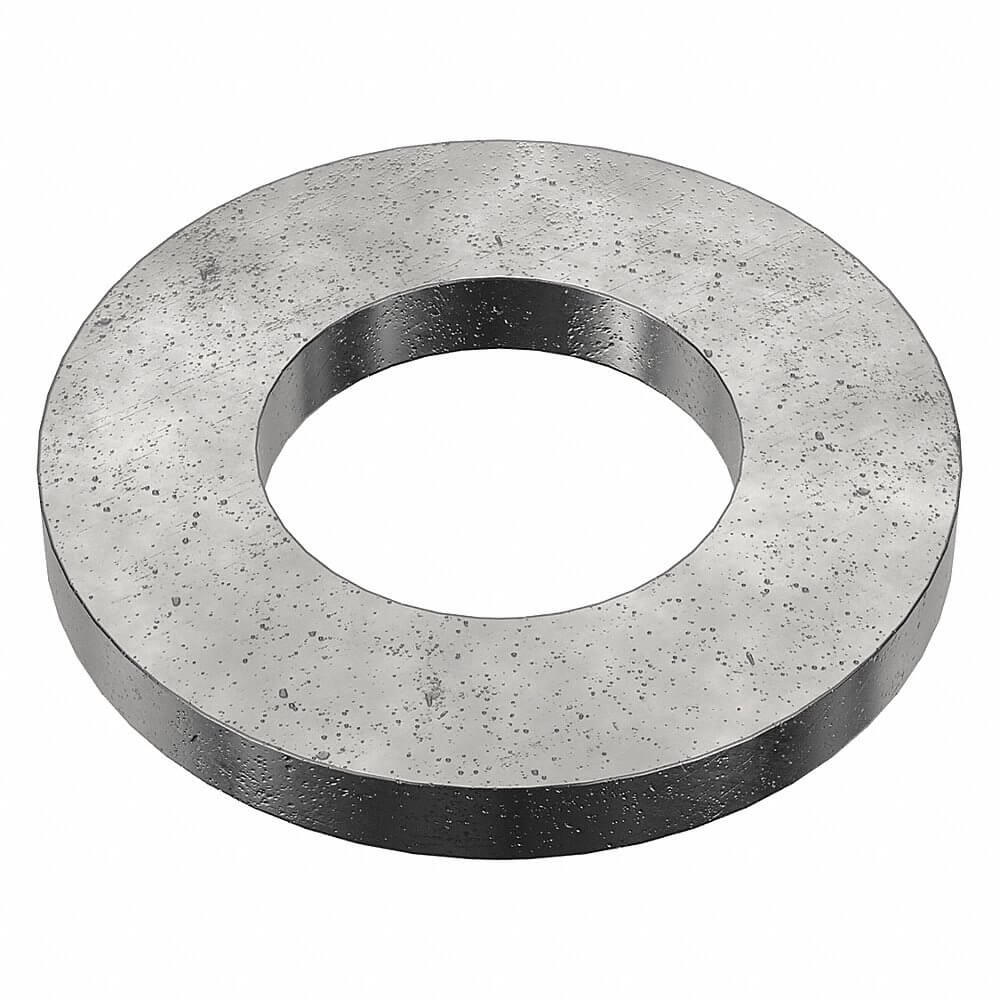

| F | M38100.100.0001 | M10 | 10.5 mm | 20 mm | 2 mm | 0.071" to 0.087" | -58°F to +302°F | Plain | Standard Washer | 9.53 | |
| G | M38100.120.0001 | M12 | 13 mm | 24 mm | 2.5 mm | 0.091" to 0.106" | -58°F to +302°F | Plain | Standard Washer | 6.39 |
