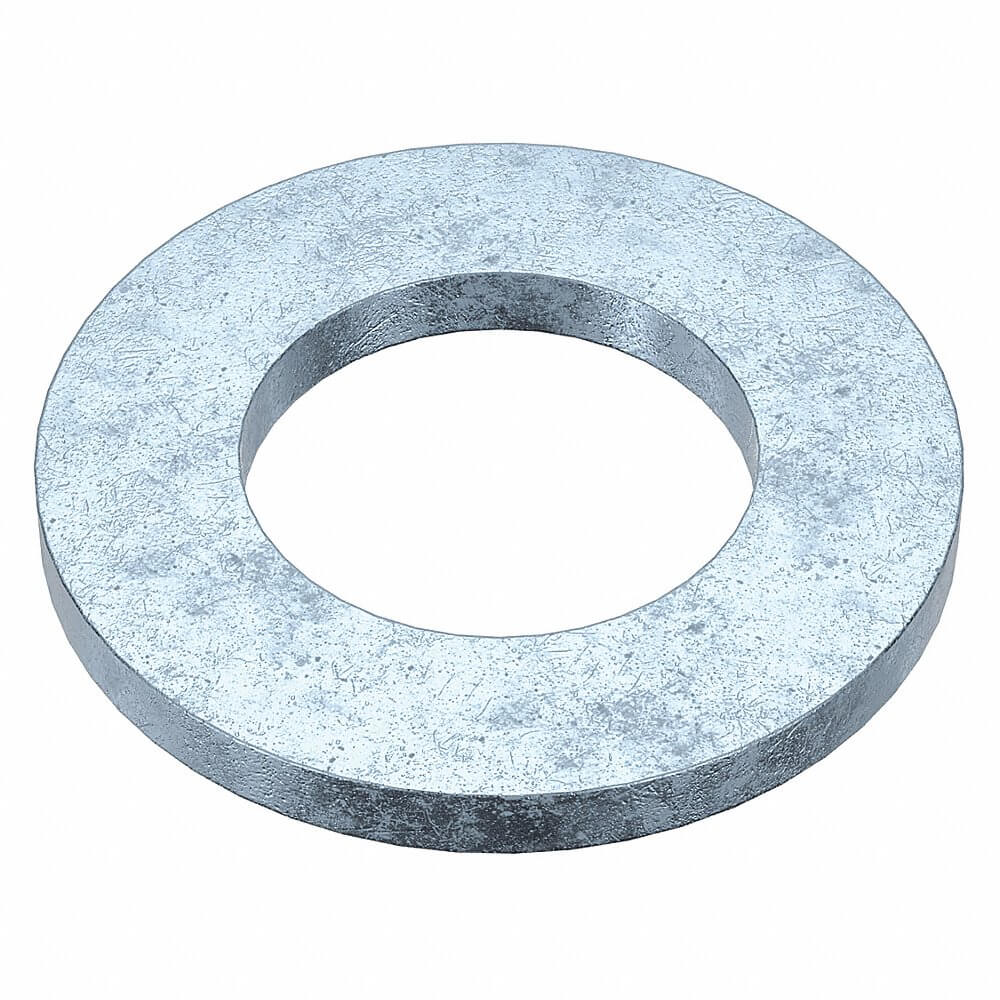

APPROVED VENDOR M38093.180.0001 Flat Washer, M18 Fits Bolt Size, Std, 19 mm I.D., 34 mm O.D., Gr. 200HV, 25PK
Item: AB8EUJ
Model: M38093.180.0001
28 In Stock
Ships within 2 days via
5.00% off
£8.42/pkg. of 25
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Dimensional Standards | Din 125-1A |
|---|---|
| Finish | Zinc Plated |
| Fits Bolt Sizes | M18 |
| Flat Washer Type | Standard |
| For Screw Size | M18 |
| Grade | Grade 200HV |
| Inside Dia. | 19 mm |
| Inside Diameter Tolerance | 0.748" to 0.761" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Grade 200HV |
| Material Quality Standards | Astm A-325 |
| Maximum Temperature | 350°C |
| Maximum Thickness | 3 mm |
| Minimum Temperature | -58°C |
|---|---|
| Minimum Thickness | 3 mm |
| Outside Dia. | 34 mm |
| Outside Diameter Tolerance | 1.314" to 1.339" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 200Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Thickness | 3 mm |
| Thickness Tolerance | 0.106" to 0.13" |
| Washer Type | Standard Washer |
Product Details
Shipping Information
| Height | 1.27 |
|---|---|
| Length | 16.99 |
| Width | 16.38 |
| HS Code | 7318220000 |
|---|---|
| Country Of Origin | TW |
| Weight | 0.364500 |
Related Products
| Style | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Temp. Range | Washer Type | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

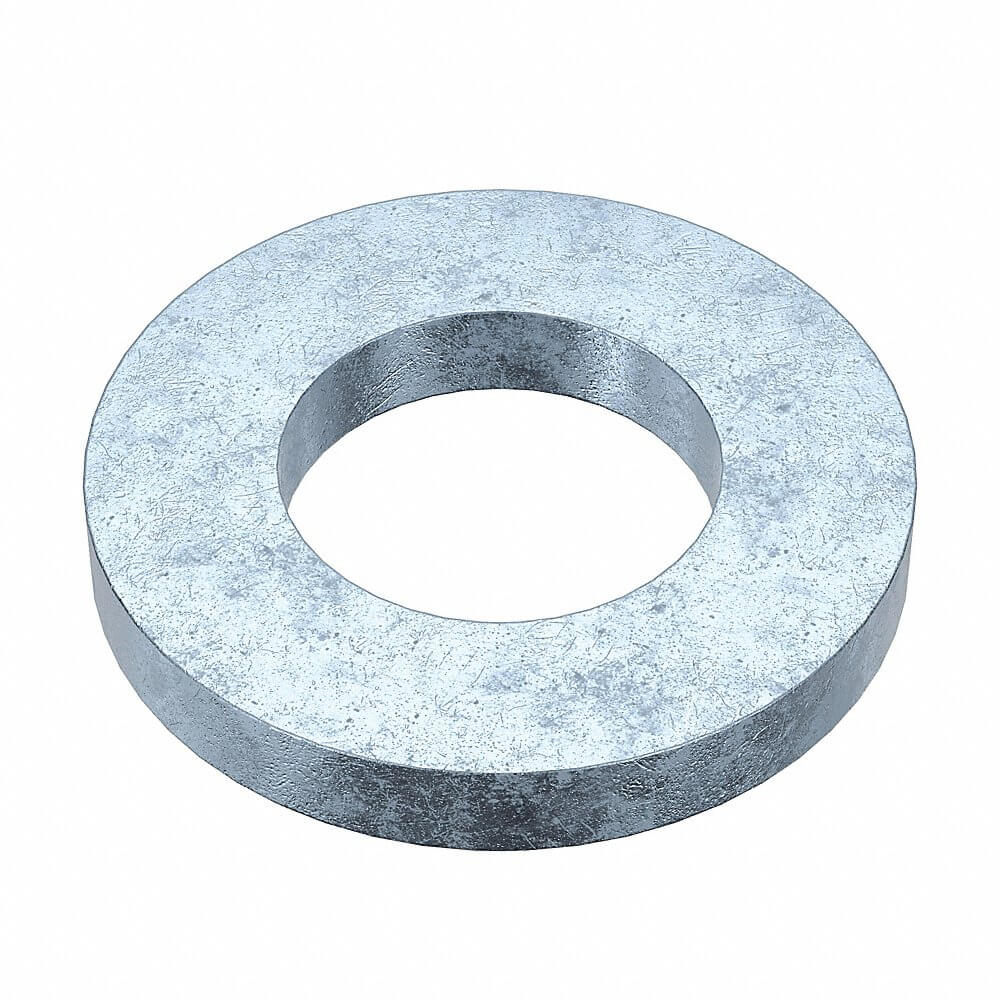

| A | M38093.060.0001 | M6 | 6.4 mm | 12 mm | 1.6 mm | 0.055" to 0.071" | -58°F to +302°F | Standard Washer | Steel | 3.26 | |

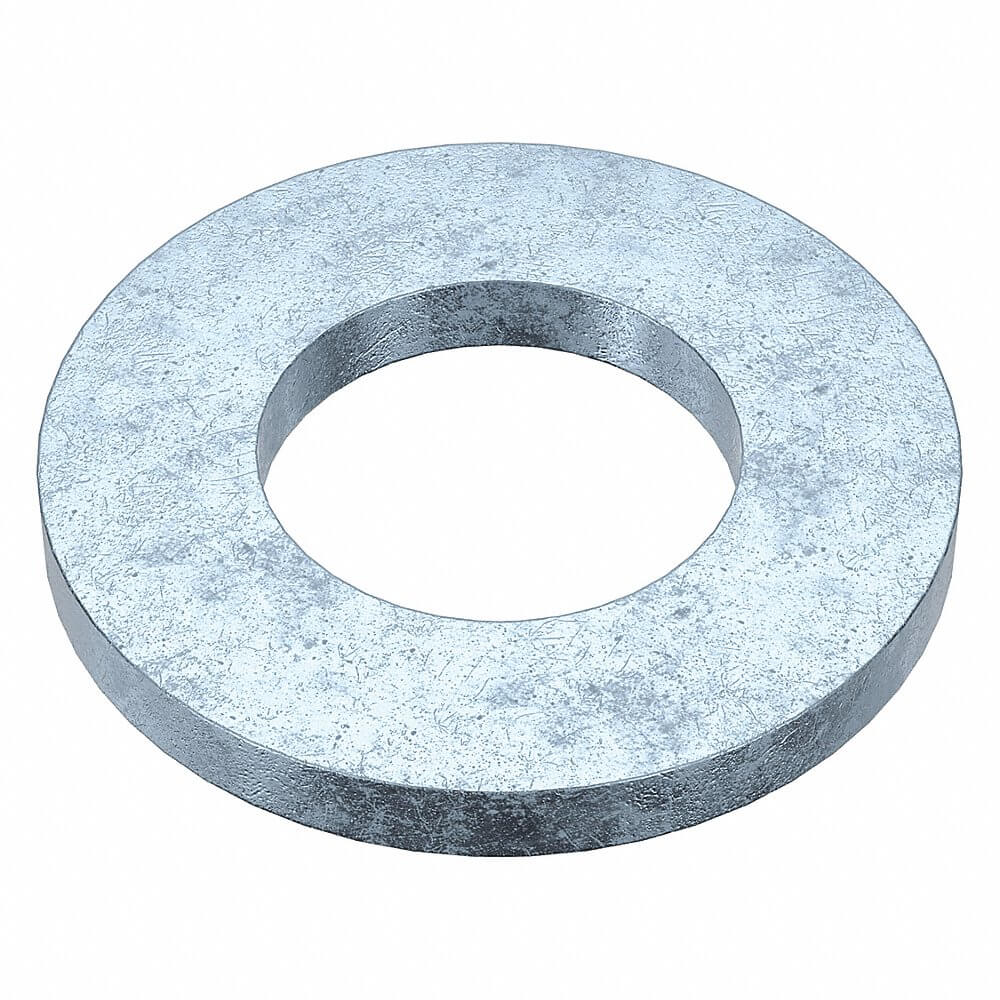

| B | M38093.080.0001 | M8 | 8.4 mm | 16 mm | 1.6 mm | 0.055" to 0.071" | -58°F to +302°F | Standard Washer | Steel | 4.93 | |
| C | M38093.100.0001 | M10 | 10.5 mm | 20 mm | 2 mm | 0.071" to 0.087" | -58°F to +302°F | Standard Washer | Steel | 7.23 | |

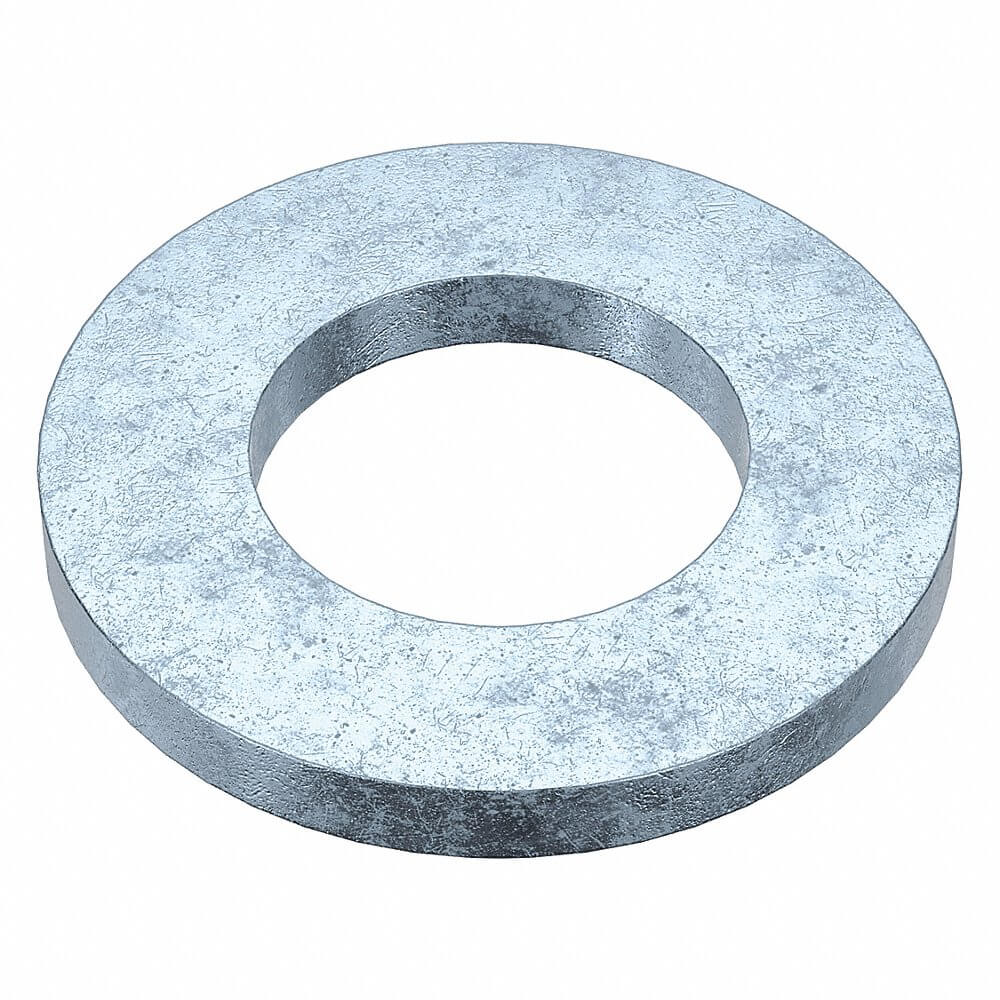

| D | M38093.120.0001 | M12 | 13 mm | 24 mm | 2.5 mm | 0.091" to 0.106" | -58°F to +302°F | Standard Washer | Steel | 6.66 | |

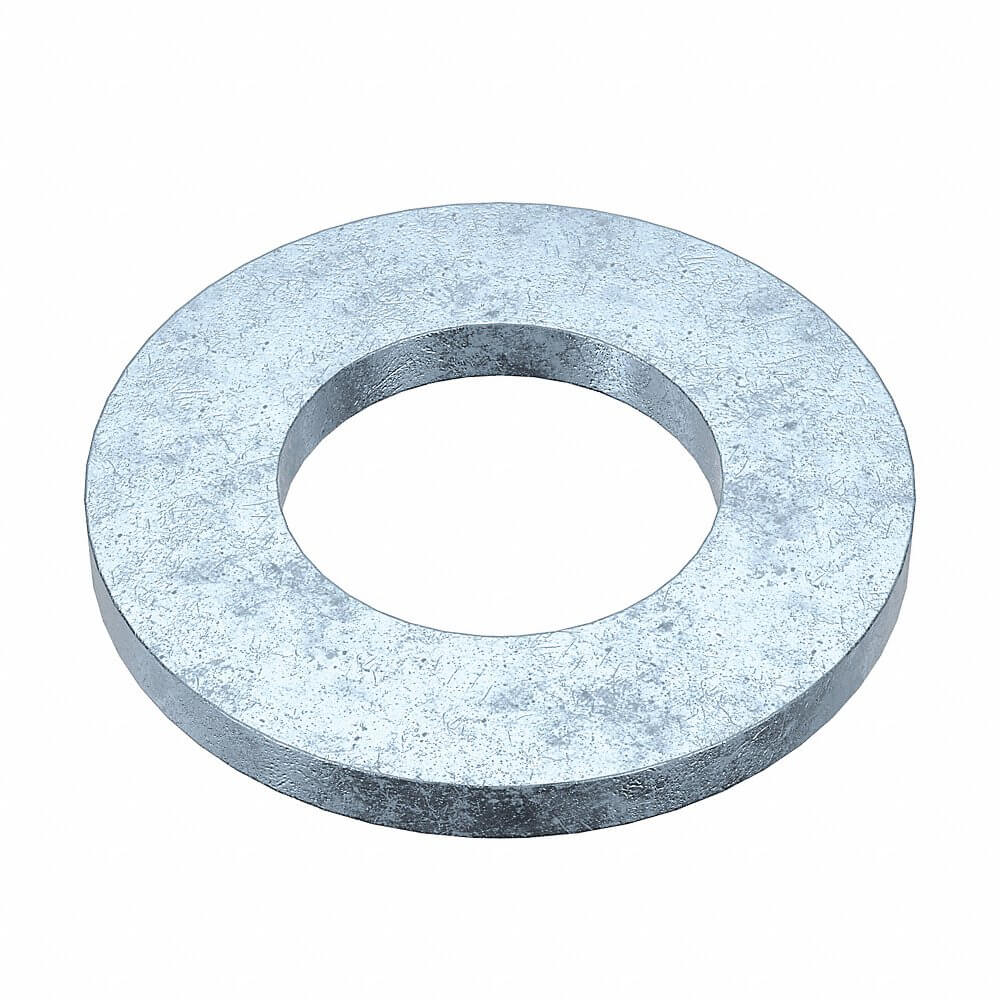

| E | M38093.140.0001 | M14 | 15 mm | 28 mm | 2.5 mm | 0.091" to 0.106" | -58°F to +302°F | Standard Washer | Steel | 8.61 | |

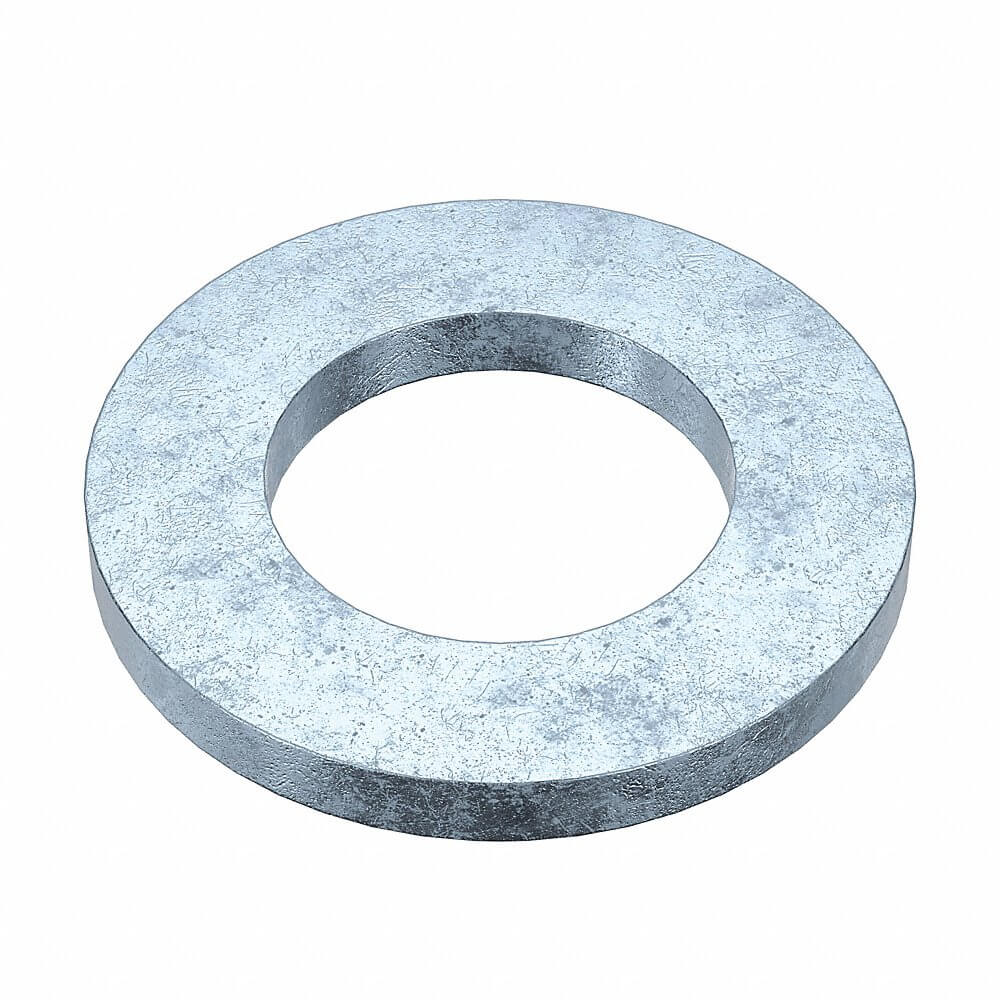

| F | M38093.160.0001 | M16 | 17 mm | 30 mm | 3 mm | 0.106" to 0.13" | -58°F to +302°F | Standard Washer | Steel | 7.23 | |

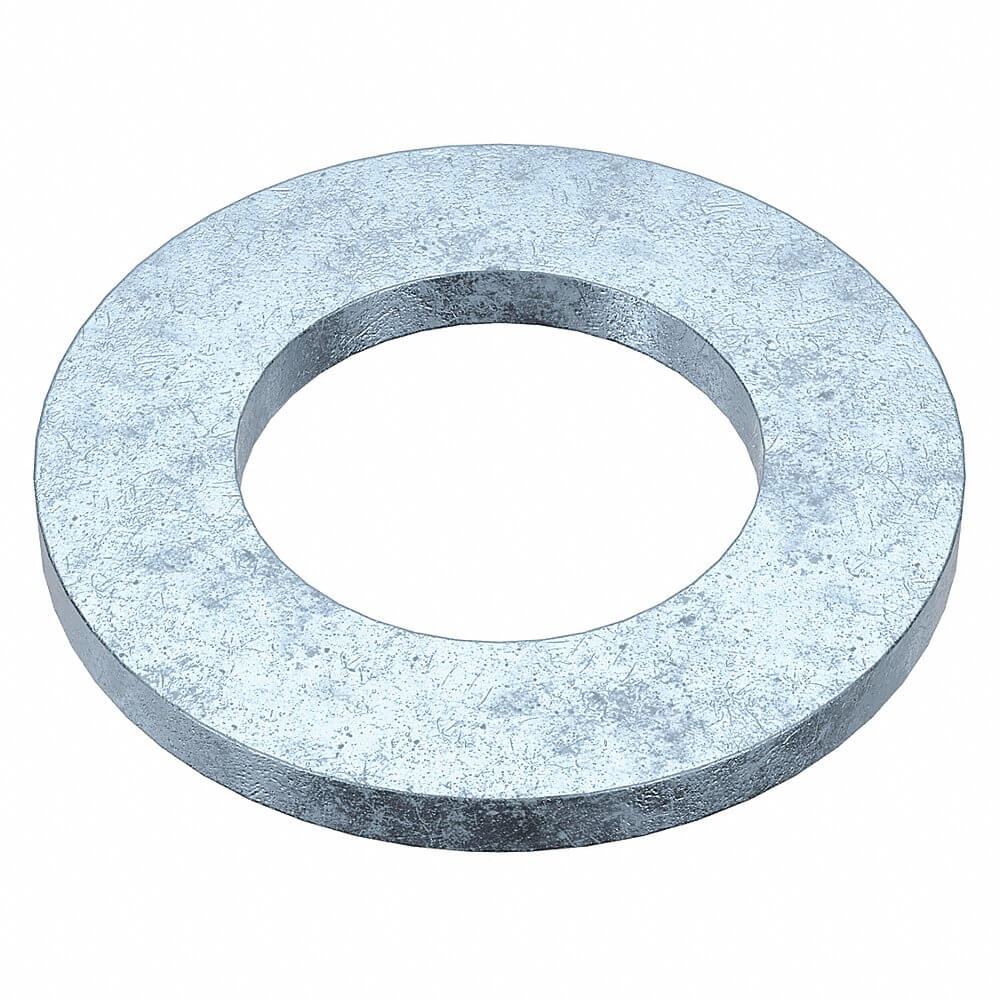

| G | M38093.200.0001 | M20 | 21 mm | 37 mm | 3 mm | 0.106" to 0.13" | -58°F to +302°F | Standard Washer | Steel | 4.84 |
