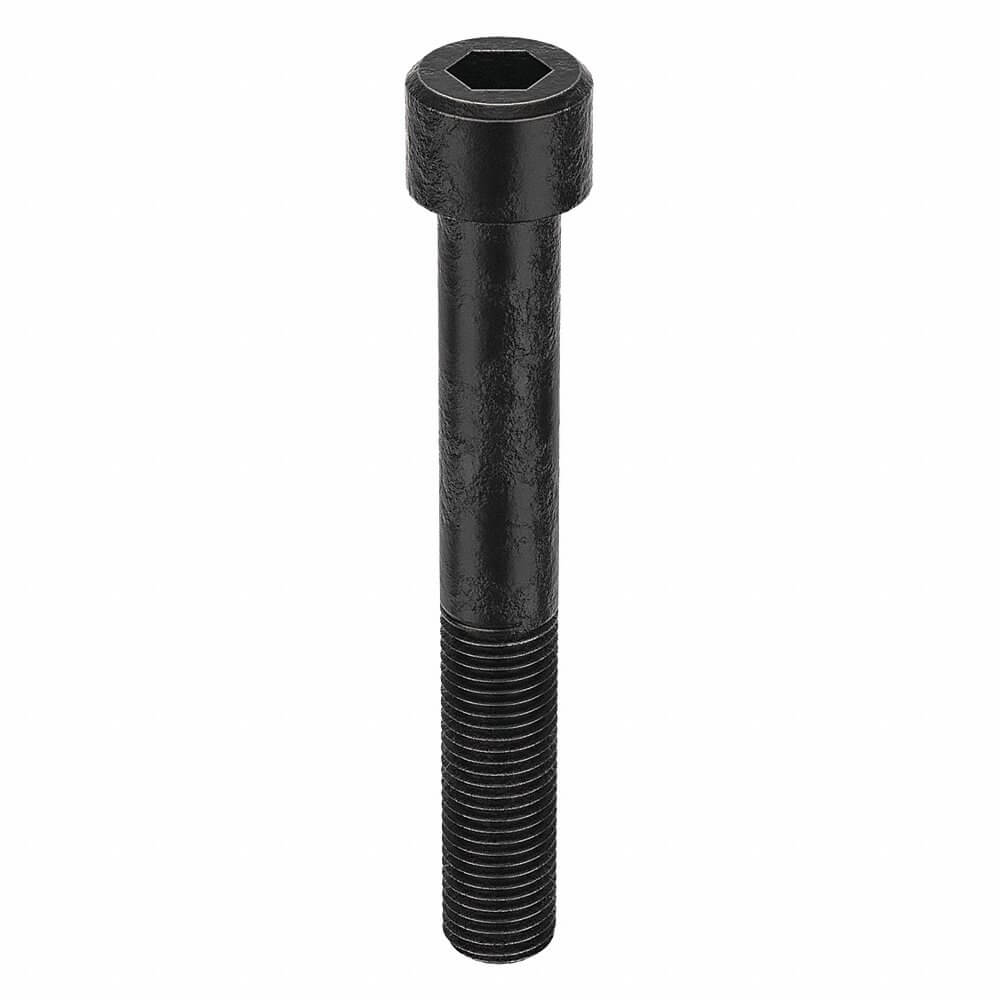

| Combined Material & Grade | Class 12.9 Steel |
|---|---|
| Dimensional Standards | Din 912 |
| Display Qty | 5 |
| Drive Size | 22 mm |
| Finish | Black Oxide |
| Hardness | Rockwell C39-C44 |
| Head Dia. | 45 mm |
| Head Height | 30 mm |
| Length | 220 mm |
| Material | Steel |
| Material Grade/class | Class 12.9 |
| Material Type | Steel |
| Maximum Temperature | 302°F |
|---|---|
| Min. Tensile Strength | 176000 psi |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 100 mm |
| Screw Length | 220 mm |
| System Of Measurement | Metric |
| Tensile Strength | 176000 psi |
| Thread Direction | Right Hand |
| Thread Length | 100 mm |
| Thread Size | M30 x 3.5 |
| Thread Style | Partially Threaded |
| Height | 2.54 |
|---|---|
| Length | 21.01 |
| Width | 16.69 |
| HS Code | 7318158045 |
|---|---|
| Country Of Origin | TW |
| Weight | 7.242300 |
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Min. Tensile Strength | Hardness | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U07000.008.0012 | #2-56 | Fully Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 29.76 | |
| B | U07000.008.0062 | #2-56 | Fully Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 34.59 | |
| C | U07000.008.0075 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 39.27 | |
| D | U07000.008.0087 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 60.15 | |
| E | U07000.008.0100 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 73.53 | |
| F | U07000.009.0075 | #3-48 | Partially Threaded | 5/64" | 0.161" | 0.099" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 27.43 | |
| G | U07000.011.0175 | #4-40 | Partially Threaded | 3/32" | 0.183" | 0.112" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 28.95 |
