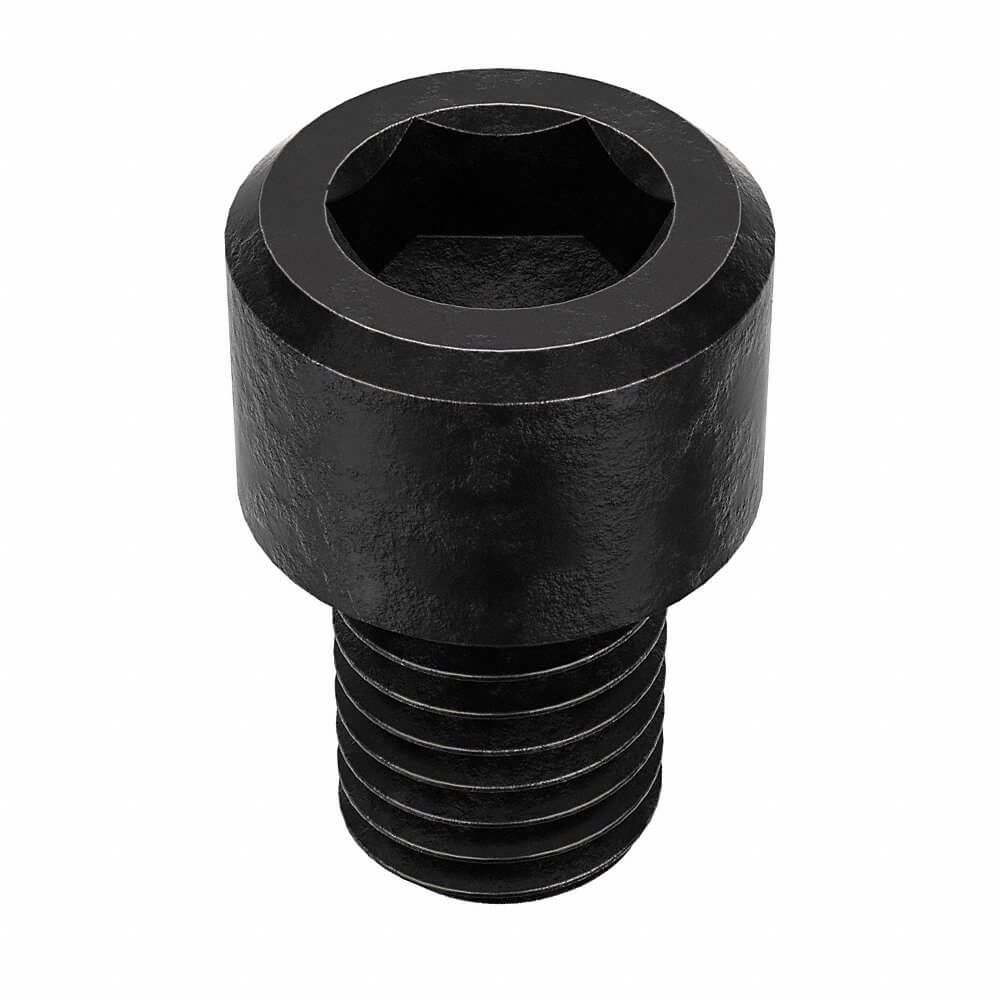

APPROVED VENDOR M07000.120.0016 Metric Socket Head Cap Screw, M12x1.75 Thread Size, Cylindrical, 16 mm Lg., Steel, 50PK
Item: AB7DFW
Model: M07000.120.0016
21 In Stock
Ships within 2 days via
5.00% off
£58.88/pkg. of 50
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Combined Material & Grade | Class 12.9 Steel |
|---|---|
| Dimensional Standards | Din 912 |
| Display Qty | 50 |
| Drive Size | 10 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C39-C44 |
| Head Dia. | 18 mm |
| Head Height | 12 mm |
| Head Type | Standard |
| Length | 16 mm |
| Material | Steel |
| Material Grade/class | Class 12.9 |
| Material Type | Steel |
|---|---|
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 176000 psi |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 16 mm |
| Screw Length | 16 mm |
| System Of Measurement | Metric |
| Tensile Strength | 176000 psi |
| Thread Direction | Right Hand |
| Thread Length | 16 mm |
| Thread Size | M12 x 1.75 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Product Details
Shipping Information
| Height | 3.3 |
|---|---|
| Length | 12.7 |
| Width | 13.97 |
| HS Code | 7318158045 |
|---|---|
| Country Of Origin | TW |
| Weight | 1.488200 |
Related Products
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Min. Tensile Strength | Hardness | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U07000.008.0012 | #2-56 | Fully Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 29.76 | |
| B | U07000.008.0062 | #2-56 | Fully Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 34.59 | |
| C | U07000.008.0075 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 39.27 | |
| D | U07000.008.0087 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 60.15 | |
| E | U07000.008.0100 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 73.53 | |
| F | U07000.009.0075 | #3-48 | Partially Threaded | 5/64" | 0.161" | 0.099" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 27.43 | |
| G | U07000.011.0175 | #4-40 | Partially Threaded | 3/32" | 0.183" | 0.112" | 180000 psi | Rockwell C37-C45 | -50°F to +550°F | 28.95 |
