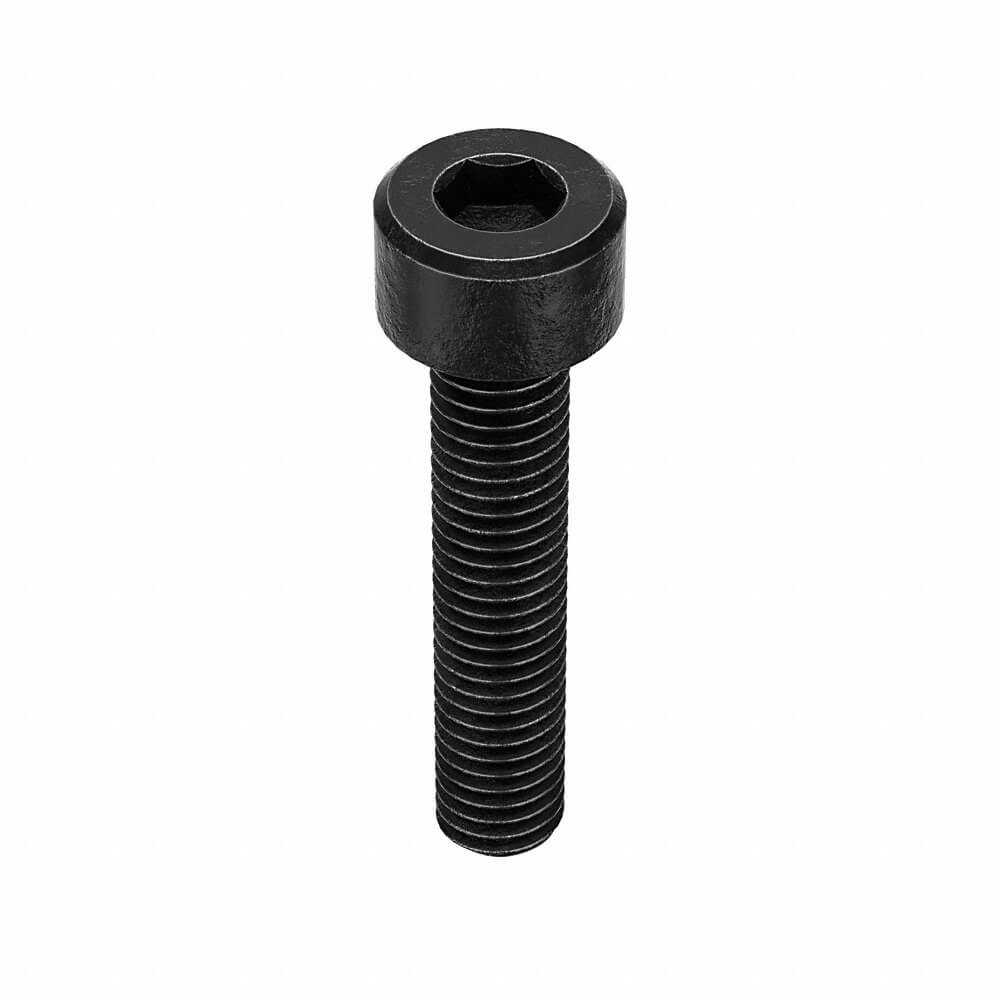

APPROVED VENDOR M07000.050.0025 Metric Socket Head Cap Screw, M5x0.8 Thread Size, Cyl., 25 mm Lg., Blk Oxide, 100PK
Item: AB8NUY
Model: M07000.050.0025
18 In Stock
Ships within 2 days via
5.00% off
£22.86/pkg. of 100
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class 12.9 |
|---|---|
| Combined Material & Grade | Class 12.9 Steel |
| Dimensional Standards | Din 912 |
| Display Qty | 100 |
| Drive Size | 4 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C39-C44 |
| Head Dia. | 8.5 mm |
| Head Height | 5 mm |
| Head Type | Standard |
| Length | 25 mm |
| Material | Steel |
| Material Grade/class | Class 12.9 |
|---|---|
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 176000 psi |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 25 mm |
| Screw Length | 25 mm |
| System Of Measurement | Metric |
| Tensile Strength | 176000 psi |
| Thread Direction | Right Hand |
| Thread Length | 25 mm |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Product Details
Metric Socket Head Cap Screw
Shipping Information
| height | 2.54 |
|---|---|
| length | 21.01 |
| width | 16.69 |
| hs code | 7318156040 |
|---|---|
| country of origin | TW |
| weight | 0.474300 |
