APPROVED VENDOR AN960-C1416 Mil Spec Washer, 7/8 In Fits Bolt Size, Flat, 57/64 In I.D., Pln, 0.08 In to 0.1 In Thk., 10PK
Item: AB9KJJ
Model: AN960-C1416
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹48.680000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Dimensional Standards | An960, Qq-P-35 |
|---|---|
| Finish | Plain |
| Fits Bolt Sizes | 7/8" |
| Flat Washer Type | Mil Spec |
| For Screw Size | 7/8" |
| Grade | Grade 18-8 |
| Hardness | Rockwell B80 |
| Inside Dia. | 57/64" |
| Inside Diameter | 0.89" |
| Inside Diameter Tolerance | -0.01" to +0.01" |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Material Quality Standards | Astm A582 |
|---|---|
| Maximum Thickness | 0.1" |
| Minimum Thickness | 2/25" |
| Outside Dia. | 1 1/2" |
| Outside Diameter Tolerance | -0.01" to +0.01" |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Dyes, Food And Nitric Acid |
| Rockwell Hardness | B83 |
| System Of Measurement | Imperial |
| Tensile Strength | 90000 psi |
| Thickness | 0.08" to 0.1" |
| Thickness Tolerance | -0.014", +0.005" |
| Washer Type | Mil Spec Flat Washer |
Product Details
Mil Spec Washer
Shipping Information
| height | 3.05 |
|---|---|
| length | 7.62 |
| width | 4.32 |
| hs code | 7318220000 |
|---|---|
| country of origin | US |
| weight | 0.126000 |
Related Products
| Style | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Tensile Strength | Resistance Properties | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | MS15795-801 | #1 | 0.078" | 0.156" | 0.016" to 0.025" | -0.014", +0.005" | Rockwell B80 | 90000 psi | Chemical Resistant, Corrosion Resistant, Dyes, Food And Nitric Acid | 8.91 | |

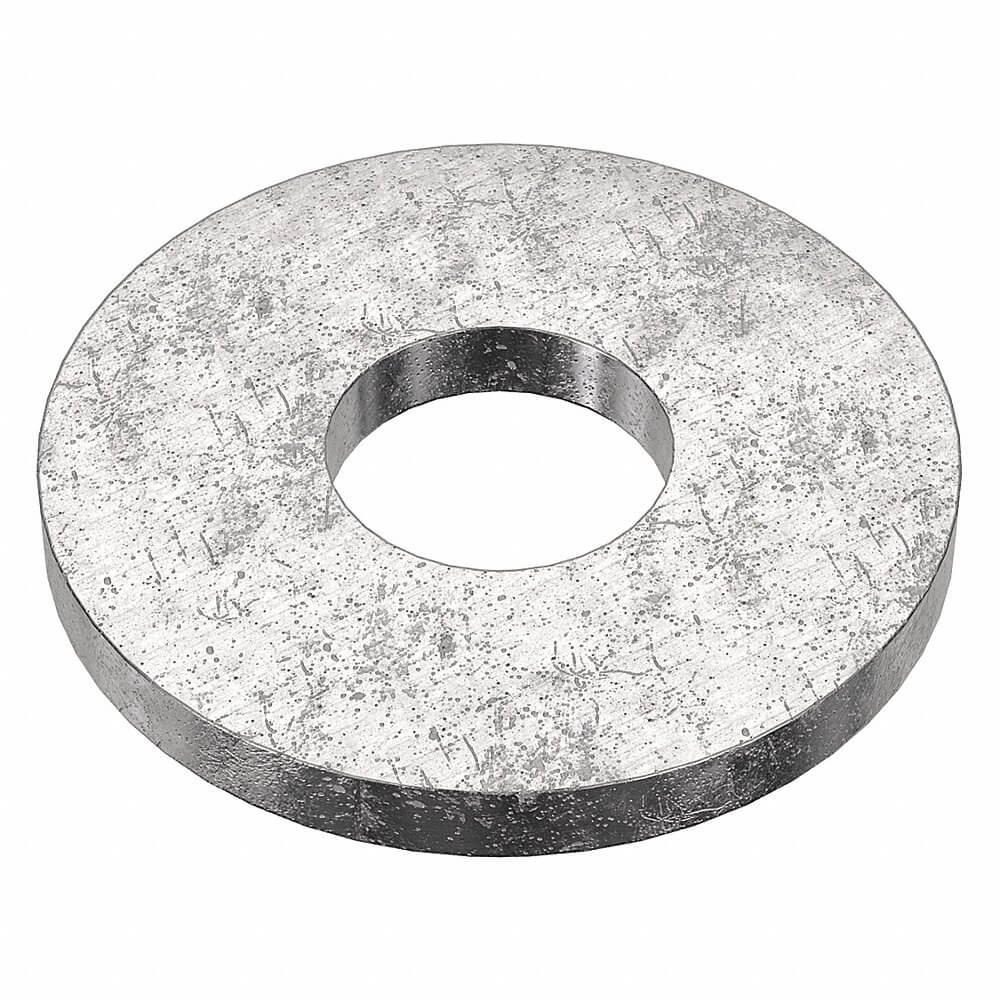

| B | MS15795-802 | #2 | 0.094" | 1/4" | 0.016" to 0.025" | -0.014", +0.005" | Rockwell B80 | 90000 psi | Chemical Resistant, Corrosion Resistant, Dyes, Food And Nitric Acid | 9.04 | |

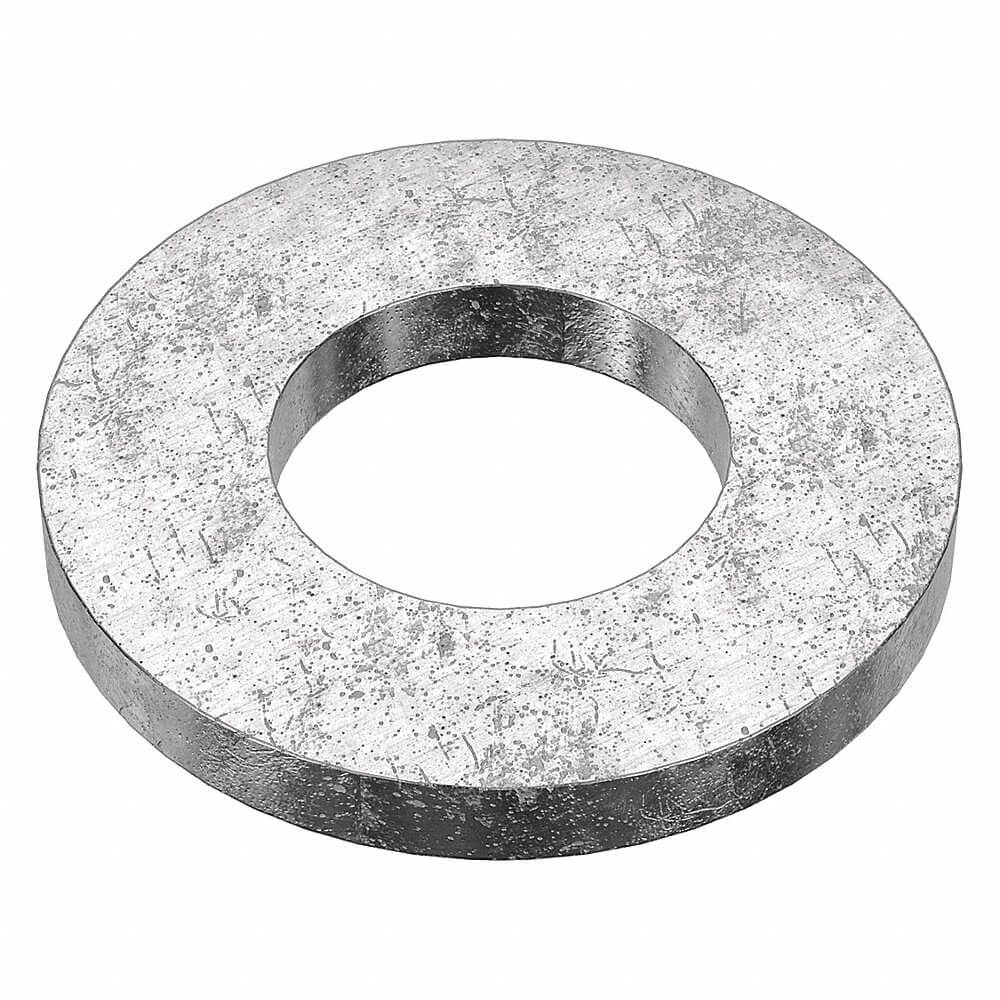

| C | MS15795-803 | #4 | 1/8" | 1/4" | 0.017" to 0.028" | -0.014", +0.005" | Rockwell B80 | 90000 psi | Chemical Resistant, Corrosion Resistant, Dyes, Food And Nitric Acid | 9.51 | |
| D | MS15795-804 | #4 | 1/8" | 0.312" | 0.032" to 0.04" | -0.014", +0.005" | Rockwell B80 | 90000 psi | Chemical Resistant, Corrosion Resistant, Dyes, Food And Nitric Acid | 11.94 | |
| E | MS15795-805 | #6 | 5/32" | 0.312" | 0.027" to 0.048" | -0.014", +0.005" | Rockwell B80 | 90000 psi | Chemical Resistant, Corrosion Resistant, Dyes, Food And Nitric Acid | 11.83 | |

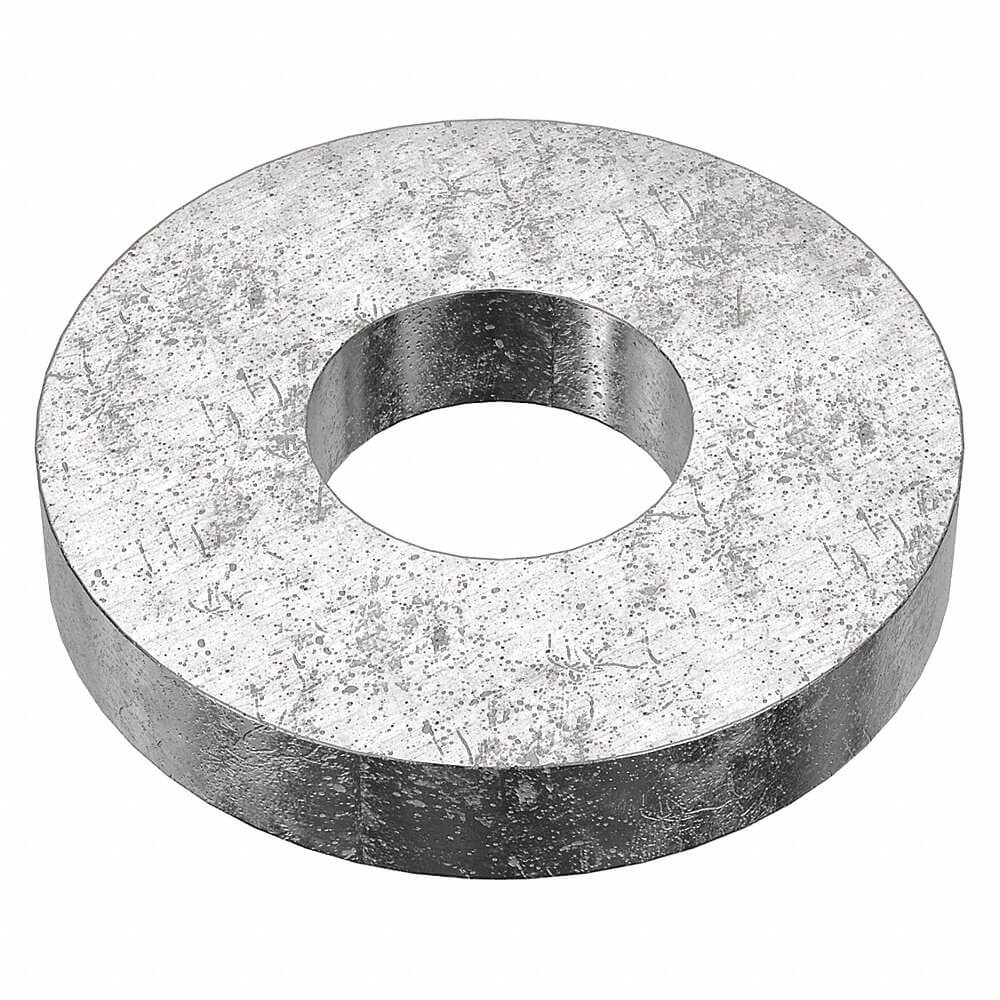

| F | MS15795-806 | #6 | 5/32" | 3/8" | 0.036" to 0.065" | -0.014", +0.005" | Rockwell B80 | 90000 psi | Chemical Resistant, Corrosion Resistant, Dyes, Food And Nitric Acid | 15.86 | |

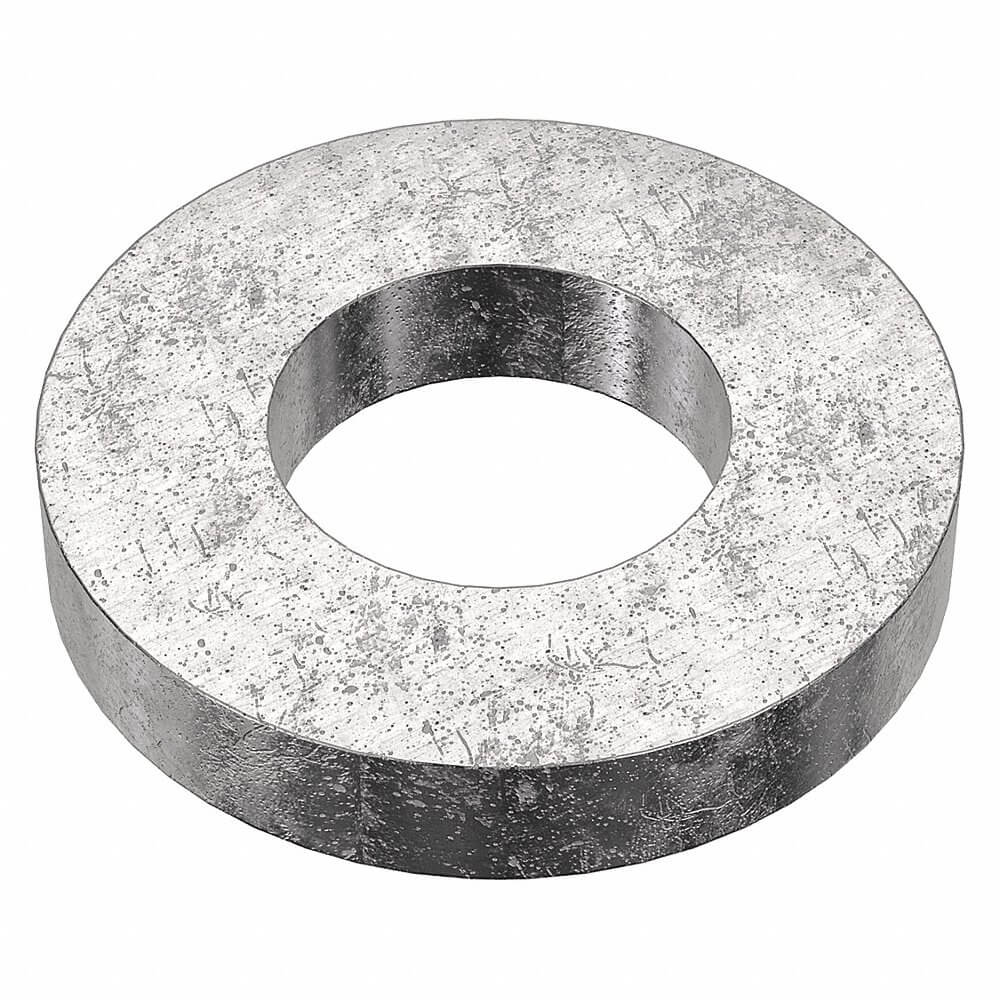

| G | MS15795-807 | #8 | 0.187" | 3/8" | 0.036" to 0.065" | -0.014", +0.005" | Rockwell B80 | 90000 psi | Chemical Resistant, Corrosion Resistant, Dyes, Food And Nitric Acid | 53.29 |
