APPROVED VENDOR 6DZA2 SAE Washer, 3/8 In Fits Bolt Size, 13/32 In I.D., 13/16 In O.D., 1/16 In Thk., -0.015 to +0.015 In Thk. Tol., Blk Oxide, Steel, 100PK
Item: AE8LZL
Model: 6DZA2
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
£5.600000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Dimensional Standards | Asme B18.22.1 Type A Narrow, Sae Standard |
|---|---|
| Finish | Black Oxide |
| Fits Bolt Sizes | 3/8" |
| Flat Washer Type | SAE |
| For Screw Size | 3/8" |
| Hardness | Rockwell C38 |
| Inside Dia. | 13/32" |
| Inside Diameter | 0.406" |
| Material | Steel |
| Material Grade/class | Grade 2 |
|---|---|
| Maximum Thickness | 0.063" |
| Minimum Thickness | 0.063" |
| Outside Dia. | 13/16" |
| Rockwell Hardness | 38HRC |
| System Of Measurement | Imperial |
| Thickness | 1/16" |
| Thickness Tolerance | -0.015" to +0.015" |
| Washer Type | SAE Washer |
Product Details
SAE Washer
Shipping Information
| height | 2.54 |
|---|---|
| length | 15.24 |
| width | 10.16 |
| hs code | 7318220000 |
|---|---|
| country of origin | CN |
| weight | 0.306000 |
Related Products
| Style | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Color | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

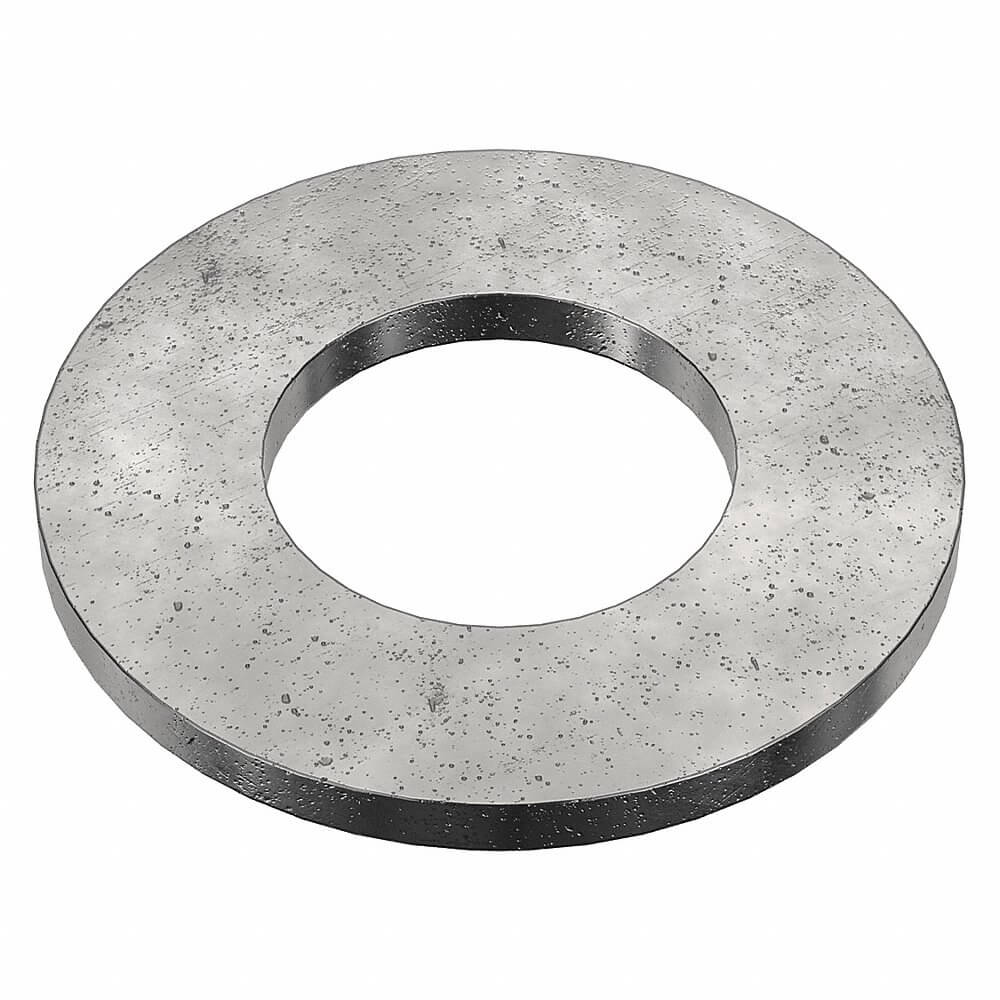

| A | U38200.043.0001 | 7/16" | 15/32" | 59/64" | 0.065" | 0.051" to 0.08" | - | - | - | 4.47 | |

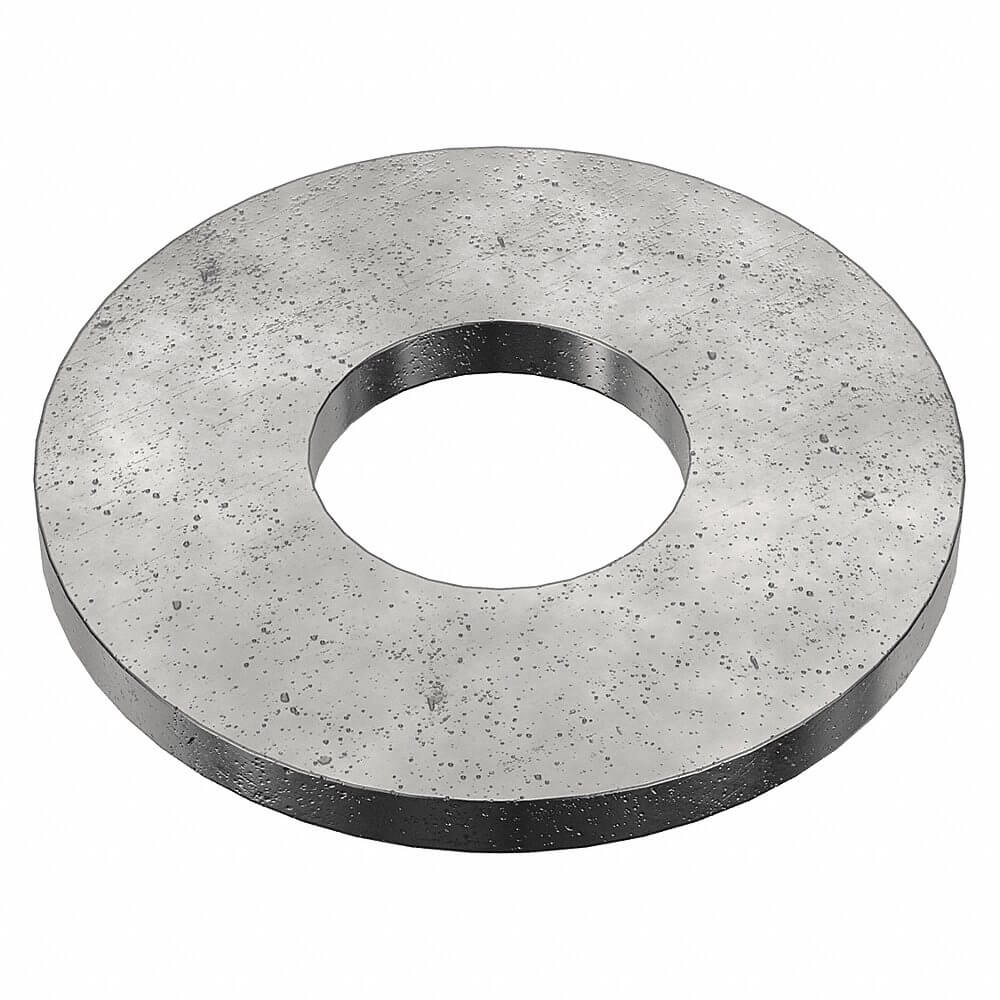

| B | U38200.050.0001 | 1/2" | 17/32" | 1 1/16" | 0.095" | 0.074" to 0.121" | - | - | - | 8.39 | |

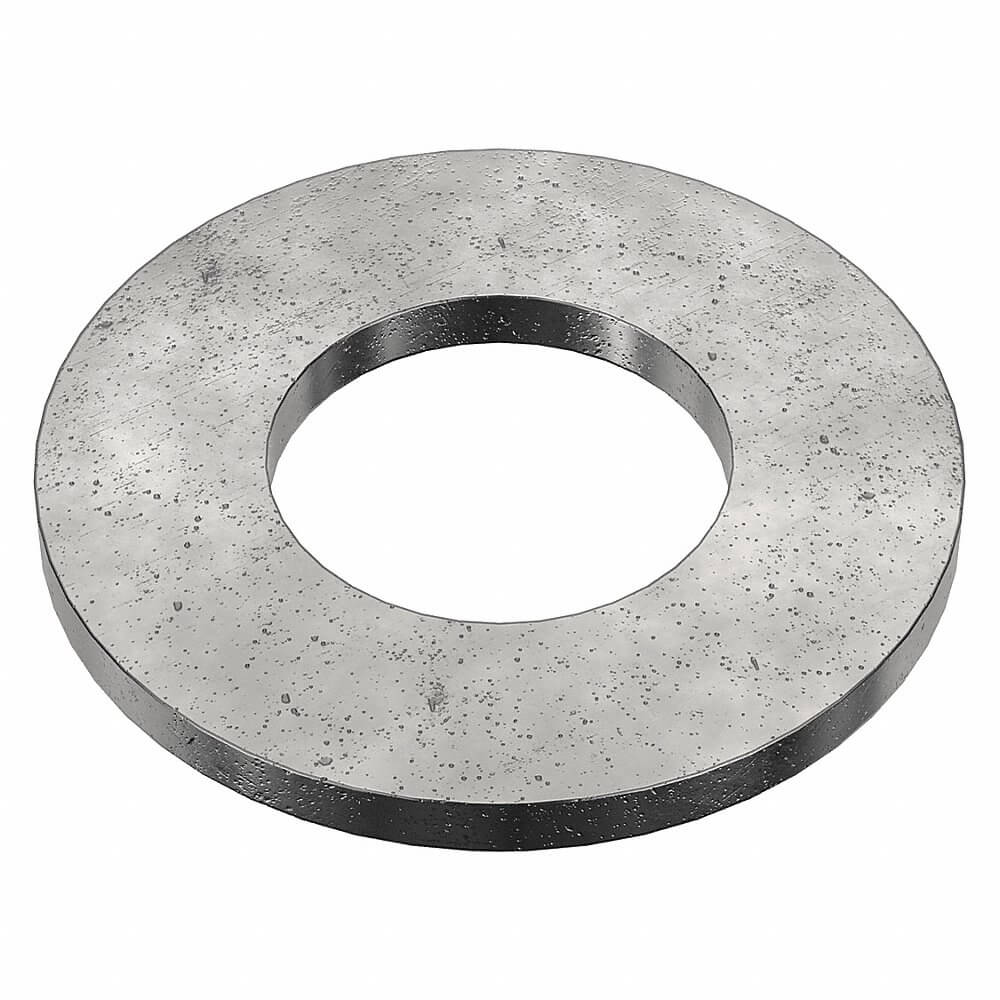

| C | U38200.062.0001 | 5/8" | 21/32" | 1 5/16" | 0.095" | 0.074" to 0.121" | - | - | - | 5.80 | |

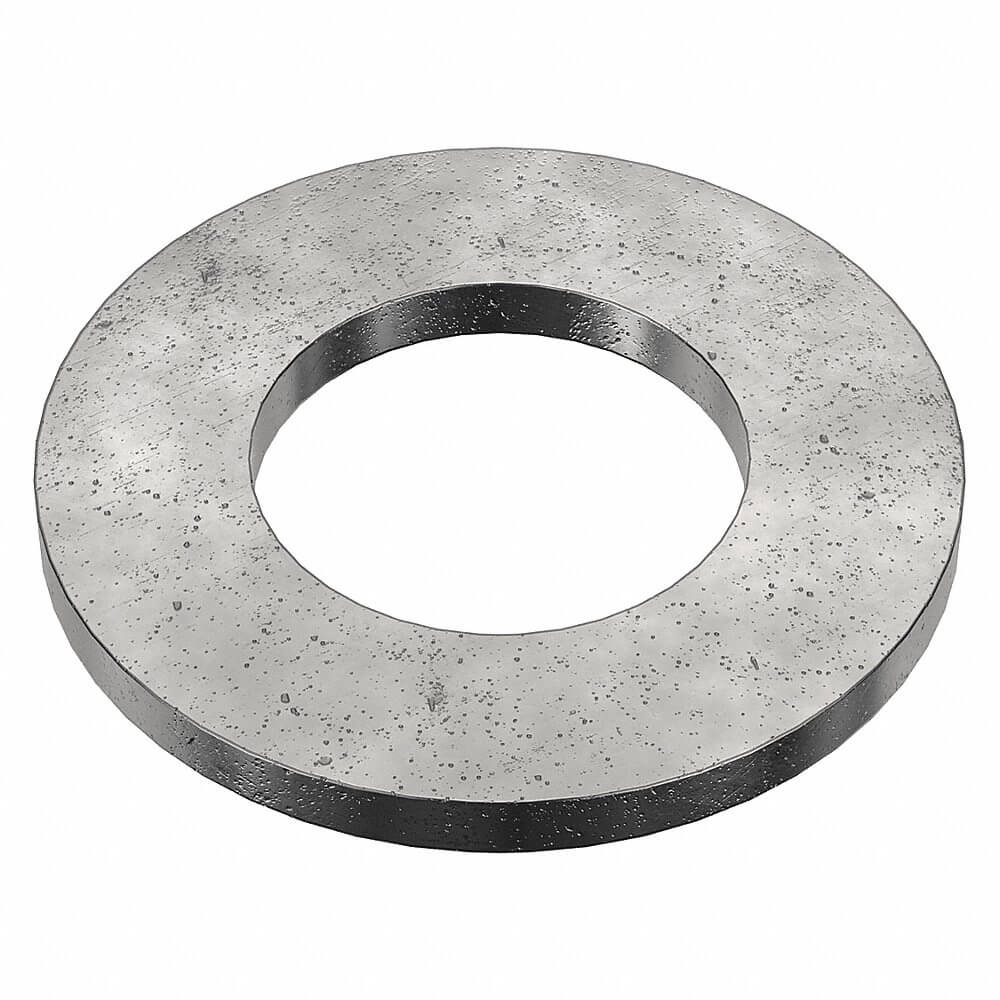

| D | U38200.087.0001 | 7/8" | 15/16" | 1 3/4" | 0.134" | 0.108" to 0.16" | - | - | - | 5.04 | |

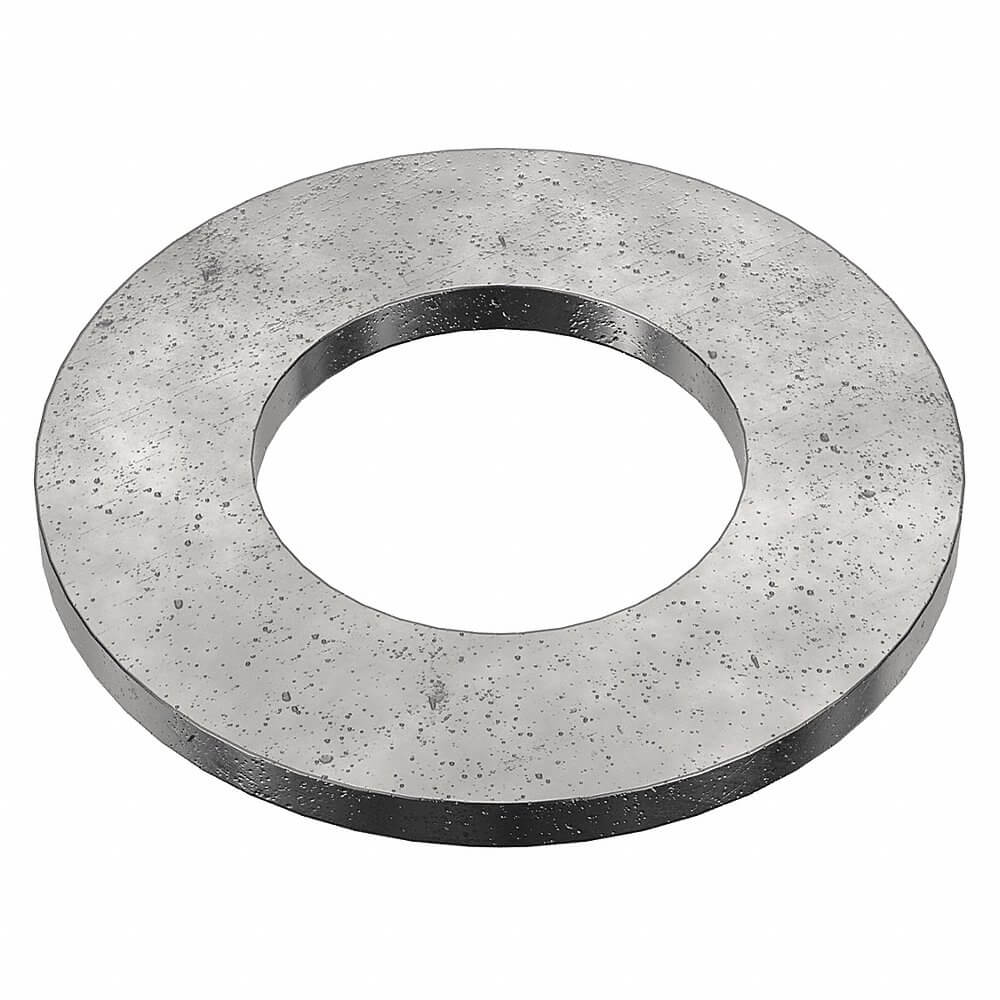

| E | U38200.100.0001 | 1" | 1.063" | 2" | 0.134" | 0.108" to 0.16" | - | - | - | 3.89 | |
| F | U38200.137.0001 | 1 3/8" | 1 1/2" | 2 3/4" | 0.156" | 0.136" to 0.192" | - | - | - | 7.54 | |
| G | U38200.056.0001 | 9/16" | 19/32" | 1.156" | 0.095" | 0.074" to 0.121" | - | - | -58°F to +302°F | 5.59 |
