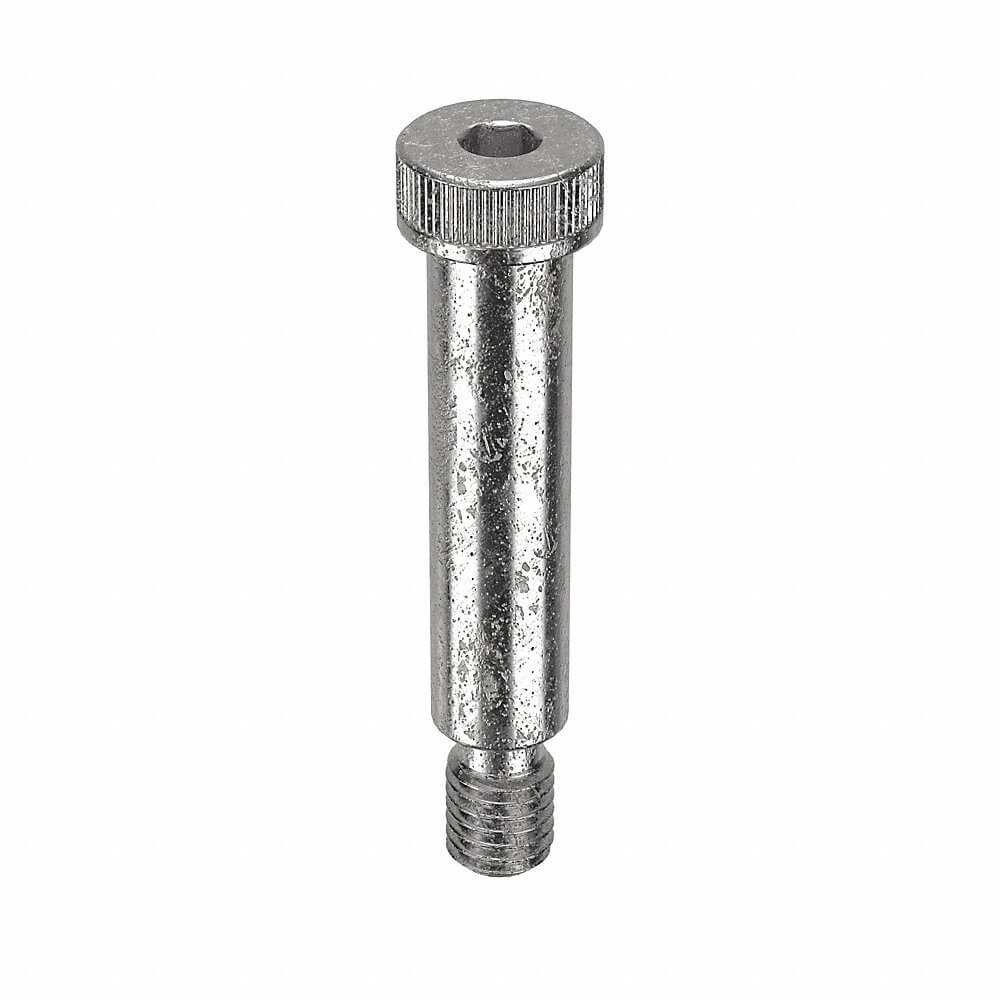

APPROVED VENDOR 2DMT4 Shoulder Screw, 1/2 In - 13 Thread Size, 2 1/2 In Shoulder Lg., 3/8 In Head Ht., Std, 2PK
Item: AB9KBB
Model: 2DMT4
29 In Stock
Ships within 2 days via
5.00% off
£129.18/pkg. of 2
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Dimensional Standards | ASME B18.3 |
|---|---|
| Display Qty | 2 |
| Drive Size | 5/16" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B55 |
| Head Dia. | 7/8" |
| Head Height | 3/8" |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 70000 psi |
|---|---|
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shoulder Dia. | 5/8" |
| Shoulder Diameter Tolerance | 0.002" to 0.004" |
| Shoulder Length | 2 1/2" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 70000 psi |
| Thread Fit | 3A |
| Thread Length | 3/4" |
| Thread Size | 1/2"-13 |
| Type | Standard Shoulder Screw |
Product Details
Shipping Information
| Height | 2.29 |
|---|---|
| Length | 9.4 |
| Width | 4.57 |
| HS Code | 7318158030 |
|---|---|
| Country Of Origin | US |
| Weight | 0.279000 |
Related Products
| Style | Model | Thread Size | Shoulder Length | Shoulder Dia. | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Drive Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PAT4410 | #4-40 | 1/8" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 20.44 | |
| B | PAT4411 | #4-40 | 3/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 23.49 | |
| C | PAT4412 | #4-40 | 1/4" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 24.01 | |
| B | PAT4413 | #4-40 | 5/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 24.20 | |
| D | PAT4414 | #4-40 | 3/8" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 24.27 | |
| B | PAT6906SS | #4-40 | 7/16" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 26.11 | |
| E | PAT6907SS | #4-40 | 1/2" | 1/8" | 0" to 0.002" | 1/4" | 1/8" | ASME/ANSI B18.3.3 | 5/64" | 23.73 |
