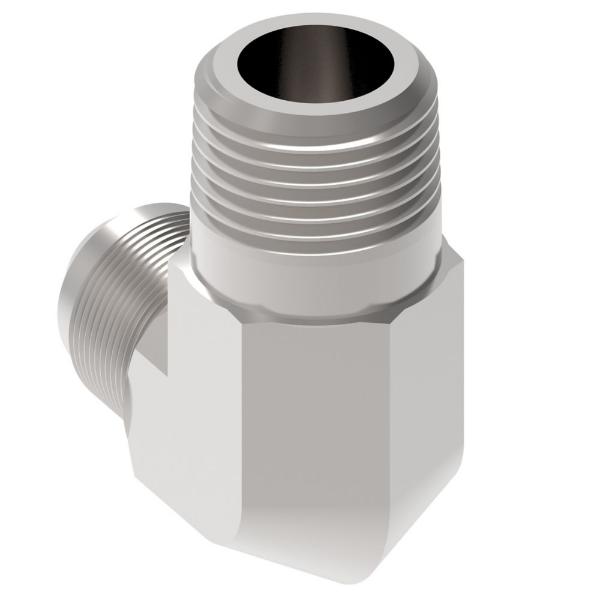

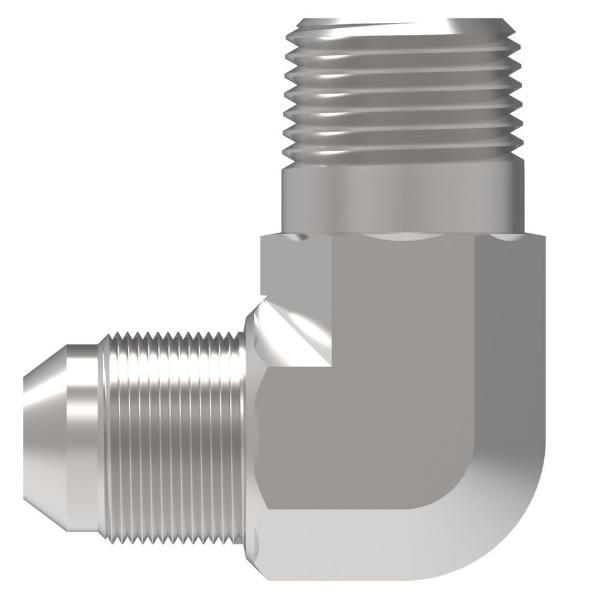

AEROQUIP 2024-12-16S Elbow, 90 Deg., 3/4 Inch x 1 Inch Size, Male x Male, NPTF x JIC, Rigid
Item: AD9XYG
Model: 2024-12-16S
29 In Stock
Ships within 2 days via
5.00% off
£40.46/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Angle | 90° |
|---|---|
| Application | Marine/Military, Chemical Processing, Pulp And Paper Industries, Food And Beverage Processing, Off-Shore Drilling |
| Compatible Pipe Size | 3/4" |
| Crimpable | No |
| Drop Dimension | 1.81 |
| End Gender 1 | Male |
| End Gender 2 | Male |
| End Size 1 | 3/4" |
| End Size 2 | 1" |
| End Type 1 | NPTF |
| End Type 2 | SAE 37 |
| Finish | Dura Kote |
| Fitting Movement | Rigid |
| Fitting Shape | 90° Elbow |
| For Hose Type | Hydraulic |
| Height | 2 11/25" |
| Hex Size 1 | 1.26" |
| Hose Fitting A Connection Type | NPTF |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 3/4" |
| Hose Fitting B Connection Type | Jic |
| Hose Fitting B Gender | Male |
|---|---|
| Hose Fitting B Size | 1" |
| Includes O-ring | No |
| Inside Dia. | 0.851" |
| Item Type | NPTF Male/SAE 37掳 Male 90掳 Elbow Adapter |
| Length | 2.41" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 400°F |
| Max. Working Pressure @ 70 F | 3500 psi |
| Min. Operating Temp. | -65°F |
| Overall Length | 1.78" |
| Standard Logo | sae.jpg |
| Thread Size | 3/4"-14 |
| Thread Size 1 | 3/4"-14 |
| Thread Size 2 | 1 5/16"-12 |
| Warranty | Hydraulics Warranty |
| Width | 1.26" |
| Working Pressure | 3500 psi |
| standard | SAE/JIC 37° |
Product Details
Shipping Information
| Height | 6.2 |
|---|---|
| Length | 6.12 |
| Width | 3.2 |
| HS Code | 7307995045 |
|---|---|
| Country Of Origin | US |
| Weight | 0.310500 |
Related Products
| Style | Model | Hose Fitting A Size | Hose Fitting B Size | Overall Length | Fitting Shape | Fitting Movement | Crimpable | Includes O-ring | Hose Fitting A Gender | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2024-12-12S | 3/4" | 3/4" | 1.59" | 90° Elbow | Rigid | No | No | Male | 35.62 | |
| A | 2024-16-16S | 1" | 1" | 1.97" | 90° Elbow | Rigid | No | No | Male | 52.53 | |
| A | 2024-4-5S | 1/4" | 5/16" | 1.09" | 90° Elbow | Rigid | No | No | Male | 24.28 | |
| A | 2024-6-4S | 3/8" | 1/4" | 1.22" | 90° Elbow | Rigid | No | No | Male | 16.84 | |
| A | 2024-8-10S | 1/2" | 5/8" | 1.47" | 90° Elbow | Rigid | No | No | Male | 21.22 | |
| A | 2024-8-6S | 1/2" | 3/8" | 1.47" | 90° Elbow | Rigid | No | No | Male | 26.40 | |
| A | 2024-8-12S | 1/2" | 3/4" | 1.59" | 90° Elbow | Rigid | No | No | Male | 26.36 |
