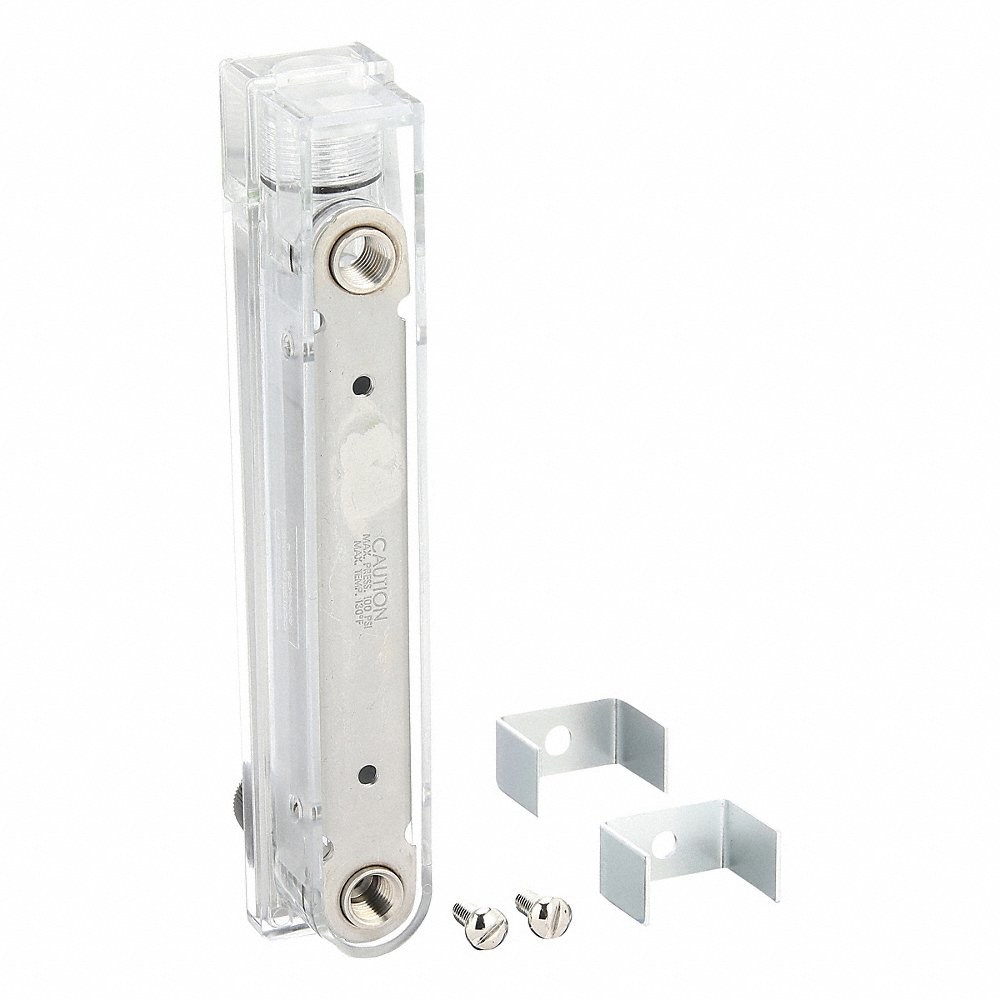

DWYER INSTRUMENTS RMB-85-SSV Flowmeter, Variable Area, Panel Mount, Vertical, Gallons, 130 Deg F, FNPT
Item: CP4LMZ
Model: RMB-85-SSV
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Accuracy | 3% |
|---|---|
| Body Material | Polycarbonate |
| Cable Length | Not Applicable |
| Compatible Flow Material | Water |
| Compatible Media Types | Water |
| Connection Size | 1/4" |
| Connection Type | FNPT |
| Display Type | Not Applicable |
| Flow Range | 10-100 GPH |
| Flow Rate - Maximum | 100 GPH |
| Flow Rate - Minimum | 10 GPH |
| Flow Rate Range | 10-100 GPH |
| Flowmeter Type | Variable Area |
| For Pipe Size | 1/4" |
| Housing Material | Polycarbonate |
| Includes Flow Rate Adjustment Knob | Yes |
| Includes Pressure Gauge | Not Applicable |
| Max. Flow Rate | 100 GPH |
| Max. Frequency | Not Applicable |
| Max. Media Temp. | 130°F |
| Max. Operating Pressure | 100 psi |
| Media Temp. Range | 130°F |
| Media Temperature - Minimum | Not Applicable |
| Media Type | Water |
|---|---|
| Min. Flow Rate | 10 GPH |
| Mounting Location | Panel Mount |
| Mounting Orientation | Vertical |
| O-ring Material | Buna N, Neoprene |
| Output Type | Not Applicable |
| Overall Height | 8 4/5" |
| Overall Length | 3 3/5" |
| Overall Width | 1 1/2" |
| Process Connection | 1/4" FNPT |
| Process Connection Size | 1/4" |
| Process Connection Type | FNPT |
| Product Type | Variable Area Flowmeter |
| Pulse Rate | Not Applicable |
| Rotor Material | Not Applicable |
| Seal Material | Not Applicable |
| Shaft Material | Not Applicable |
| Standard Logo | rohs.png |
| Unit Of Measure | Gal. |
| Viscosity - Maximum | Not Applicable |
| Wetted Material | Aluminum, Buna N, Glass, Nickel Copper Alloy, Neoprene, Polycarbonate, Stainless Steel, Tungsten Carbide |
| Wetted Material Grade | Grade K500 |
| standard | EU DIRECTIVE 2011/65/EU, ROHS II COMPLIANT |
Product Details
Flowmeter
Shipping Information
| height | 22.35 |
|---|---|
| length | 9.14 |
| width | 3.81 |
| country of origin | US |
|---|---|
| weight | 0.414000 |
